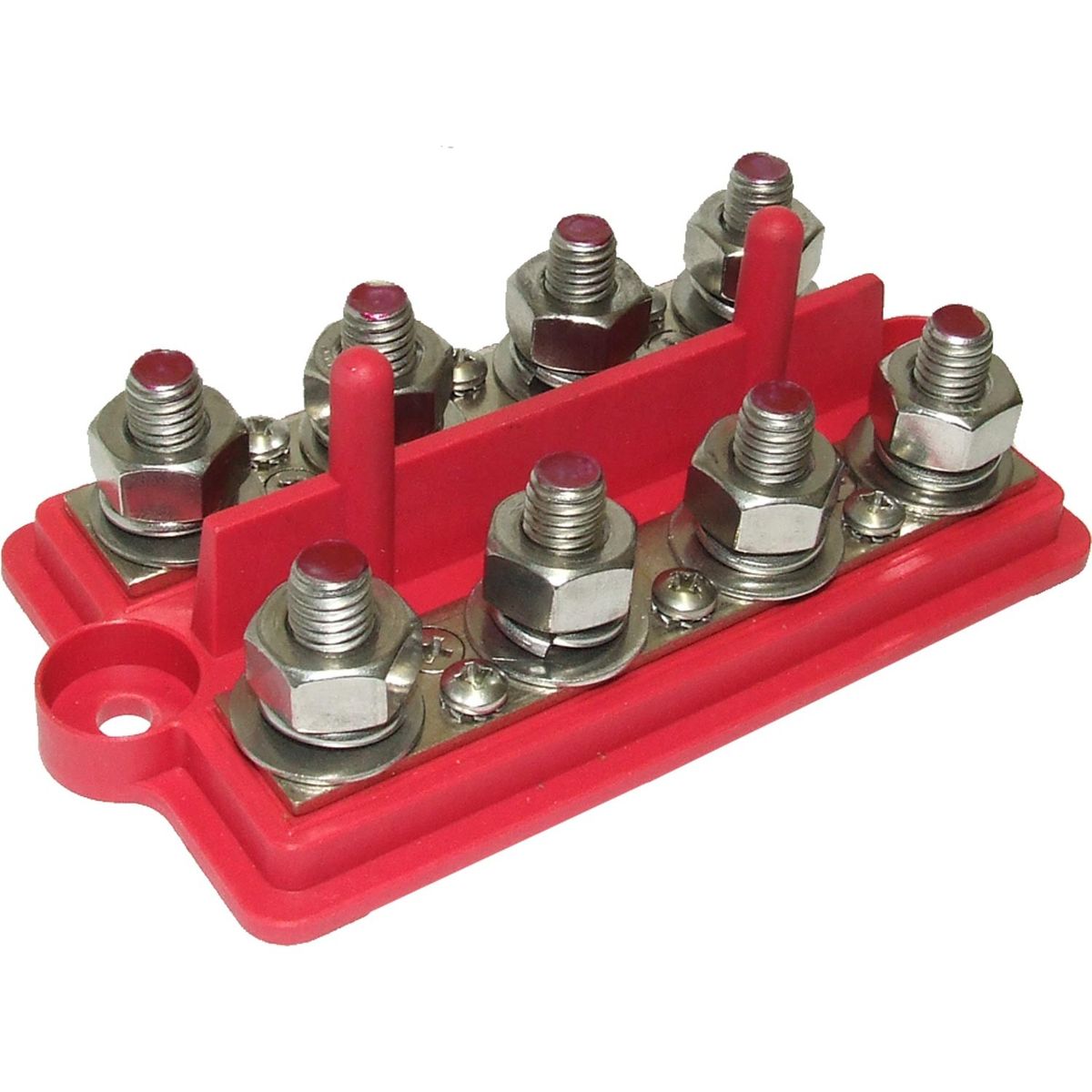

VTE Red 250A Power Distribution Busbar (8 x 3/8" Posts) 729224

VTE red single pole busbar for DC systems up to 48v dc.
Max load 250amps. Features two rows of four 3/8" post terminals with 3 additional 20amp screw connectors on each row.
Stainless posts, screws and hex nuts. Mounting hole centres 124.5mm. Screw connector diameters 4mm.
Glass filled red base. Ideal for positive circuit uses.
Order cover 729229 to meet ISO standards for protection of continuously energised terminals.
