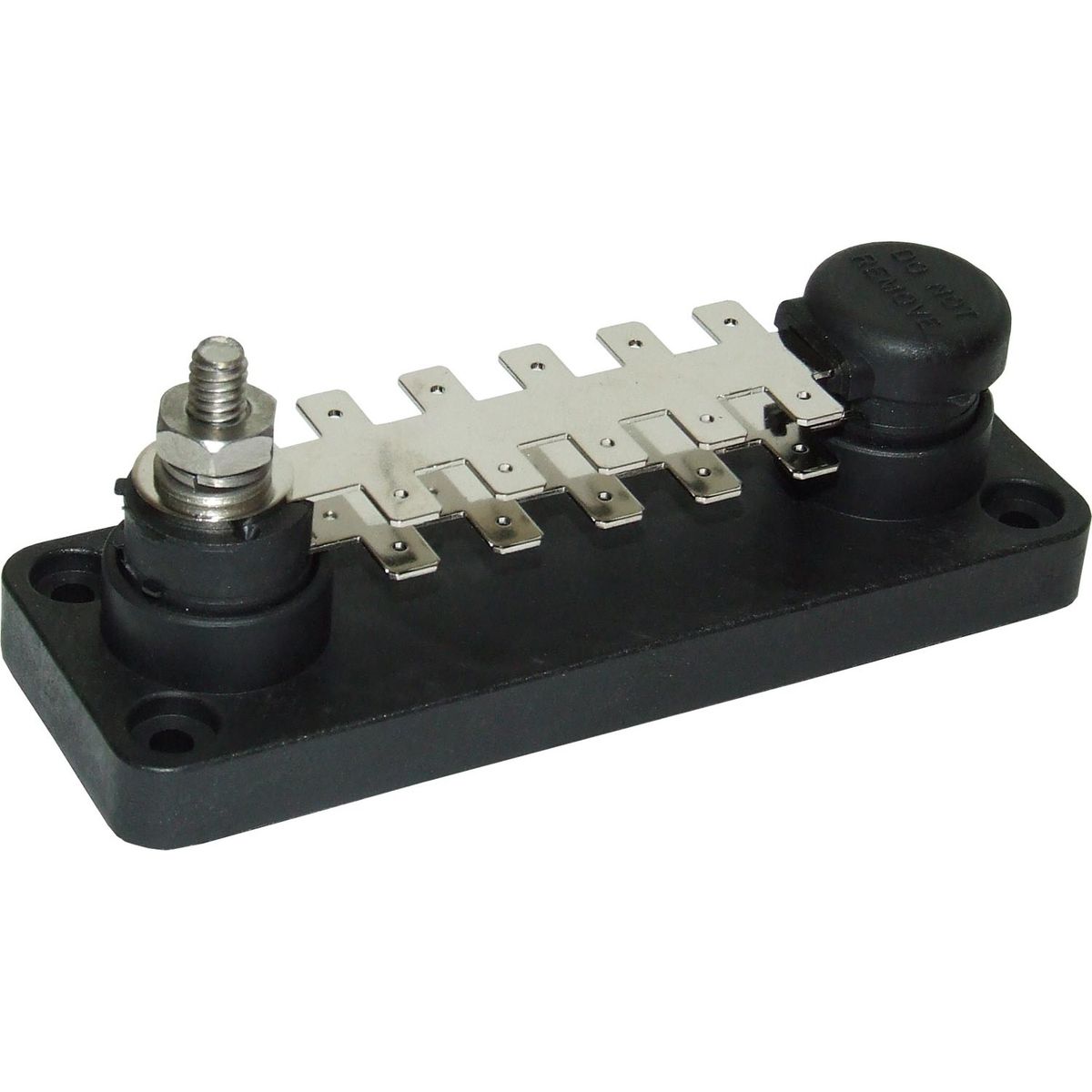

VTE Black Power Distribution Busbar (1 x 1/4" Post & 20 x 6.3mm Tabs) 729283

VTE black 20 point tab type busbar / distribution point
For "push-on" type quick disconnect terminals.
These "push-on" type terminal type busbar power distribution points greatly increase production speed and reduce labour costs. They provide a neat and simple solution for negative or positive cable distribution.

- Max amperage: 55A @ 12V per tier, 20A per connection.

- Max voltage: 48V.

- Glass filled black nylon base, ideal for negative circuits.

- Single 1/4" (6mm) stainless connection post with nuts.

- Single nickel plated brass tab plate features twenty (20) 6.3mm male spade tabs.

Order cover kit 729287 or 729289 to meet ISO standards for protection of continuously energised terminals.
The range of tabbed busbar distribution points are available in 10, 20 or 30 points.
