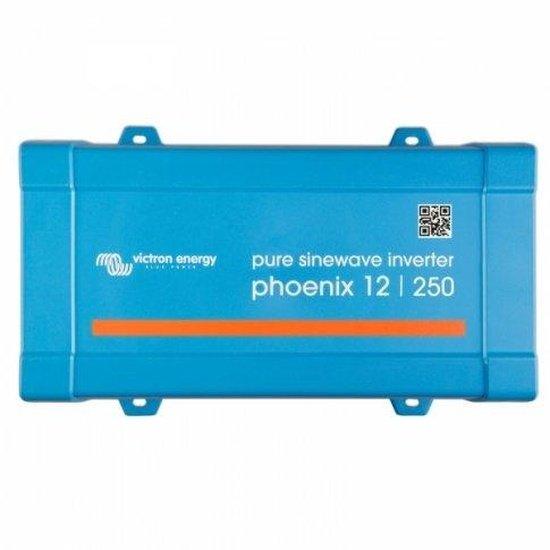

Victron Phoenix Inverter 12/250 VE.Direct Pure Sine
Model PIN122510400 | 12V DC to 230V AC Pure Sine Wave Power
The Victron Phoenix Inverter 12/250 VE.Direct (MPN: PIN122510400) is a professional-grade pure sine wave inverter designed to convert 12V DC battery power into clean, stable 230V AC electricity. This compact and reliable unit is ideal for powering sensitive electronics and small appliances in a variety of mobile, off-grid, and backup power applications across the UK.
Engineered by Victron Energy, a trusted name in power electronics, the Phoenix 12/250 features a robust toroidal transformer topology, ensuring high efficiency and the ability to handle demanding start-up loads. Its integrated VE.Direct communication port allows for advanced monitoring and configuration via optional accessories, providing users with precise control over their power system.
PURE SINE WAVE: Delivers clean and stable AC power, essential for the safe operation of sensitive electronic equipment.
Key Features
| ▶ Pure Sine Wave Output — Ensures compatibility with sensitive electronics. |
| ▶ VE.Direct Port — For monitoring and configuration via optional accessories. |
| ▶ ECO Mode — Reduces idle power consumption by switching to standby when load is low. |
| ▶ High Peak Power (400W) — Handles demanding start-up loads from various devices. |
| ▶ Configurable Alarms — Customise low battery voltage alarms and cut-off levels. |
| ▶ Robust Topology — Full-bridge plus toroidal transformer for proven reliability. |
Technical Specifications
| Parameter | Value |
|---|---|
| Input Voltage Range | 9.2 - 17V DC |
| Output Voltage | 230V AC ± 3% |
| Continuous Power (25°C) | 250VA / 200W |
| Peak Power | 400W |
| Max. Efficiency | 87% |
| Zero-Load Power (ECO Mode) | 0.8W |
| Dimensions (H x W x D) | 86 x 165 x 260 mm |
| Weight | 2.4 kg |
Operating & Power Guidance
The Victron Phoenix Inverter 12/250 provides a true sine wave output, which is crucial for powering sensitive electronics without risk of damage or malfunction. Unlike modified sine wave inverters, this unit ensures your devices receive power identical to grid electricity.
Its ECO mode is a key feature for energy conservation, automatically switching the inverter to standby when the load drops below a preset value (e.g., 15W). It periodically checks for a load and reactivates when needed, significantly reducing battery drain during periods of low power demand.

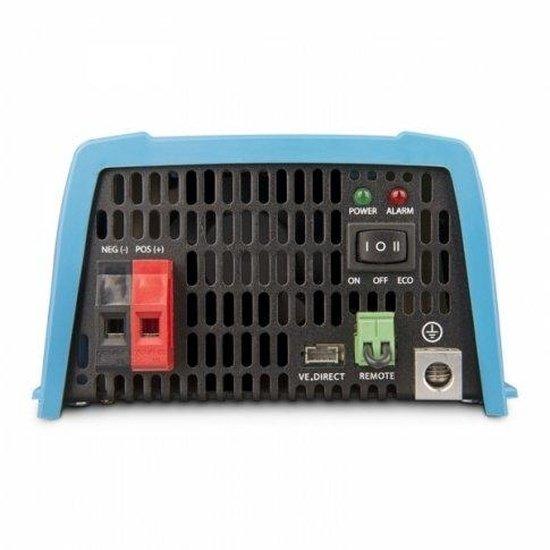

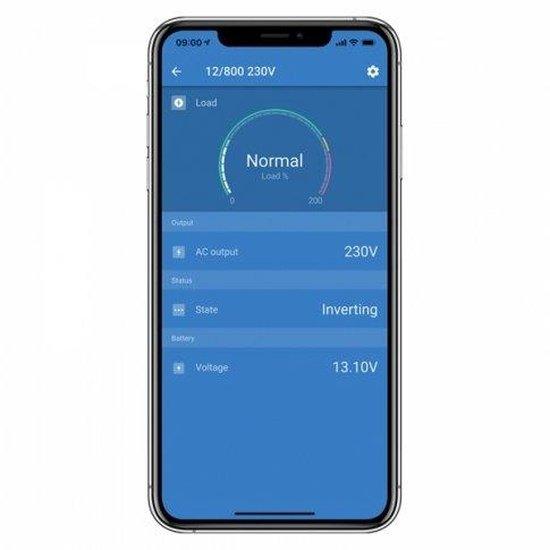

The VE.Direct communication port offers advanced control. By connecting an optional VE.Direct to USB interface cable or a VE.Direct Bluetooth Smart dongle, you can monitor input/output voltage, load percentage, and alarms, as well as configure various settings using the VictronConnect app on a computer or smartphone.
Typical Applications
| Application Area | Description |
|---|---|
| Mobile & Recreational | Ideal for caravans, motorhomes, boats, and campervans to power small domestic loads. |
| Off-Grid Systems | Provides reliable AC power for small solar and battery-based systems in remote locations. |
| Backup Power | Keeps essential devices running during power outages from a 12V battery bank. |
| Sensitive Electronics | Safely powers laptops, TVs, LED lighting, and other sensitive equipment. |
Built-In Protection Functions
The Victron Phoenix Inverter 12/250 is equipped with multiple protection features to ensure safe and reliable operation. These include safeguards against short circuits, overload conditions, and overheating (with automatic restart once a safe temperature is reached). It also features low and high battery voltage protection, with configurable alarm and cut-off levels to prevent battery damage.
Cross Reference & Part Numbers
| Victron Part Number (UK) | PIN122510400 |
| Victron Part Number (Schuko) | PIN122510200 |
| Victron Part Number (IEC) | PIN122510500 |
Common Questions
What does 'Pure Sine Wave' mean for my devices?
A pure sine wave output replicates the AC power supplied by the national grid. This ensures that sensitive electronics, such as laptops, medical equipment, and audio systems, operate correctly and without damage or interference, unlike less refined modified sine wave inverters.
How do I monitor and configure this inverter?
The Victron Phoenix Inverter 12/250 features a VE.Direct communication port. To monitor and configure settings, you will need an optional VE.Direct to USB interface cable for a computer or a VE.Direct Bluetooth Smart dongle for smartphone/tablet connectivity via the VictronConnect app.
What types of loads can this 250VA inverter power?
With a continuous power rating of 250VA (200W) and a peak power of 400W, this inverter is suitable for small to medium loads. It can power sensitive electronics like laptops, small TVs, LED lighting, and charge mobile devices. It can also handle the start-up surge of some small power tools or appliances within its peak rating.
Installation Notes
- Ensure adequate ventilation around the inverter (at least 10 cm clearance).
- Connect to a 12V DC battery system only.
- Proper DC cabling with appropriate cross-section is essential for optimal performance and safety.
- The chassis must be grounded as this is a Safety Class I product.
- Installation should be performed by qualified personnel to ensure compliance with local regulations.
Before You Buy
- Verify your system's DC voltage matches the inverter's 12V input.
- Calculate your total AC load requirements (continuous and peak) to ensure the inverter can handle them.
- Consider optional VE.Direct accessories for enhanced monitoring and control.

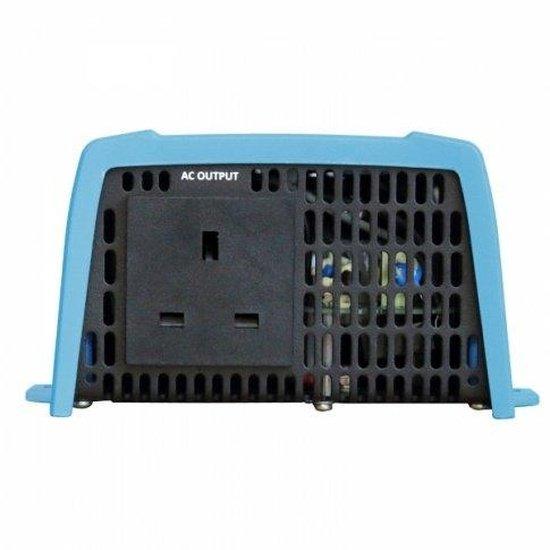

- Confirm the output socket type (UK 3-pin for PIN122510400) meets your needs.
- Review the manufacturer's manual for detailed installation and safety guidelines.
Please verify all specifications and compatibility with your existing system before purchase. Product details are based on manufacturer information and may be subject to change. For specific warranty information, please refer to the official Victron Energy documentation.
