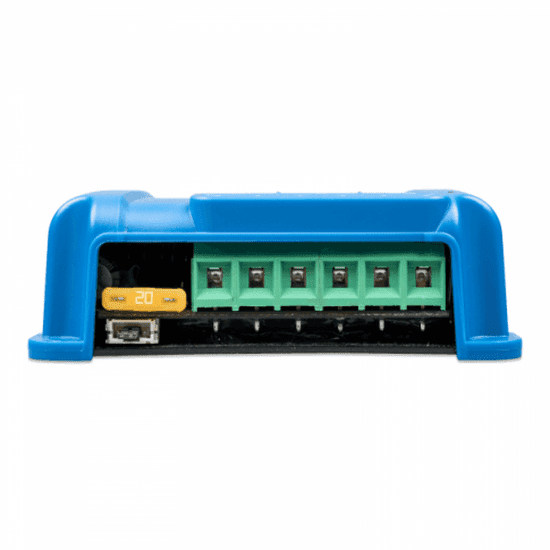

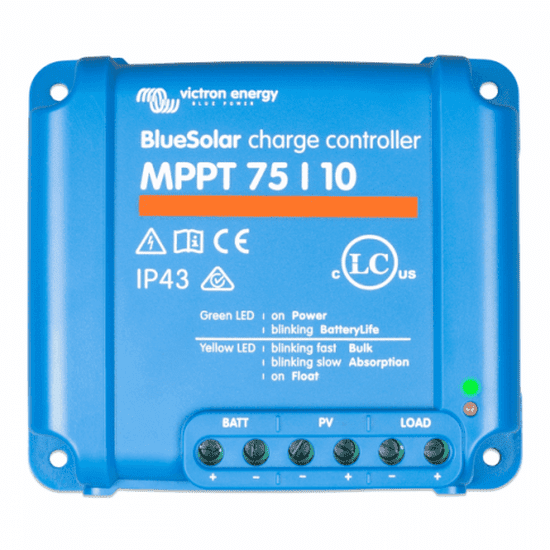

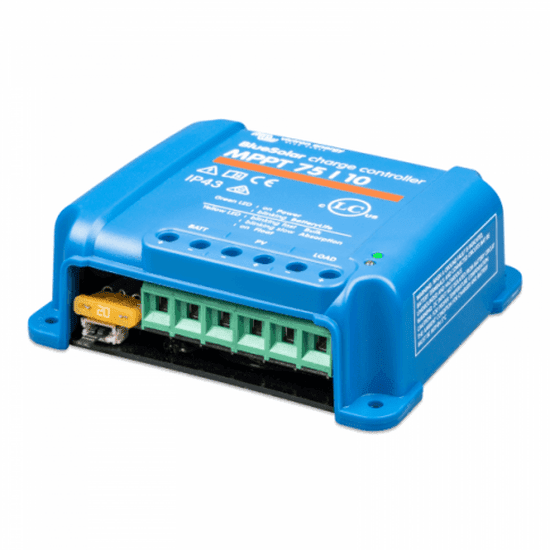

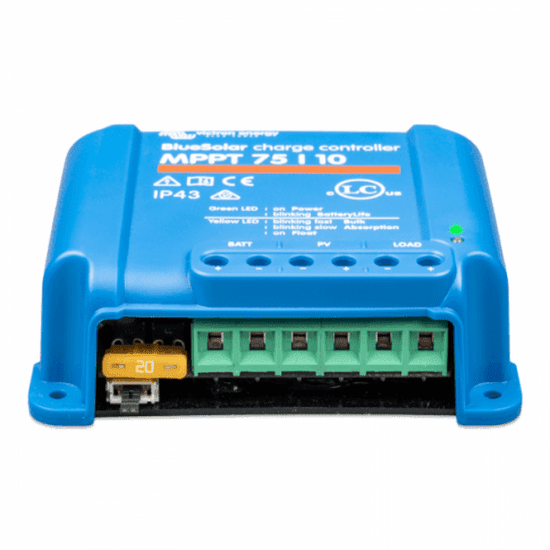

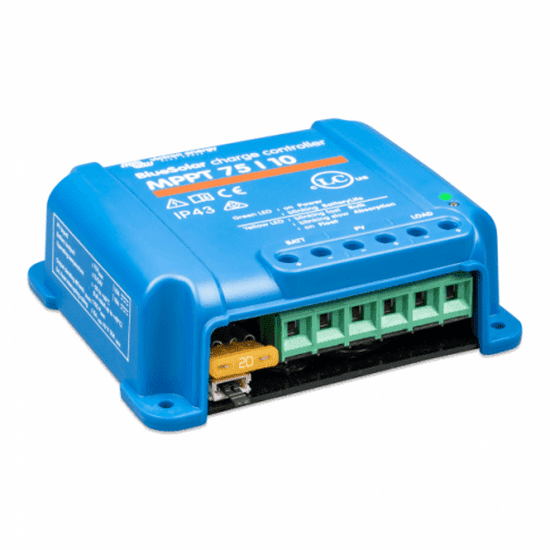

Victron BlueSolar MPPT 75/10 Solar Charge Controller
10A Output | Max 75V PV Input | 12V/24V Battery Systems
The Victron BlueSolar MPPT 75/10 Solar Charge Controller is an advanced 10A MPPT device designed to optimise energy harvest from your solar panels. It intelligently manages the charging process for 12V or 24V battery systems, ensuring maximum power delivery and extended battery life. Ideal for a wide range of off-grid and mobile solar applications, this controller features ultrafast Maximum Power Point Tracking (MPPT) technology to efficiently convert solar energy, even in challenging weather conditions.
With its robust design and comprehensive protection features, the BlueSolar MPPT 75/10 is a reliable core component for small to medium-sized solar installations, including those on RVs, boats, and remote cabins.
MAX PV POWER: Supports up to 145W for 12V battery systems and 290W for 24V battery systems, with a maximum PV open circuit voltage of 75V.
Key Features
| ▶ Ultrafast MPPT Technology — Boosts energy yield by up to 30% compared to PWM controllers. |
| ▶ Intelligent 'BatteryLife' Function — Prevents battery over-discharge and extends battery lifespan. |
| ▶ Automatic Voltage Selection — Smartly detects and adapts to either 12V or 24V battery systems. |
| ▶ High Conversion Efficiency — Achieves an impressive 98% peak efficiency for minimal energy loss. |
| ▶ Wide Battery Compatibility — Works with AGM, Gel, Tubular plate, and Lithium batteries. |
| ▶ VE.Direct Communication Port — Enables connection to optional monitoring accessories. |
Technical Specifications
| Parameter | Value |
|---|---|
| Battery Voltage (Auto Select) | 12V / 24V |
| Max. Battery Charge Current | 10A |
| Max. PV Open Circuit Voltage | 75V |
| Nominal PV Power (12V System) | 145W |
| Nominal PV Power (24V System) | 290W |
| Peak Efficiency | 98% |
| Self-Consumption | 20mA (12V) / 10mA (24V) |
| Operating Temperature Range | -30°C to +60°C |
| Enclosure Protection | IP43 (electronics) / IP22 (connections) |
| Dimensions (H x W x D) | 100 x 113 x 40 mm |
| Weight | 0.5 kg |
Charging & Battery Modes
The Victron BlueSolar MPPT 75/10 offers flexible charging and battery management to suit various battery types and system needs.
| Feature | Description |
|---|---|
| Adaptive 3-Stage Charging | Ensures optimal battery charging with Bulk, Absorption, and Float stages, adapting to battery state. |
| Programmable Charge Algorithm | Customise absorption voltage, float voltage, and equalization settings via the VictronConnect App (with optional dongle/interface). |
| Load Output with BatteryLife | Prevents battery over-discharge by automatically disconnecting loads and intelligently adjusting disconnect levels to ensure regular full recharges. |
| Remote Monitoring & Control | Access real-time data, historical logs, and configure settings using the optional VE.Direct Bluetooth Dongle or USB cable with the VictronConnect App. |
Typical Applications
| Application | Description |
|---|---|
| Motorhomes & Caravans | Efficiently charges leisure batteries from solar panels, extending off-grid autonomy. |
| Boats & Marine Systems | Maintains onboard battery health, providing reliable power for marine electronics and appliances. |
| Small Off-Grid Cabins | Manages solar input for lighting, small appliances, and essential power in remote locations. |
| Backup Power Systems | Integrates with small solar arrays to keep essential loads powered during outages. |
Built-In Protection Functions
The Victron BlueSolar MPPT 75/10 is equipped with comprehensive electronic protection features to ensure safe and reliable operation. These include safeguards against battery reverse polarity • PV reverse polarity • output short circuit • over-temperature protection with power de-rating • and battery overcharging. The unit also features an internal temperature sensor for optimal charging and self-diagnostic capabilities with LED fault indicators.
Common Questions
What is the maximum solar panel wattage I can connect?
For a 12V battery system, you can connect up to 145W of solar panels. For a 24V battery system, the maximum is 290W. The controller will limit input power if more PV power is connected.
Do I need additional accessories for monitoring?
For advanced monitoring and programming via the VictronConnect App, you will need an optional VE.Direct Bluetooth Smart dongle or a VE.Direct USB cable, both sold separately. An optional MPPT Control Panel is also available for direct display.
Is this controller suitable for Lithium batteries?
Yes, the Victron BlueSolar MPPT 75/10 is compatible with Lithium batteries. However, specific Lithium battery settings may require adjustment via the VictronConnect App, which necessitates a separate Bluetooth dongle or USB interface.
What is the 'BatteryLife' feature?
BatteryLife is an intelligent battery management algorithm that prevents over-discharge. If the battery cannot be fully recharged daily, it gradually raises the load disconnect voltage until a near 100% recharge is achieved, typically once a week, to prolong battery health.
Installation Notes
- Mount the controller in a cool, dry, and well-ventilated area, away from direct sunlight.
- Ensure correct polarity for all connections (solar panel, battery, load) to prevent damage.
- Use appropriate cable gauges for your system's current and distance to minimise voltage drop.
- Refer to the manufacturer's manual for detailed wiring diagrams and safety instructions.
- Consider professional installation for complex systems or if unsure about electrical work.
Before You Buy
- Verify your solar panel's open circuit voltage (Voc) does not exceed 75V.
- Confirm your total solar panel wattage is within the controller's limits (145W for 12V, 290W for 24V).
- Check your battery bank's nominal voltage (12V or 24V) for compatibility.
- Consider if you require remote monitoring and purchase the necessary VE.Direct accessories separately.
- Ensure the physical dimensions (100 x 113 x 40 mm) fit your intended mounting location.
Always verify product specifications and compatibility with your existing system components before purchase. Consult the official Victron Energy documentation for complete details and safety guidelines.
