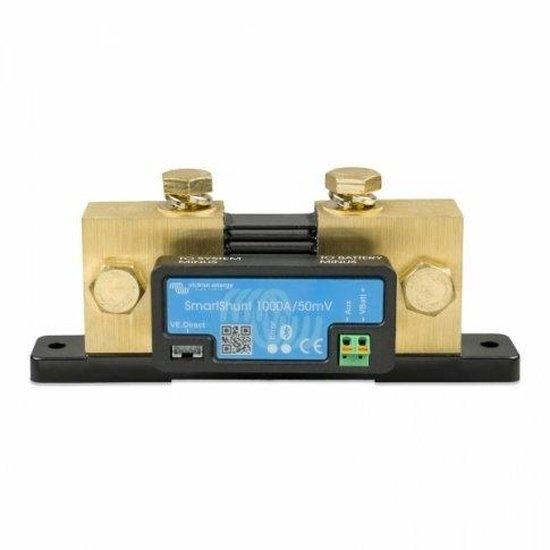

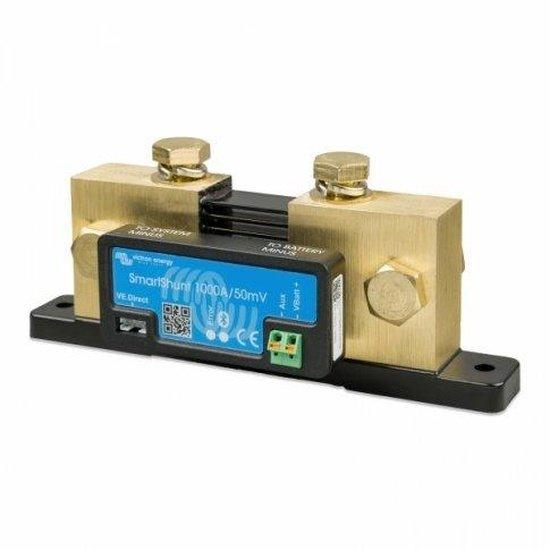

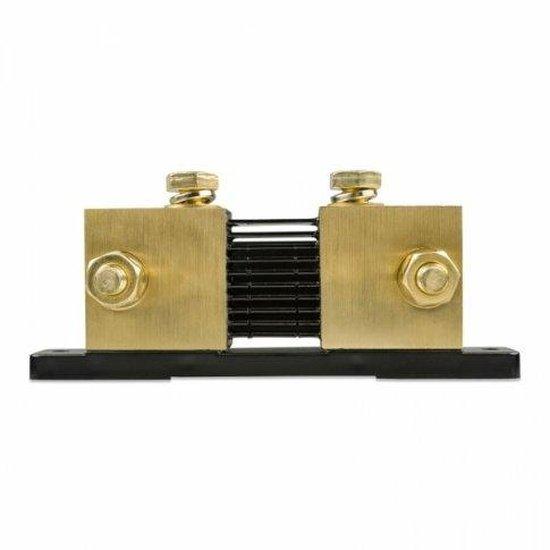

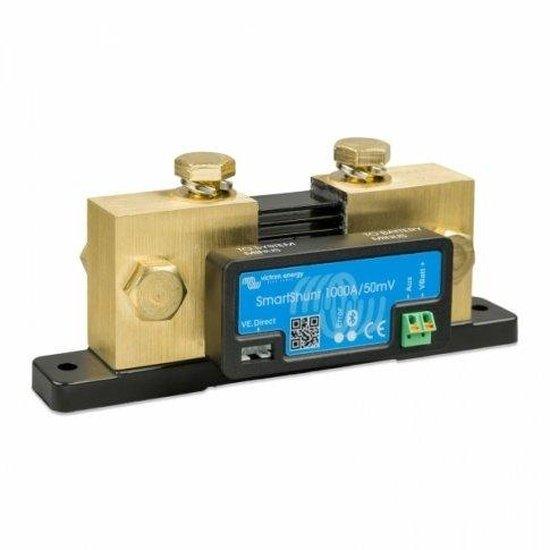

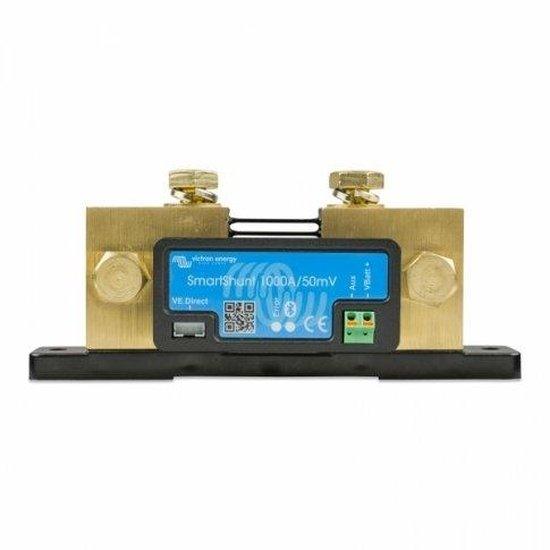

Victron 1000A SmartShunt Battery Monitor
High-Precision Battery Shunt & Bluetooth Connectivity | For 12V, 24V, 48V Systems (SHU050210050)
The Victron 1000A SmartShunt is a high-precision battery monitoring device designed to provide essential data for 12V, 24V, and 48V battery systems. This compact shunt expertly measures vital charging and performance data, offering comprehensive insights into your battery's health and usage patterns. With its integrated Bluetooth functionality, users can conveniently monitor statistics such as battery voltage, charge/discharge current, Amp-hours consumed, state of charge, and time-to-go directly from a smartphone or tablet via the VictronConnect App.
Ideal for a wide range of applications, from off-grid setups to marine and RV systems, the SmartShunt eliminates the need for a separate display, streamlining your battery management. It also features a secondary input for monitoring an auxiliary battery or midpoint voltage, ensuring balanced performance for multi-battery banks.
SYSTEM COMPATIBILITY: Suitable for 12V, 24V, and 48V battery systems with a maximum nominal current of 1000A. Compatible with Lead Acid (Gel, AGM) and Lithium battery types.
Key Features
| ▶ Integrated Bluetooth — Wireless monitoring and configuration via VictronConnect App on mobile devices. |
| ▶ Comprehensive Data — Monitors voltage, current, power, Amp-hours, state of charge, and time-to-go. |
| ▶ Auxiliary Input — Allows monitoring of a second battery or midpoint voltage for balanced battery banks. |
| ▶ Low Power Consumption — Extremely low current draw from the battery bank (approx. 0.7Ah per month for 12V). |
| ▶ Historical Data Log — Records usage patterns and overall battery health for in-depth analysis. |
| ▶ VE.Direct Port — Connects to a non-Bluetooth PC/laptop via an optional VE.Direct USB cable. |
Technical Specifications
| Parameter | Value |
|---|---|
| Nominal Battery Voltage | 12V / 24V / 48V |
| Supply Voltage Range | 6.5 - 70V DC |
| Auxiliary Input Voltage Range | 6.5 - 70V DC |
| Input Current Range | -1000A to +1000A |
| Supply Current | 1mA (12V) / 0.8mA (24V) |
| Operating Temperature | -40°C to +50°C |
| Voltage Measurement Accuracy | ±0.3% |
| Current Measurement Accuracy | ±0.4% |
| Dimensions (H x W x D) | 120 x 68 x 54 mm |
| Weight | 1.1 kg |
Advanced Battery Monitoring & Data
The Victron SmartShunt provides a detailed overview of your battery system's performance and health, transmitting this information wirelessly via Bluetooth to the VictronConnect App. Key parameters monitored include:
- Battery Voltage: Displays voltage for the main battery bank and an optional auxiliary battery.
- Battery Midpoint Voltage Monitoring: Essential for multi-battery banks, helping to maintain balance and alert to deviations.
- Battery State of Charge (SoC): Indicated as a percentage from 0-100%.
- Charge/Discharge Current & Power: Shows energy flow into (positive) and out of (negative) the battery.
- Amp-hours Consumed: Tracks the total energy drawn from the battery.
- Time-to-Go: Estimates the remaining runtime based on current load and battery capacity.
- Battery Temperature: (Requires optional Victron battery temperature sensor, sold separately) Allows for temperature-compensated capacity adjustments and alerts.
- Historical Data: A comprehensive log records highest/lowest voltages, deepest discharge, time since last full charge, and more for long-term analysis.
Users can customise high/low thresholds for battery voltage, state of charge, or temperature, triggering alarms within the VictronConnect App if parameters fall outside the specified range.
Typical Applications
| Application | Description |
|---|---|
| Off-Grid Solar Systems | Essential for monitoring battery health and energy usage in remote cabins, tiny homes, and standalone power setups. |
| Marine & RV Systems | Provides critical battery data for boats, caravans, and motorhomes, ensuring reliable power on the go. |
| Backup Power Solutions | Monitors battery banks used for uninterruptible power supplies (UPS) or emergency backup systems. |
| Industrial & Commercial | Suitable for monitoring battery performance in various industrial equipment and small commercial installations. |
Built-In Protection Functions
The Victron SmartShunt is designed with robust safety and monitoring features to protect your battery system. It includes capabilities for setting custom high/low voltage thresholds for both main and auxiliary batteries, as well as state of charge and temperature (with optional sensor) alarms. These alarms are activated within the VictronConnect App if any monitored parameter falls outside the user-defined safe range, providing timely alerts to prevent potential issues. The unit adheres to safety and emission standards including EN 60335-1 and EN-IEC 61000 series, ensuring reliable and safe operation.
Common Questions
What is the primary benefit of the SmartShunt's Bluetooth feature?
The integrated Bluetooth allows for wireless monitoring and configuration of your battery system using the VictronConnect App on a smartphone or tablet. This eliminates the need for a dedicated display, offering convenience and flexibility.
Can the SmartShunt monitor multiple battery banks?
Yes, the SmartShunt has a secondary input that can be used to monitor the voltage of an auxiliary battery bank or to monitor the midpoint voltage of a large battery bank for balancing purposes.
What battery types are compatible with this SmartShunt?
The Victron 1000A SmartShunt is suitable for use with 12V, 24V, or 48V Lead Acid (Gel, AGM) and Lithium battery types.
Does the SmartShunt require a separate power source?
No, the SmartShunt draws its power directly from the battery bank it is monitoring. It has an extremely low current draw to minimise impact on battery life.
Installation Notes
- Always connect the shunt on the negative battery wire, as close to the battery bank as possible.
- Ensure all connections are secure and correctly polarised to prevent damage.
- Refer to the manufacturer's official user manual for detailed wiring diagrams and installation instructions.
- The SmartShunt is supplied with two 1.5m positive supply cables with fuses for connection to up to two battery banks.
Before You Buy
- Verify your battery system's nominal voltage (12V, 24V, or 48V) matches the SmartShunt's compatibility.
- Confirm your maximum expected current draw does not exceed the 1000A rating of this shunt.
- Consider if you require an optional Victron battery temperature sensor for advanced temperature monitoring.
- Ensure you have a Bluetooth-enabled mobile device (smartphone or tablet) for optimal use with the VictronConnect App.
Please verify all specifications and compatibility requirements with your existing system before purchase. This product is covered by a 5-year manufacturer warranty.
