Compact cable-stack loading for machines where space is limited.

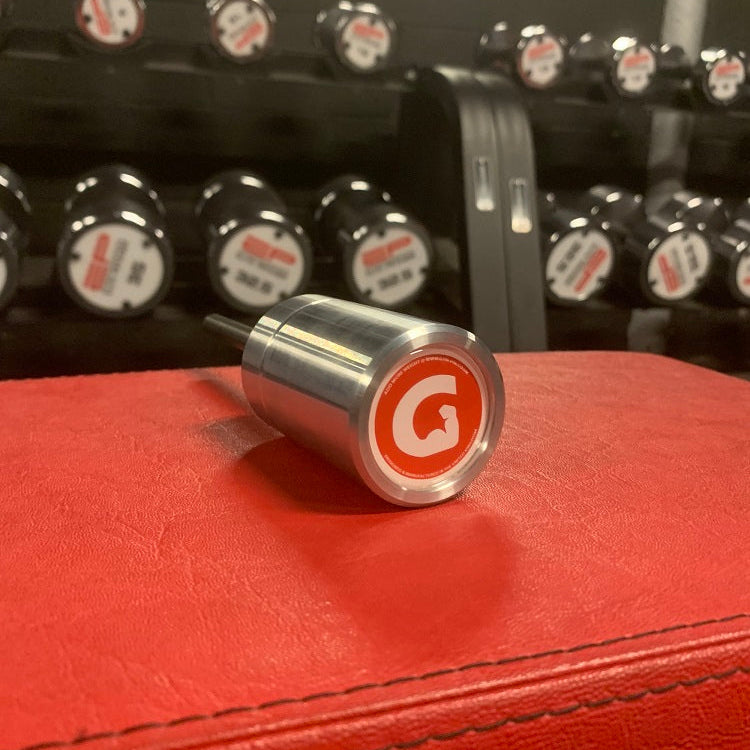

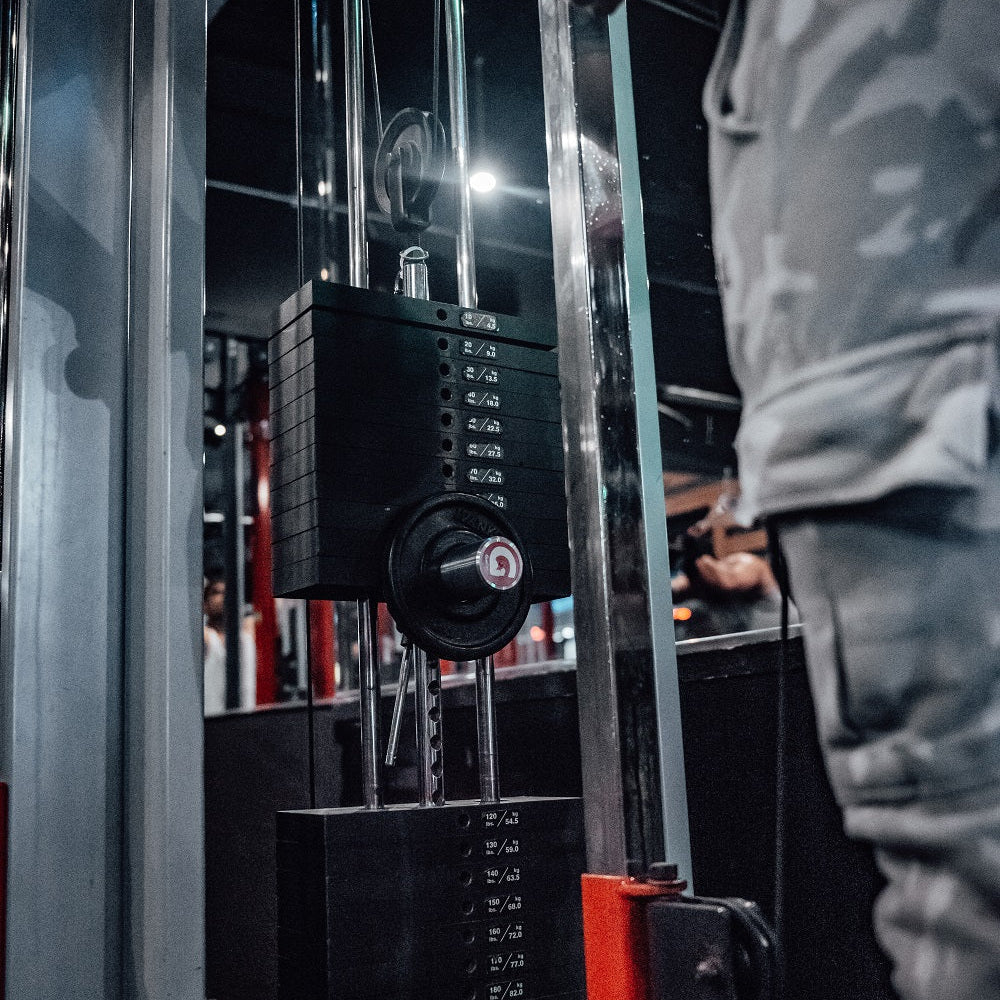

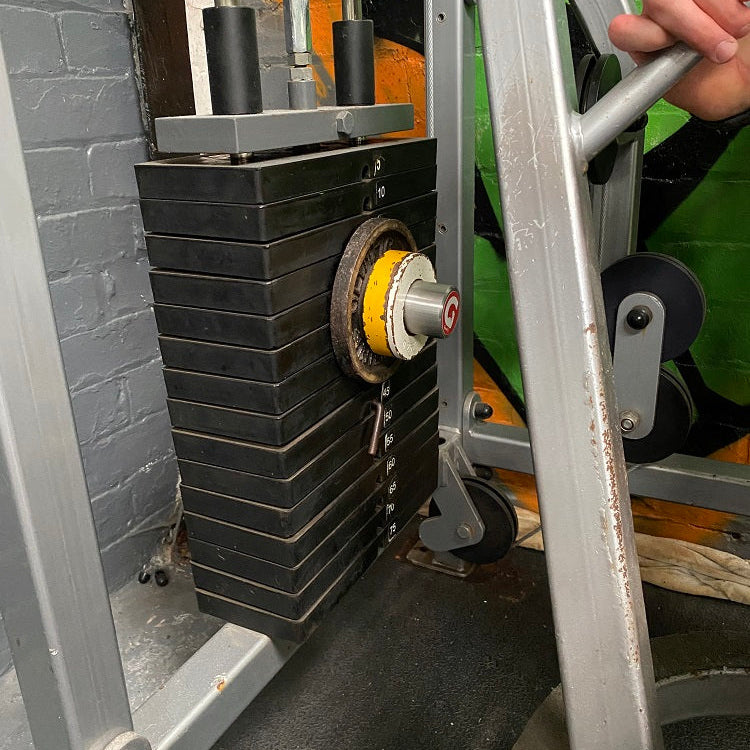

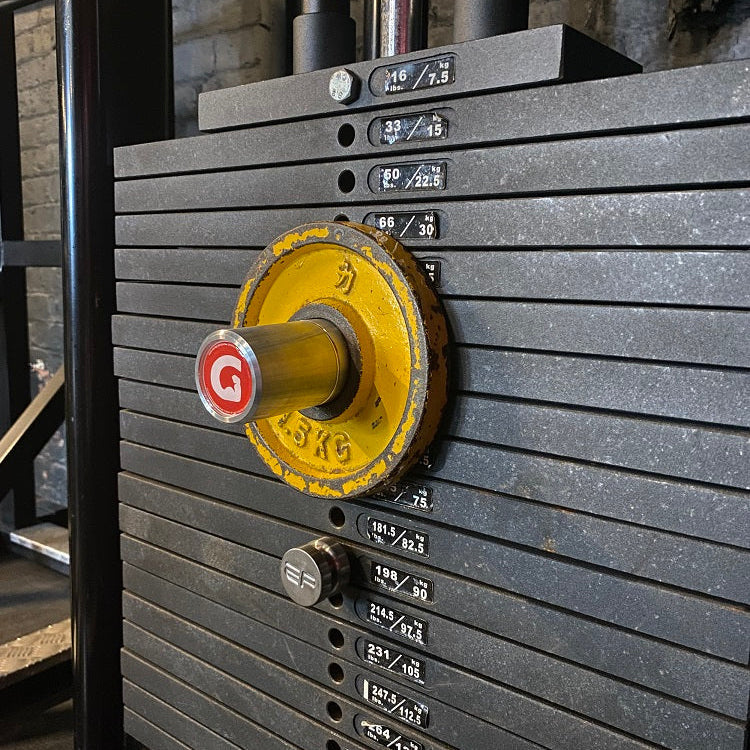

The 2" MiniPin by GymPin replaces the selector pin on a compatible cable-machine weight stack and provides an 80 mm loading sleeve for a standard 2-inch Olympic plate. It is the compact choice when the Original GymPin’s longer sleeve would leave insufficient clearance beside the machine.
80 mm loading sleeve for tighter cable-stack setups

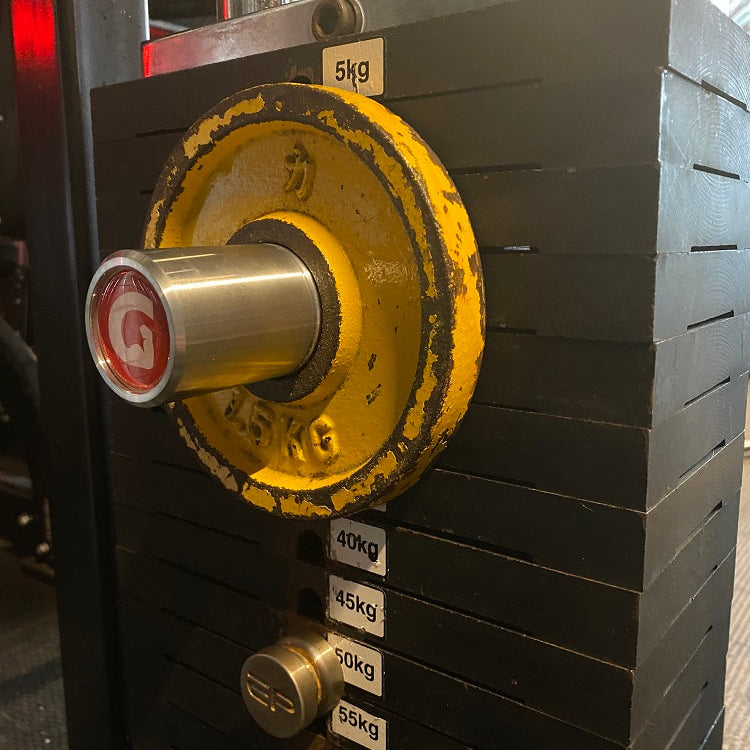

49.5 mm sleeve diameter for 2-inch Olympic plates with a 50.8 mm centre hole
Choose an 8 mm (5/16") or 10 mm (25/64") selector pin
102 mm selector-pin section

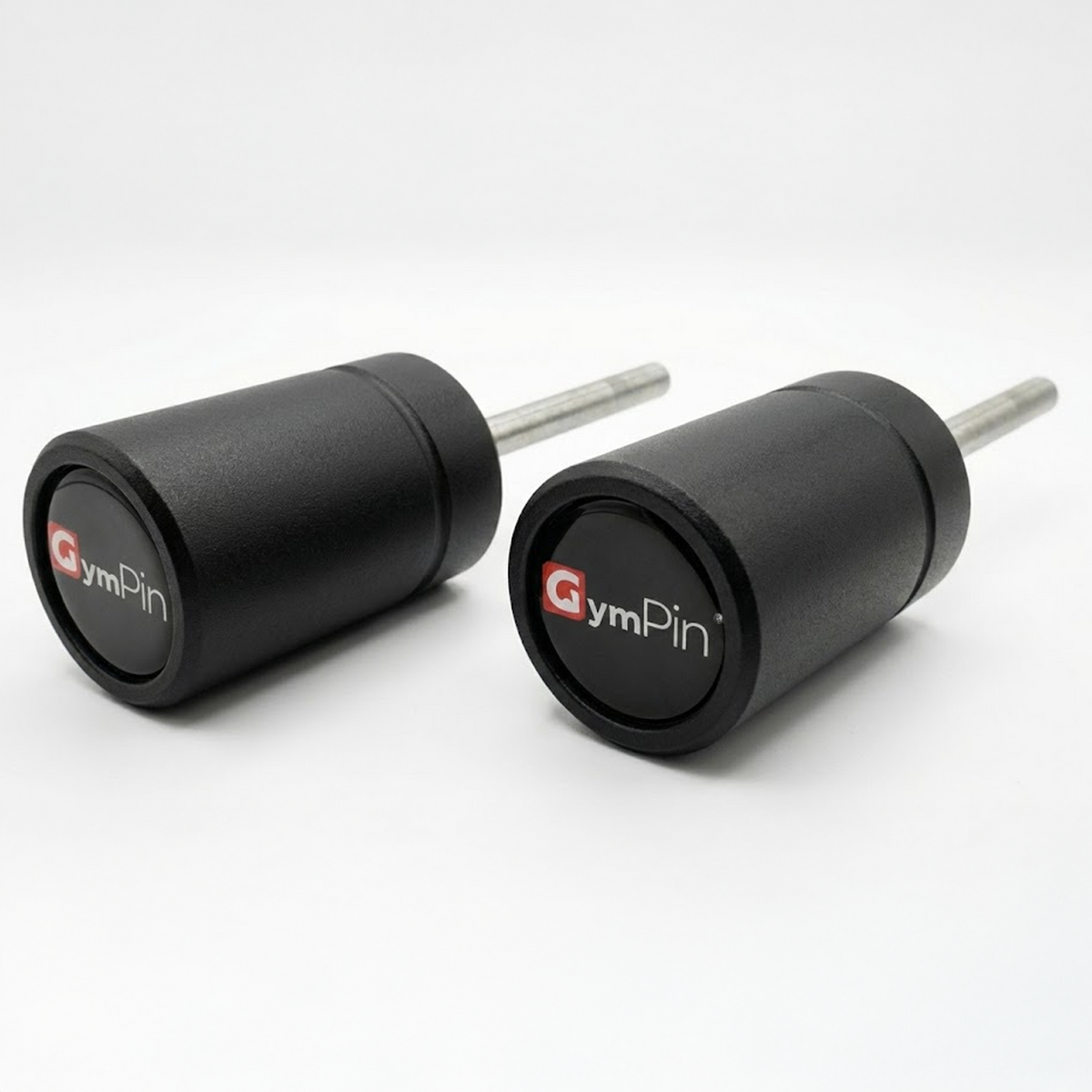

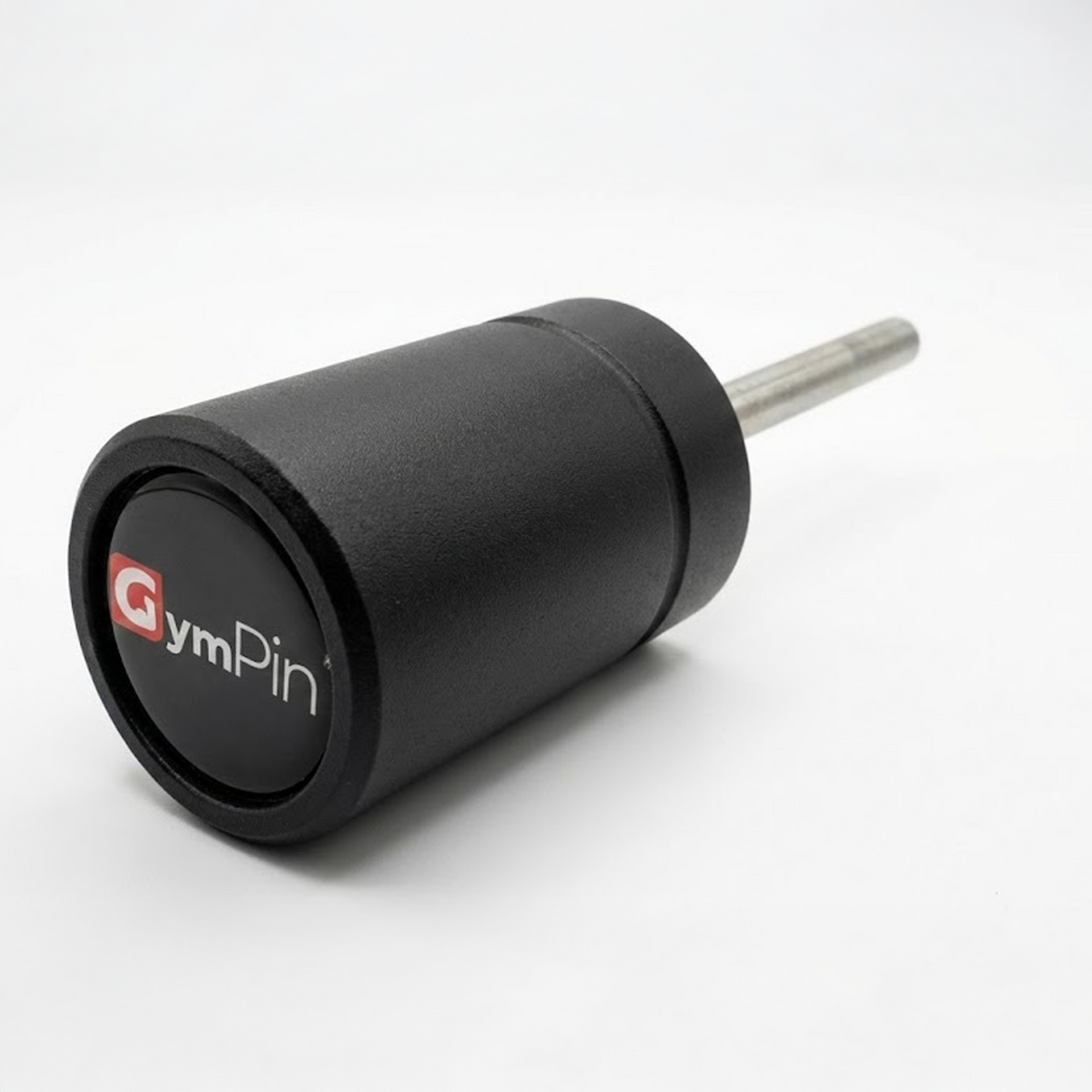

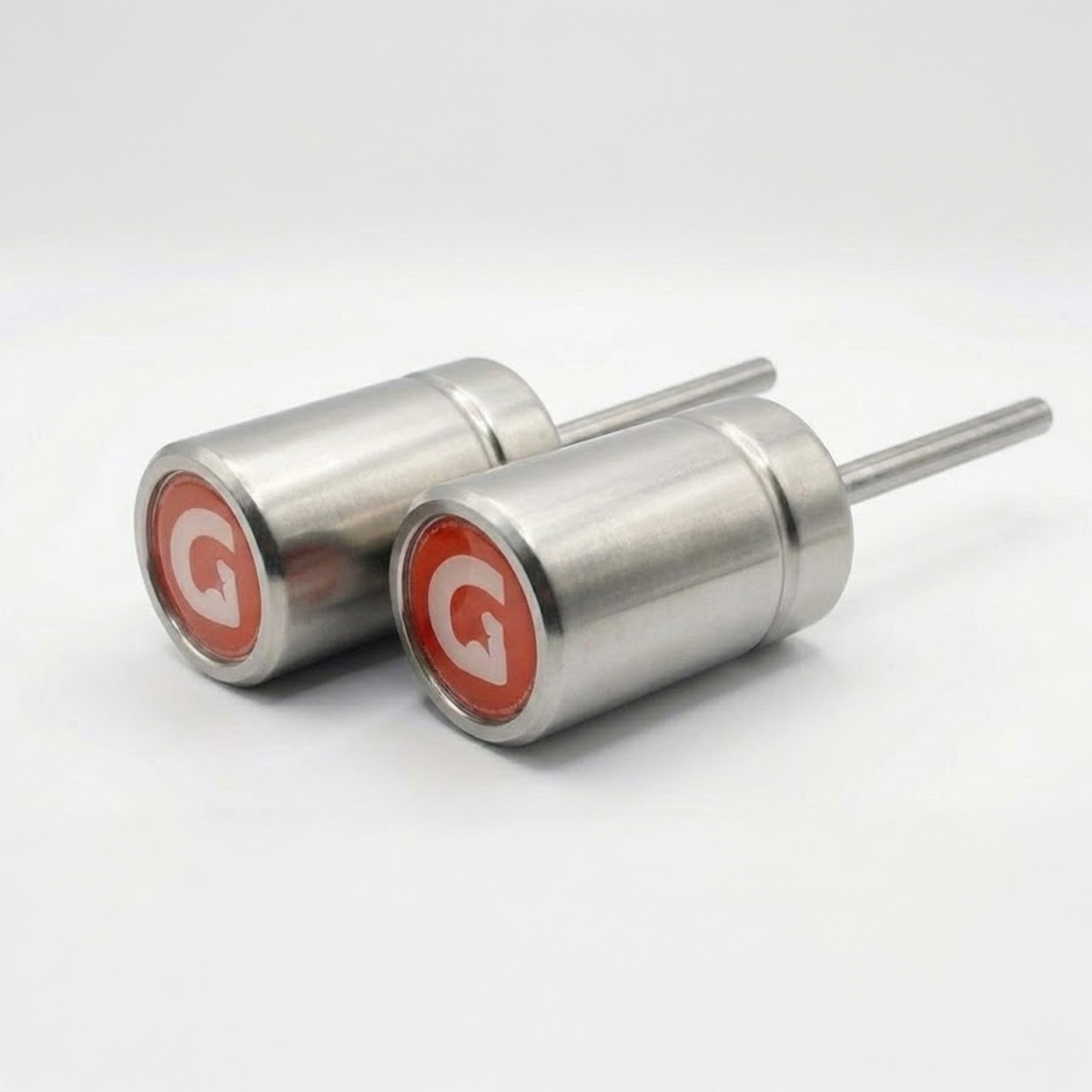

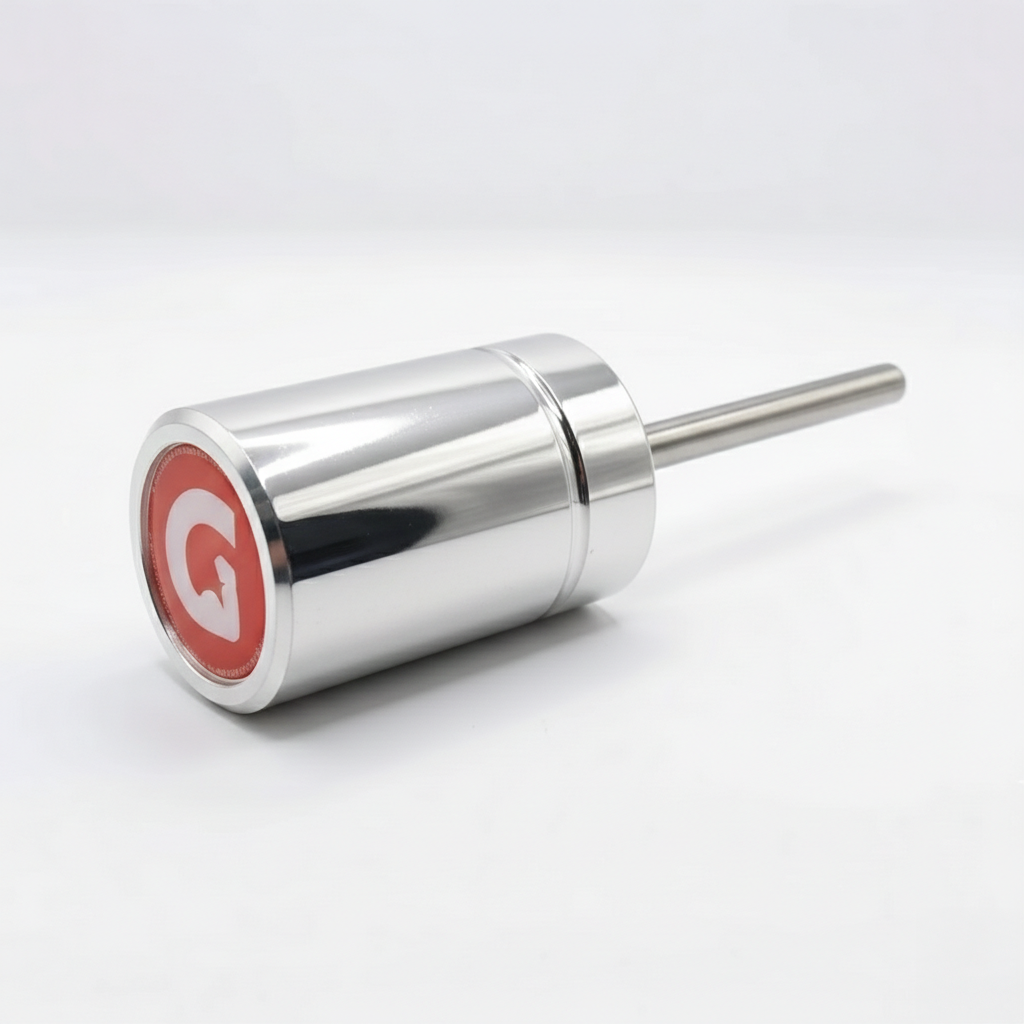

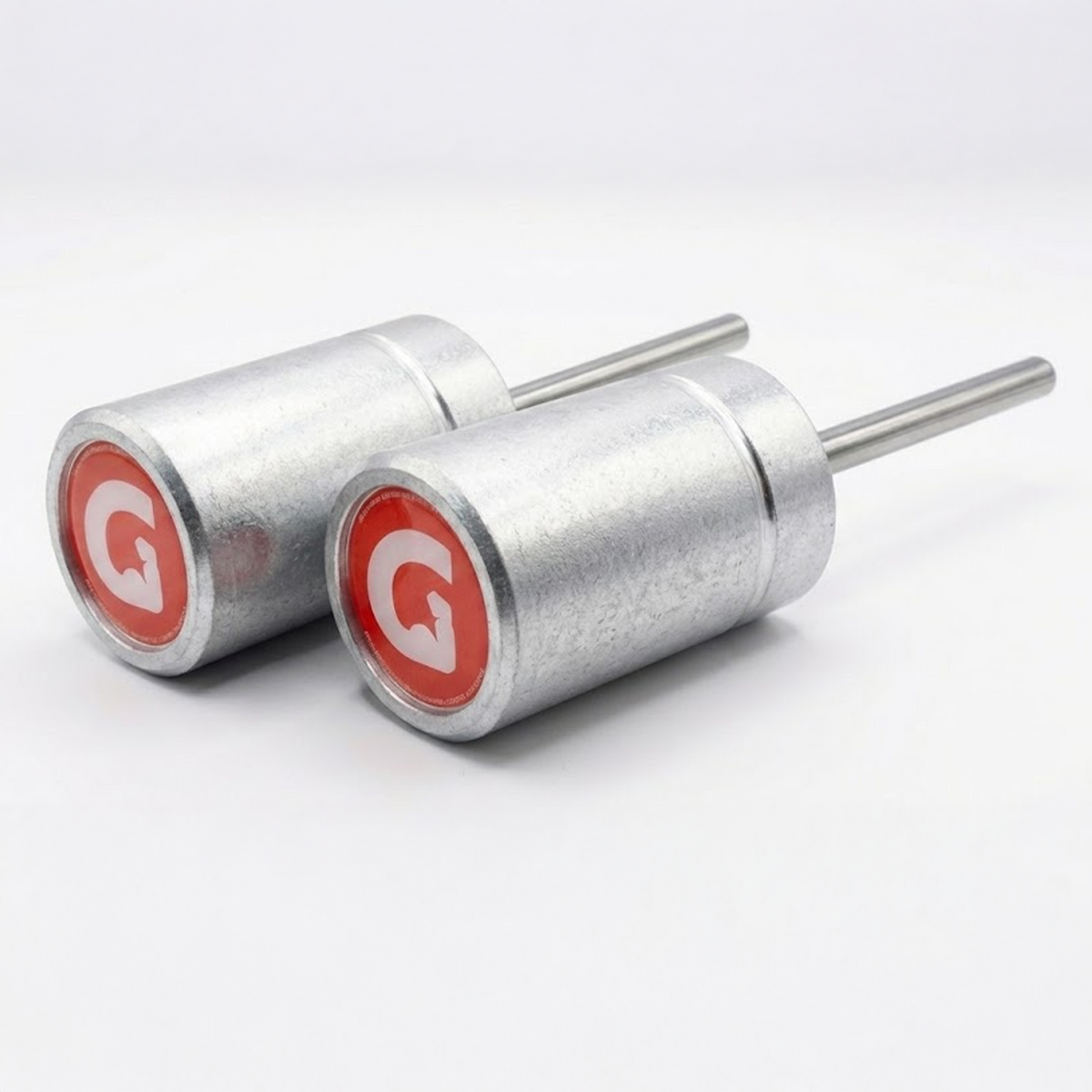

Available in Raw, Polished and Black finishes
Manufactured in the United Kingdom
Compatibility
The MiniPin is designed for compatible selectorised cable machines that use an 8 mm or 10 mm selector pin. Fit is not universal. Measure the machine’s existing pin with callipers and check there is enough room for the 80 mm sleeve plus your chosen Olympic plate before ordering.
MiniPin, Original or KingPin?
Choose the MiniPin for restricted-clearance setups, the Original GymPin as the standard all-round extender, or the KingPin when a 10 mm machine has enough space for an extra-long loading sleeve.

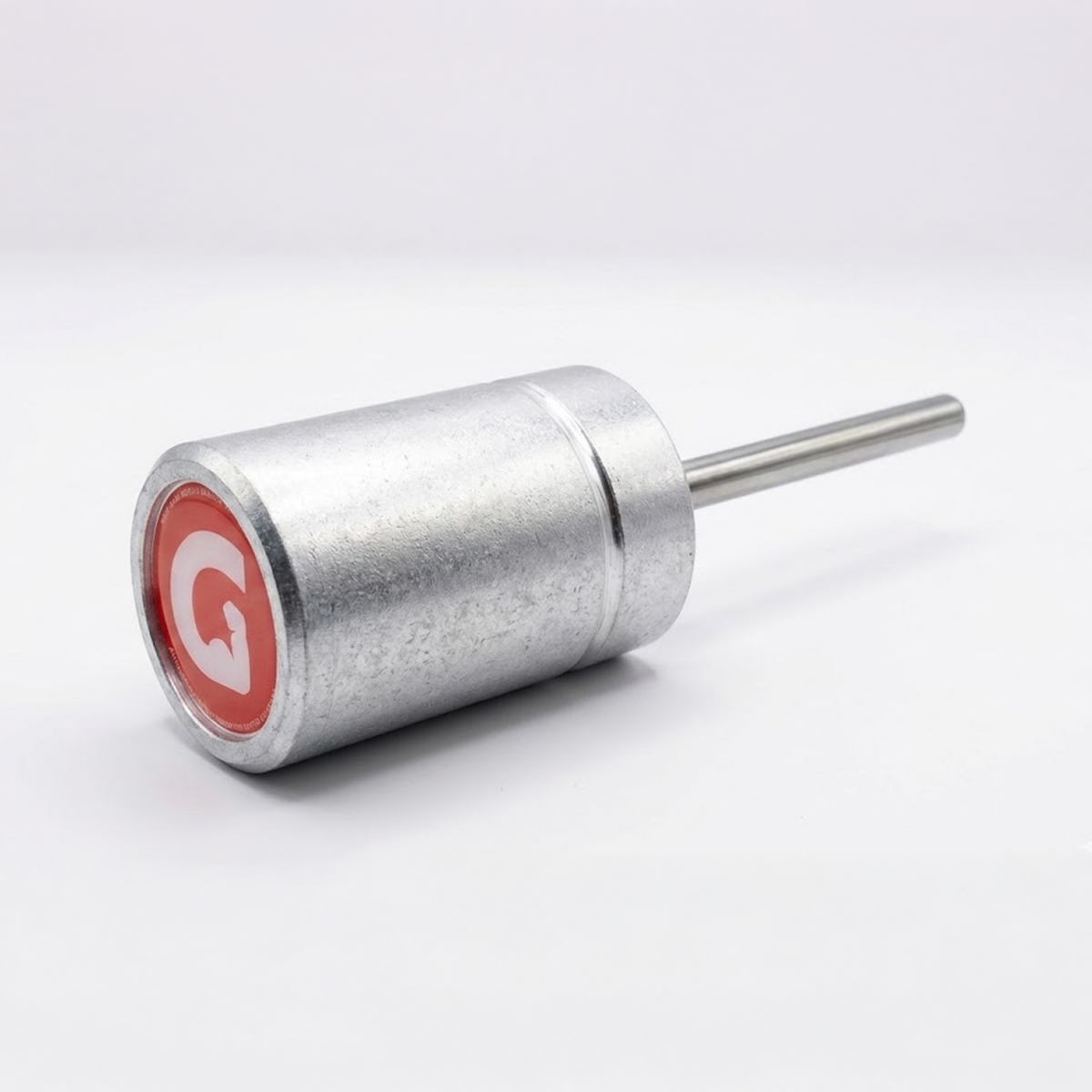

Dimensions and weight

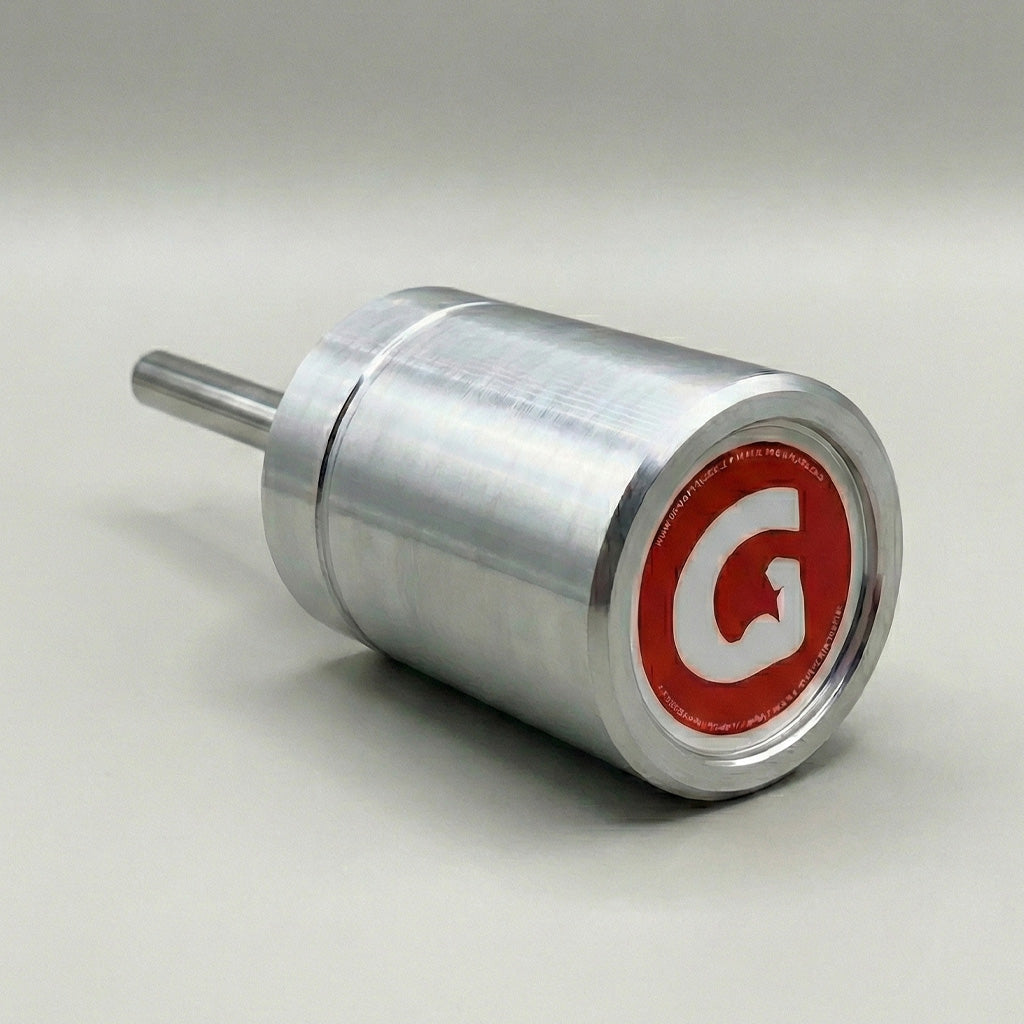

The loading section measures 80 mm long × 49.5 mm diameter. The selector-pin section measures 102 mm long and is available in 8 mm or 10 mm diameter. The 8 mm MiniPin weighs 494 g; the 10 mm MiniPin weighs 527 g.
Setup and safety

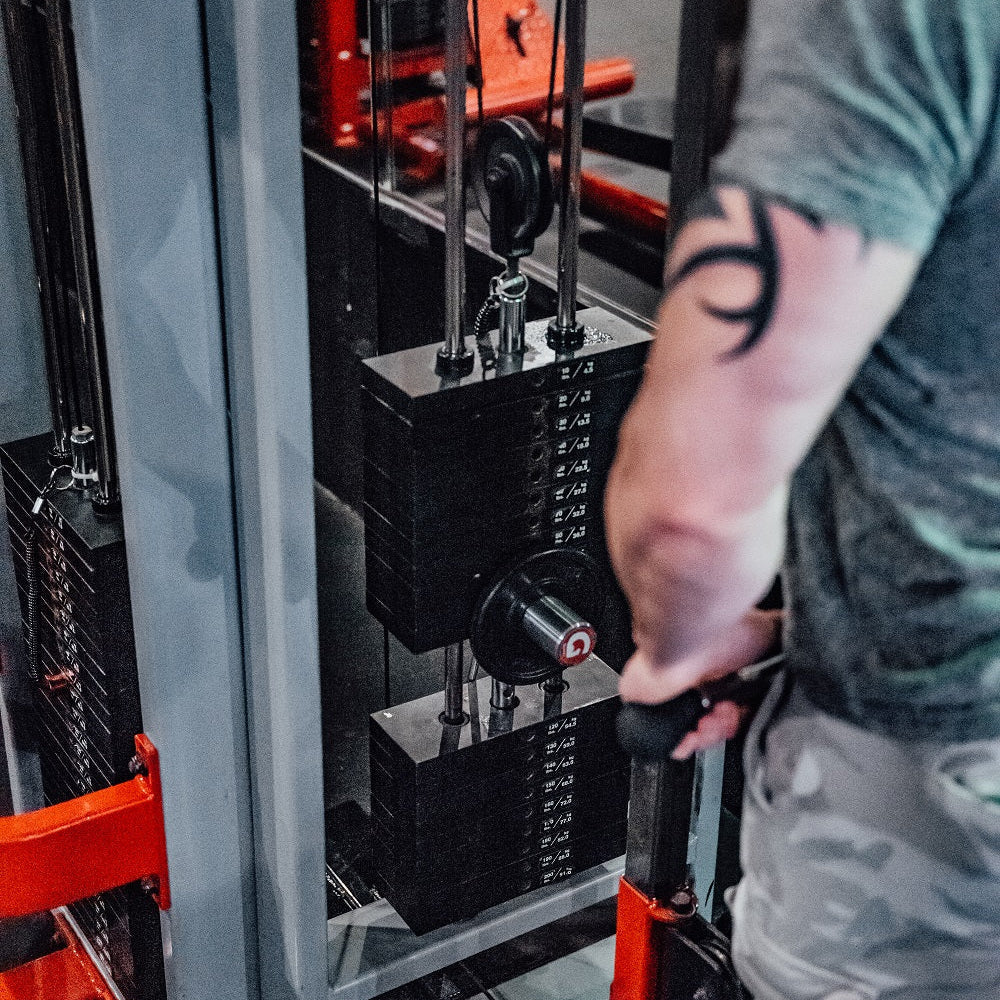

Obtain the gym owner’s permission before use. Insert the MiniPin fully, begin with a light test load and confirm the plate stays clear of the machine throughout the movement. Follow the equipment manufacturer’s loading limits, use controlled repetitions and never slam the weight stack.
