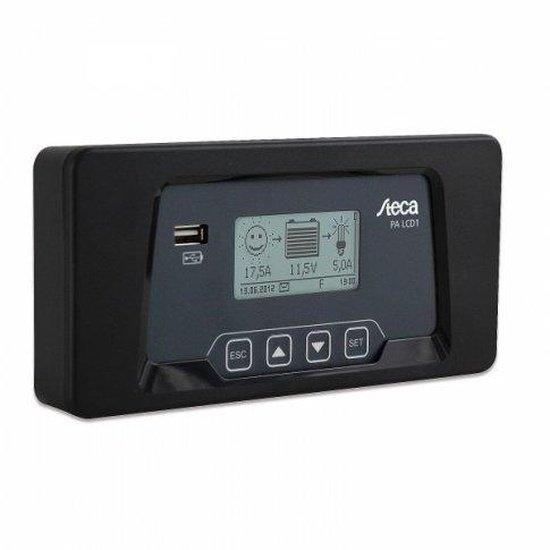

Steca PA LCD1 Remote Meter / Display
Advanced Monitoring & Control for Steca Solarix 2020-x2 | 5m RJ45 Cable Included
The Steca PA LCD1 Remote Meter / Display is an essential accessory for enhancing the functionality and monitoring capabilities of your Steca Solarix 2020-x2 20A dual battery solar charge controller. Designed and manufactured in Germany, this high-quality remote display provides comprehensive insights into your solar system's performance, allowing for precise control over charging processes and load management.
With its intuitive graphical interface and integrated data logger, the PA LCD1 enables remote viewing of critical parameters such as solar panel, battery, and load voltages and currents. It also records accumulated energy data and min/max voltages, empowering users to optimise their 12V or 24V dual battery systems for caravans, motorhomes, and off-grid applications.
COMPATIBILITY NOTE: This remote meter is designed exclusively for use with the Steca Solarix 2020-x2 20A dual battery solar charge controller. It is not compatible with any other charge controller models.
Key Features
| ▶ Comprehensive Monitoring — View solar panel, battery, and load parameters in real-time. |
| ▶ Integrated Data Logger — Record daily, monthly, and annual energy data, including min/max voltages and currents. |
| ▶ Advanced Control Settings — Adjust battery type, capacity, charging voltages, stage durations, and charge ratio between dual batteries. |
| ▶ Generator & Excess Energy Control — Implement smart load management with unique generator start/stop and surplus energy diversion functions. |
| ▶ Programmable Load Timers — Customise load output settings with four freely programmable timers for various applications. |
| ▶ USB Charging Port — Convenient 5V USB socket for charging mobile phones and tablets. |

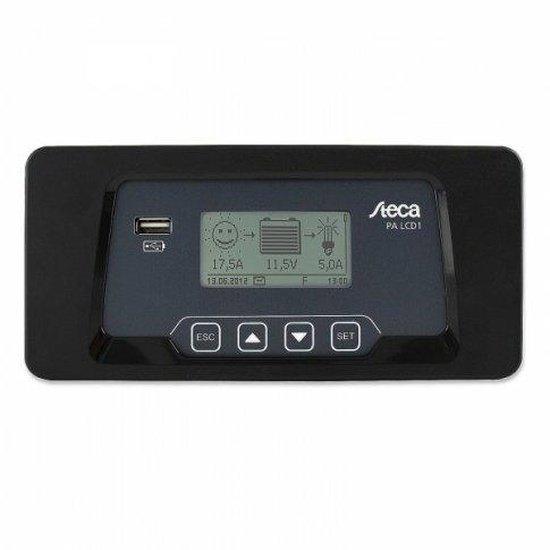

| ▶ Flexible Mounting — Suitable for flush mounting, surface mounting, or use as a handheld device. |
| ▶ German Engineering — Built to high standards of quality and reliability. |
Technical Specifications
| Parameter | Value |
|---|---|
| Compatible Controller | Steca Solarix 2020-x2 (20A, 12/24V) |
| Self-Consumption | 30 mA |
| Operating Temperature | -20°C to +50°C |
| Communication Cable | RJ45, 5 metres included |
| USB Output | 5V (500mA - 800mA) |
| Dimensions (L x W x D) | 19 x 9 x 3 cm |
| Weight | 400 g |
| System Voltage Range | 10 V - 60 V |
| Protection Degree | IP21 |
Advanced System Control & Data Logging
The Steca PA LCD1 remote meter goes beyond simple monitoring, unlocking a suite of advanced control features for your Steca Solarix 2020-x2 charge controller. This allows for fine-tuned management of your solar power system to meet specific energy demands and battery health requirements.
| Function | Description |
|---|---|
| Battery Parameter Adjustment | Modify battery type, capacity, and set precise charging voltages (float, boost, equalisation) and their durations for optimal battery care. |
| Dual Battery Charge Ratio | Customise the power distribution between your main and auxiliary batteries, e.g., changing from a default 90%/10% split to 50%/50%. |
| Generator Control | Automatically start a generator when battery voltage drops below a set threshold and switch it off once sufficient charge is restored. |
| Excess Energy Control | Divert surplus solar energy to a designated appliance (e.g., water heater, fan) once the battery reaches a chosen state of charge. |
| Event Log & Diagnostics | Access event logs, self-testing results, diagnostic messages, and fault alerts for system troubleshooting and maintenance. |
Typical Applications
| Application Area | Benefit with PA LCD1 |
|---|---|
| Caravans & Motorhomes | Monitor and manage leisure and starter batteries, optimise charging, and control loads from a convenient location inside the vehicle. |
| Off-Grid Cabins & Sheds | Gain full visibility and control over your remote solar power system, ensuring reliable power supply and efficient energy usage. |
| Marine Vessels | Effectively manage dual battery banks (e.g., service and engine start) on boats, with detailed monitoring and load control. |
| Small Solar Installations | Ideal for any small to medium-sized PV system requiring precise monitoring and programmable load outputs for two independent batteries. |
System Monitoring & Diagnostics
The Steca PA LCD1 remote display provides crucial diagnostic capabilities by showing operating parameters, voltage, current, and fault messages. This allows users to quickly identify and address any issues within their solar charging system, contributing to overall system reliability and longevity. The unit also features an alarm output for programmable parameters.
Common Questions
What is the primary purpose of the Steca PA LCD1?
The Steca PA LCD1 is a remote graphical display and control unit designed to provide detailed monitoring and advanced programming options for the Steca Solarix 2020-x2 dual battery solar charge controller.
Can I use this display with other Steca charge controllers?
No, the Steca PA LCD1 is specifically designed for and only compatible with the Steca Solarix 2020-x2 20A dual battery solar charge controller. It will not function with other models.
Does the PA LCD1 come with a cable?
Yes, a 5-metre RJ45 communication cable is included with the Steca PA LCD1 for easy connection to your compatible charge controller.
What are the mounting options for the display?
The unit can be flush-mounted into a surface (requiring a recess), surface-mounted, or used as a portable handheld device for flexibility in installation and use.
Installation Notes
- Ensure the Steca Solarix 2020-x2 charge controller is powered off before connecting the PA LCD1.
- Connect the supplied 5-metre RJ45 cable from the PA LCD1 to the RJ45 socket on the charge controller.
- For flush mounting, carefully create a recess in the desired mounting surface according to the display's dimensions.
- Refer to the detailed user manual (included) for complete connection and operation instructions.
Before You Buy
- Verify Compatibility: This unit is exclusively for the Steca Solarix 2020-x2 20A dual battery solar charge controller.
- The Steca Solarix 2020-x2 charge controller is sold separately and is not included with this remote meter.
- Consider your preferred mounting method (flush, surface, or handheld) and ensure you have the necessary tools for installation.
- Review the technical specifications to ensure it meets your system's requirements.
All specifications are subject to change by the manufacturer. Please verify product details and compatibility before purchase. This product is covered by a 5-year manufacturer warranty.
