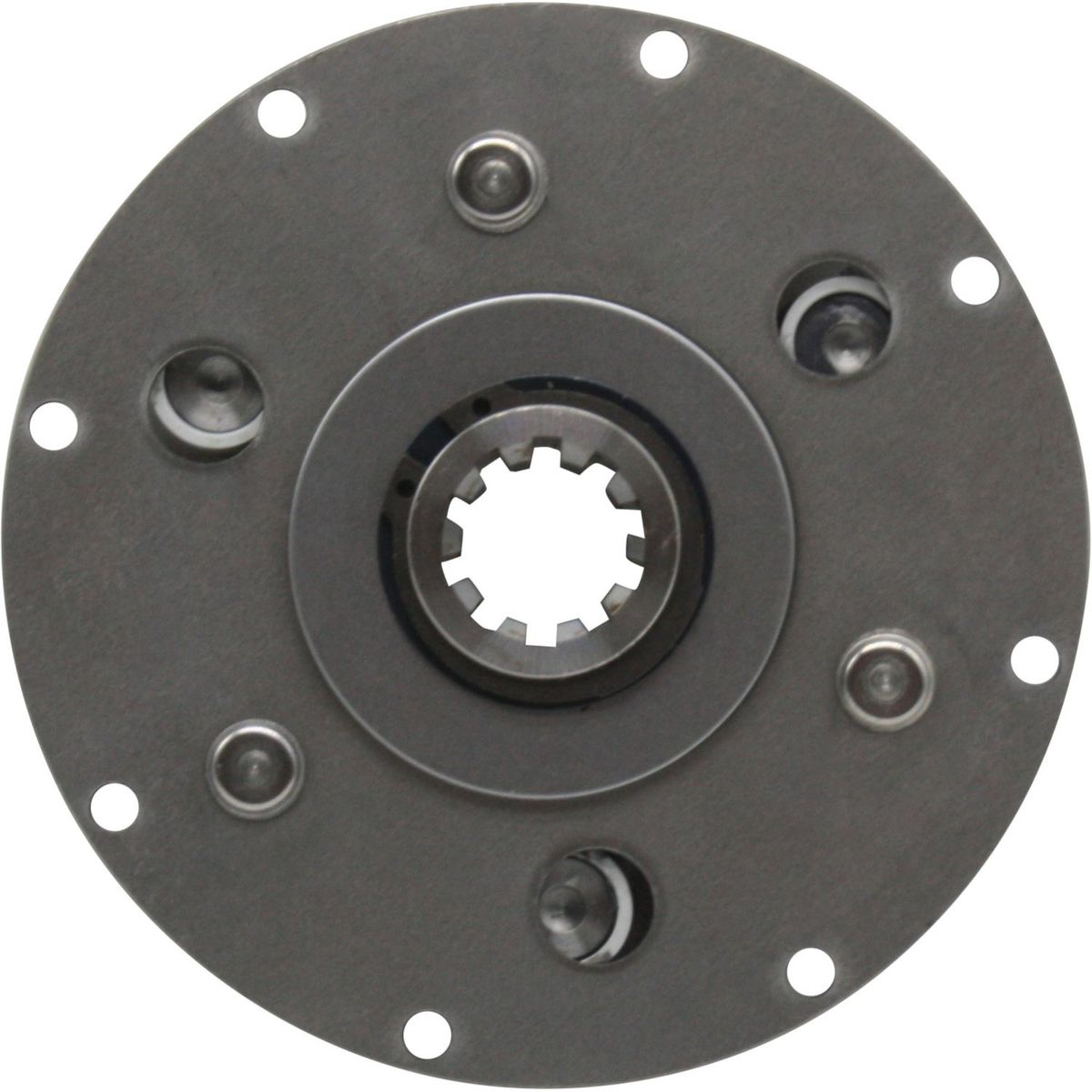

R&D Drive Plate for ZF Hurth Gearboxes (10 Teeth Spline, 152mm OD)

22AM16 Marine Engine Damper Drive Plate from R&D Marine.

Fitted between the boat engine and the gearbox input shaft, a damper drive plate is designed to transmit the engine power to the gearbox, whilst reducing transmitted gear noise and providing a cushioned drive when selecting gear. All R and D Damper Drive plates include a 'failsafe' design.

Also called the Driven Plate, Damper Plate or Clutch Plate, the 22AM16 Damper Drive Plate is from the R and D High Deflection element range suitable for ZF Hurth and Technodrive Gearboxes.

Damper Technical Specifications:
- Spline: 10 Teeth DIN 5464
- Fitted with a High Deflection element for 135 Nm 100 lb ft torque.

Flywheel Fixing Metric:
8 x 7.5mm on 152mm
