Parallel connection kit for Iconica 24V KMS or ZT series hybrid pure sine wave inverters
Parallel connection kit for Iconica 24V KMS or ZT series hybrid pure sine wave inverters
Couldn't load pickup availability
Parallel Connection Kit for Iconica Inverters
KMS-PARKIT-24 | Expand 24V KMS & ZT Series Hybrid Pure Sine Wave Systems
The Photonic Universe Parallel Connection Kit (KMS-PARKIT-24) is designed to significantly enhance the power output and versatility of your Iconica 24V off-grid solar system. This essential kit allows you to connect multiple identical Iconica 24V KMS series or Iconica 24V Zero Transfer (ZT) series hybrid pure sine wave inverters in parallel, creating a more robust and scalable power solution.
By linking up to nine compatible Iconica 24V inverters, you can dramatically increase the total system power handling capability, making it suitable for higher demand applications. Furthermore, this kit enables the connected inverters to operate in either single-phase or three-phase modes, offering flexibility for both domestic and industrial power requirements.
IMPORTANT NOTE: One parallel connection kit is required for each Iconica inverter you wish to connect in parallel.
Key Features
| ▶ System Power Expansion — Connect up to nine inverters for increased total power output. |
| ▶ Single & Three-Phase Operation — Configure your parallel system for versatile power delivery. |
| ▶ Dedicated 24V Compatibility — Specifically designed for Iconica 24V KMS and ZT series hybrid inverters. |

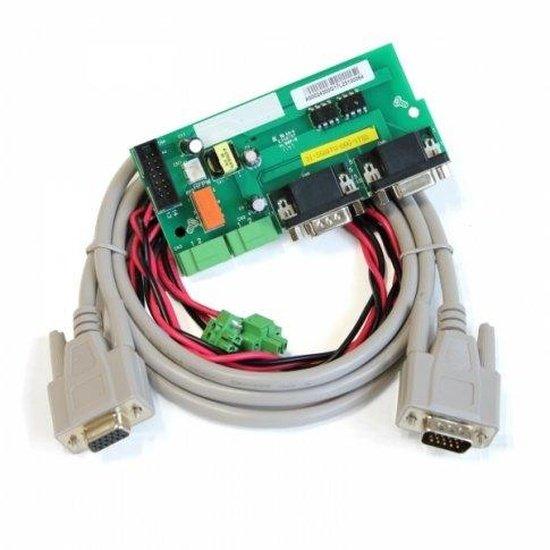

| ▶ Complete Kit Components — Includes circuit board, communication cable, and current sharing cable. |
| ▶ Scalable & Flexible — Ideal for growing off-grid or backup power needs. |
Technical Specifications
| Parameter | Value |
|---|---|
| Product Model | KMS-PARKIT-24 |
| Compatible Inverter Series | Iconica 24V KMS & ZT Series |
| Maximum Parallel Units | 9 Inverters |

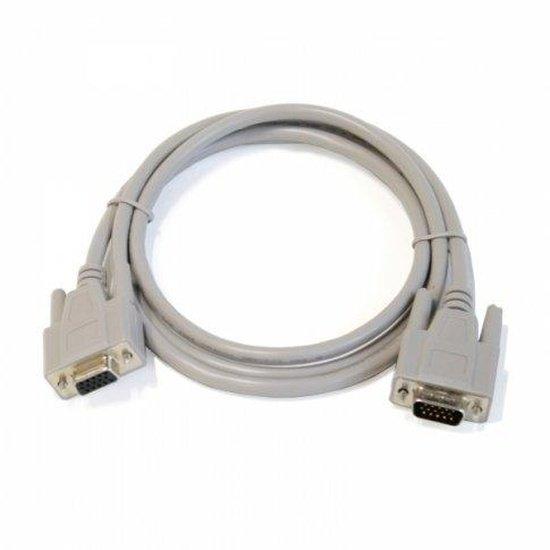

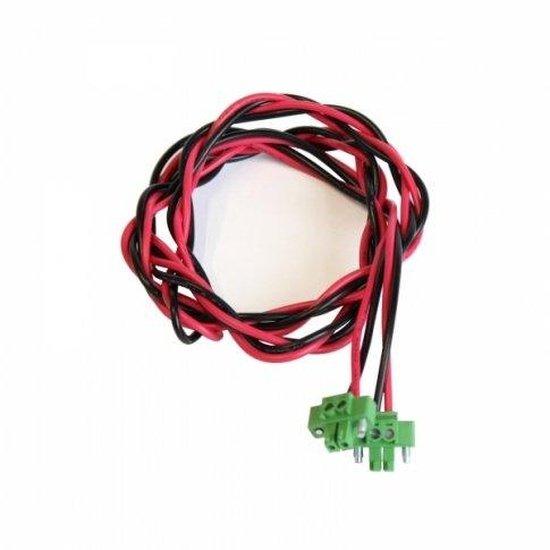

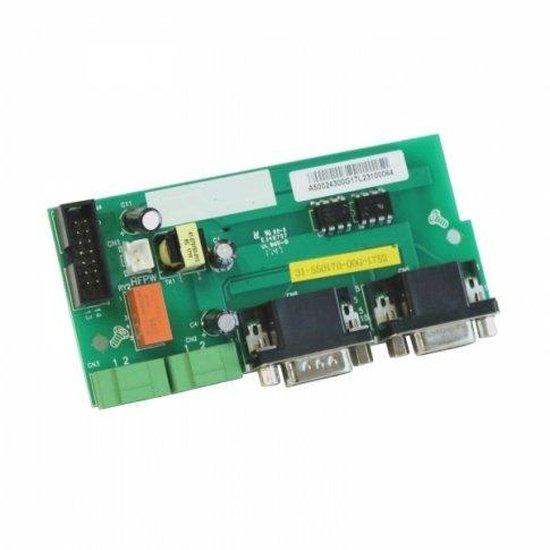

| Kit Components Included | Circuit Board, Comm. Cable, Current Sharing Cable |
| Manufacturer | Photonic Universe |
Operating & Power Guidance
This parallel connection kit unlocks advanced operational modes for your Iconica 24V KMS or ZT series hybrid inverters. By connecting multiple units, you can achieve significantly higher continuous power output and surge capabilities, which is crucial for running larger loads or appliances with high startup currents.
The kit also enables the configuration of your inverter system for either single-phase or three-phase output. Single-phase operation is standard for most residential and light commercial applications, while three-phase capability is essential for powering industrial machinery and heavy-duty equipment. This flexibility ensures your solar power system can adapt to diverse energy demands.
Typical Applications
| Application | Description |
|---|---|
| Large Off-Grid Homes | Provides sufficient power for multiple appliances and higher energy consumption in remote properties. |
| Small Businesses & Workshops | Supports a wider range of tools and equipment, including those requiring three-phase power. |
| Backup Power Systems | Enhances resilience and capacity for critical loads during mains power outages. |
| Industrial Equipment | Enables the use of three-phase machinery in off-grid or grid-tied systems. |
Common Questions
What is the primary purpose of this parallel connection kit?
This kit allows you to connect multiple identical Iconica 24V KMS or ZT series hybrid inverters in parallel to increase the overall power output and enable single-phase or three-phase operation for your solar system.
How many inverters can I connect using this kit?
You can connect a maximum of nine (9) identical Iconica 24V KMS or ZT series inverters together in parallel.
Is this kit compatible with all Iconica inverters?
No, this kit is specifically designed for and only compatible with identical Iconica 24V KMS series and Iconica 24V Zero Transfer (ZT) series hybrid pure sine wave inverters. It is not compatible with other Iconica inverter ranges.
Do I need one kit per inverter?
Yes, one parallel connection kit is required for each Iconica inverter you intend to connect in parallel. For example, if you are connecting two inverters, you will need two kits.
Installation Notes
- Refer to Manual: Always follow the detailed user manual supplied with the parallel connection kit for precise wiring and operational instructions.
- Identical Inverters: Ensure all inverters being connected in parallel are identical models and firmware versions for optimal performance and safety.
- Professional Installation: For complex setups or if unsure, consider consulting a qualified electrician or solar installer.
- Safety First: Disconnect all power sources before attempting any installation or wiring changes.
Before You Buy
- Verify Inverter Model: Confirm your existing Iconica inverters are 24V KMS series or 24V ZT series.
- Quantity Required: Remember that one kit is needed for each inverter you plan to connect in parallel.
- System Voltage: This kit is specifically for 24V Iconica systems. Ensure your inverters match this voltage.
- Future Expansion: Plan your system expansion carefully to ensure you purchase the correct number of kits.
Please verify all specifications and compatibility with your specific Iconica inverter models before purchase. Always consult the product manual for detailed installation and operation guidelines.
