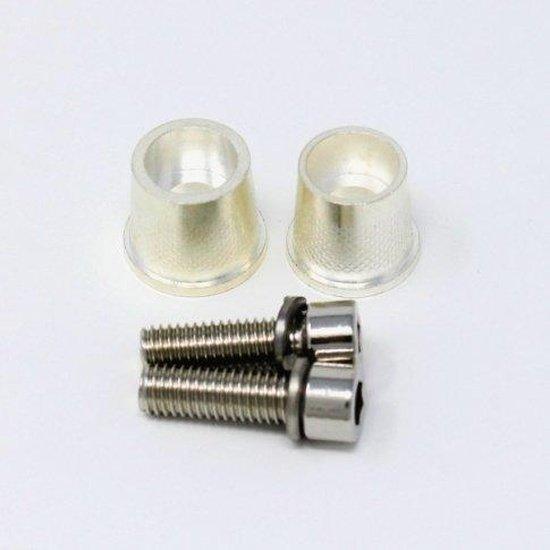

Pair of battery posts with hex socket head M8 bolts designed for batteries with M8 bolt terminals
Pair of battery posts with hex socket head M8 bolts designed for batteries with M8 bolt terminals
Couldn't load pickup availability
M8 Battery Post Adapters (Pair)
Converts M8 Bolt Terminals to Standard Clamp Posts | Hex Socket Head M8 Bolts
This pair of Photonic Universe battery posts provides an essential solution for connecting standard battery clamps to batteries equipped with M8 bolt terminals. Ideal for various renewable energy setups, these adapters allow you to easily utilise existing cables with car-style battery clamps on batteries originally designed for ring terminals or eyelets, such as many AGM or Gel batteries.
Each post is designed for a secure fit, simply replacing the existing M8 bolts on your battery terminals. The positive post is intentionally designed to be slightly larger than the negative post, ensuring correct polarity is observed and maintained during connection, enhancing safety and preventing incorrect wiring.
COMPATIBILITY NOTE: Designed specifically for batteries with M8 bolt terminals.
Key Features
| ▶ Enables Clamp Connections — Converts M8 bolt terminals to standard battery posts for clamp-style cables. |
| ▶ M8 Bolt Compatibility — Specifically designed for batteries with M8 threaded terminals. |
| ▶ Clear Polarity Indication — Positive post is slightly larger to help prevent incorrect connections. |
| ▶ Durable Construction — Provides a robust and reliable connection point for your battery system. |
| ▶ Easy Installation — Simple bolt-on design allows for quick and straightforward setup. |
Technical Specifications
| Parameter | Value |
|---|---|
| Bolt Thread: | M8 |
| Hex Head Size: | 6mm |
| Bolt Length: | 32mm |
| Post Height: | 20mm |

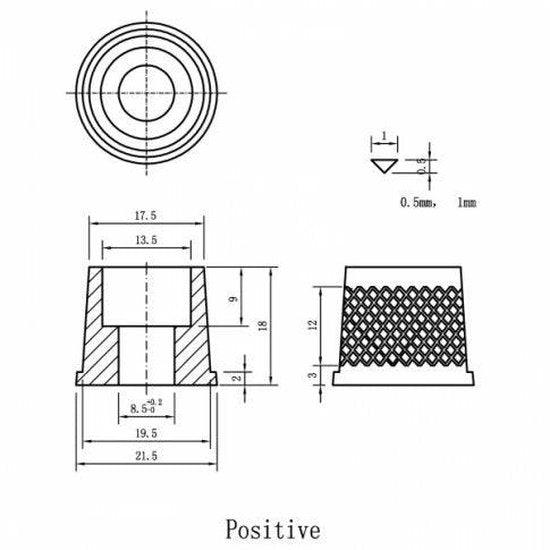

| Positive Post Bottom Diameter: | 21.5mm |
| Positive Post Top Diameter: | 17.5mm |

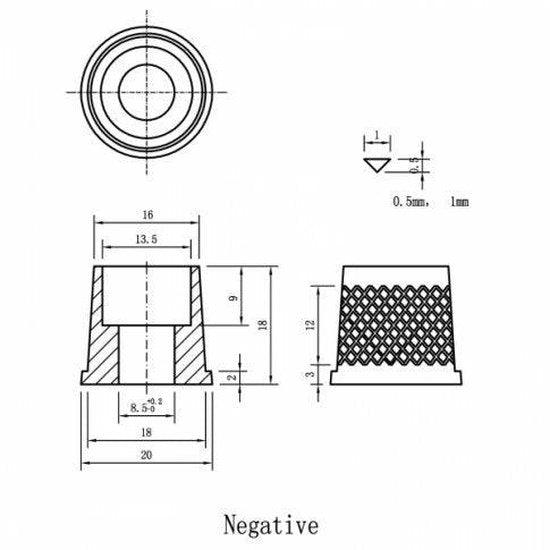

| Negative Post Bottom Diameter: | 20mm |
| Negative Post Top Diameter: | 16mm |
Typical Applications
| Application | Description |
|---|---|
| Off-Grid Solar Systems | Connecting batteries with M8 terminals to charge controllers or inverters using standard clamp cables. |
| Caravan & Motorhome | Facilitating easy connection of leisure batteries to vehicle electrical systems or accessories. |
| Marine Applications | Adapting marine batteries with M8 terminals for use with standard boat electrical connections. |
| Backup Power Systems | Ensuring compatibility between UPS or emergency power batteries and various power equipment. |
Design & Safety Considerations
These battery posts are designed for straightforward and secure connections. The M8 bolt thread ensures compatibility with a wide range of batteries, while the 6mm hex socket head allows for firm tightening. A key safety feature is the distinct sizing of the positive and negative posts, which helps prevent accidental reverse polarity connections during installation. Always ensure connections are tight and secure to maintain optimal electrical contact and prevent arcing or overheating.
Common Questions
What type of batteries are these posts compatible with?
These battery posts are designed for use with batteries that have M8 bolt terminals. This often includes many AGM, Gel, and some Lithium batteries. Always verify your battery's terminal size before purchase.
Why is the positive post slightly larger?
The positive post is intentionally made slightly larger to serve as a visual and physical indicator for correct polarity. This design helps prevent accidental reverse connections, which can damage batteries or connected equipment.
Can I use these with any standard battery clamp?
Yes, these posts are designed to convert M8 bolt terminals into standard tapered posts, allowing you to connect cables equipped with typical car-style battery clamps.
How do I install these battery posts?
Simply remove the existing M8 bolts from your battery terminals. Then, attach these posts by screwing them into the M8 threaded holes, ensuring they are tightened securely using a 6mm hex key. Always observe correct polarity.
Installation Notes
- Ensure your battery has M8 bolt terminals before attempting installation.
- Use a 6mm hex key to securely tighten the M8 bolts into the battery terminals.
- Always observe correct polarity when connecting the posts to the battery and then attaching cables.
- Regularly inspect connections for tightness and corrosion to ensure optimal performance.
- Disconnect the battery before installing or removing these posts to prevent electrical hazards.
Before You Buy
- Verify that your battery specifically uses M8 bolt terminals for connection.
- Confirm that you require an adapter to connect standard battery clamps to your battery.
- Consider the physical dimensions of the posts (height, diameters) to ensure they fit within your existing battery compartment or setup.
- Ensure you have the necessary tools, such as a 6mm hex key, for installation.
- If unsure about compatibility, consult your battery's manufacturer specifications.
Always verify product specifications and compatibility with your specific battery system before purchase and installation. Solarika recommends professional installation for complex electrical systems.
