Marinco Connect Pro 3-Wire Plug and Socket (12/24V / 40A)

This Marinco ConnectPro 3-wire trolling motor plug and socket system 12VCP is a an advanced concept in trolling motor DC connections. The electric current carrying capacity of the ConnectPro system eliminates problems that rob motors of power and reduce battery life.

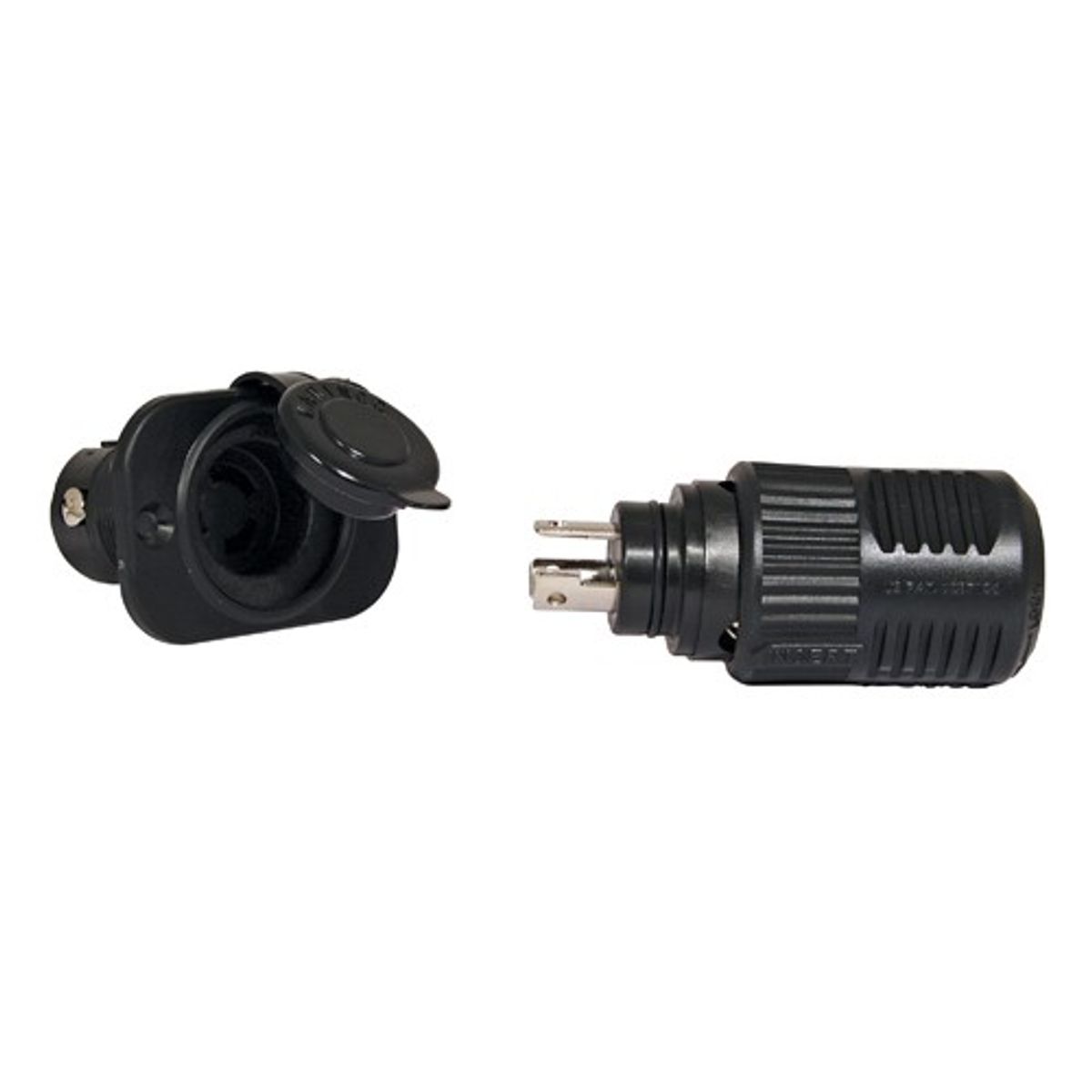

Contains Marinco ConnectPro Receptacle 12VBR and Plug 12VBP packaged together.

Socket:
Universal design for 2 or 3-wire configuration 12V, 24V, 12/24V, 24/36V or 36V systems
Watertight sealing cap
Corrosion resistant, plated brass electrical components
Drain holes in receptacle keep water away from electrical components
Perma-Lock™ screw terminals will not loosen under extreme hull vibration
Standard 1-1/8" diameter mounting hole
Easy to install, with supplied mounting plate for front panel installation, or locking ring for rear access installation
Accepts 10 and 8 AWG wire
Easily replaces other trolling motor plugs and receptacles
Max rating is 40A

Plug:
O-ring seal for waterproof connections
Weather resistant plug cover
Corrosion resistant, plated brass electrical components
Accepts 16 to 8 AWG wire
Ergonomic contoured grip for easy hook-up and ground blade alignment
Max rating is 40A
