Iconica 3000W 24V hybrid pure sine wave inverter with 60A MPPT solar charge controller and 60A mains battery charger
Iconica 3000W 24V hybrid pure sine wave inverter with 60A MPPT solar charge controller and 60A mains battery charger
Couldn't load pickup availability

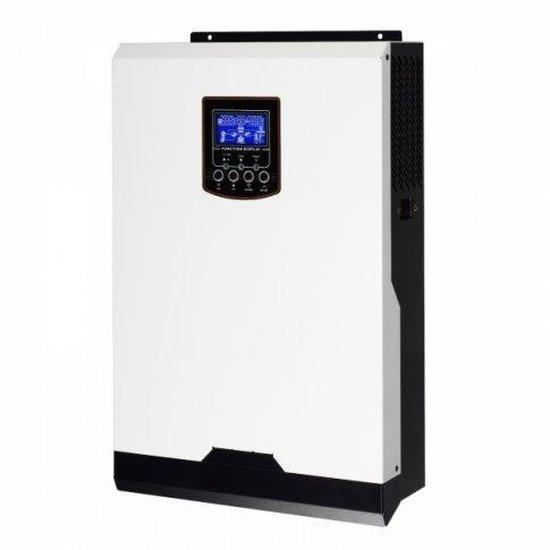

Iconica 3000W 24V Hybrid Pure Sine Wave Inverter
Integrated 60A MPPT Solar Charge Controller | 60A Mains Battery Charger
The Iconica 3000W 24V Hybrid Pure Sine Wave Inverter (SKU: IC-BM3000-24P) from Photonic Universe is a versatile all-in-one solution designed for off-grid power systems and reliable backup. This robust unit intelligently combines a powerful 3000W pure sine wave inverter, a high-efficiency 60A MPPT solar charge controller, and a smart 60A mains battery charger into a single compact device.
Ideal for homeowners, off-grid users, and small businesses in the UK, this hybrid inverter ensures a continuous and stable 230V AC power supply by seamlessly managing input from solar panels, mains electricity, or a generator, and your 24V battery bank. Its pure sine wave output safely powers sensitive electronics and motor-driven appliances.
KEY FUNCTIONALITY: All-in-one unit for off-grid solar, battery charging, and AC power conversion with Uninterrupted Power Supply (UPS) capability.
Key Features
| ▶ Pure Sine Wave Output — Safely powers sensitive electronics and appliances. |
| ▶ Integrated 60A MPPT Controller — Efficiently charges 24V batteries from solar panels. |
| ▶ Smart 60A Mains Charger — Recharges batteries from grid or generator power. |
| ▶ Hybrid Functionality — Seamlessly switches between solar, battery, and grid/generator inputs. |
| ▶ Zero Transfer Time UPS — Provides instant 0ms power transfer during outages. |
| ▶ LCD Display & Customisation — Easy monitoring and configurable settings for various parameters. |
| ▶ Advanced Protections — Safeguards against overcharge, overheating, and short circuits. |
| ▶ Optional Communication — Monitor and manage via PC with optional Wi-Fi/3G kits (PC cable & software CD included). |
Technical Specifications
| Parameter | Value |
|---|---|
| Model | IC-BM3000-24P |
| Continuous Power Output | 3000W / 3000VA |
| Surge Power | 6000VA |
| Nominal Battery Voltage | 24V DC |
| Output Voltage | 230V AC |
| Output Frequency | 50Hz / 60Hz (Auto Sensing) |
| Output Waveform | Pure Sine Wave |
| Max Solar Input Power | 1500W |
| Max PV Open Circuit Voltage | 145V DC |
| MPPT Operating Voltage Range | 30V - 115V DC |
| Max Solar Charging Current | 60A |
| Max Mains AC Charging Current | 60A |
| Max Combined Charging Current | 120A |
| Peak Efficiency | 93% |
| Operating Temperature | -10°C to 50°C |
| Dimensions (L x W x H) | 44cm x 30cm x 10cm |
| Weight | 9.5kg |
Charging & Output Modes
| Mode | Description |
|---|---|
| Solar Priority | Utilises solar power first to supply loads and charge batteries. Mains/generator acts as backup. |
| Utility Priority | Prioritises mains/generator power for loads and battery charging. Solar supplements or acts as backup. |
| Battery Priority | Discharges batteries to power loads, switching to mains/generator only when battery voltage is low. |
| UPS Functionality | Provides uninterrupted power with 0ms transfer time, ensuring critical loads remain powered during grid failures. |
Typical Applications
| Application | Description |
|---|---|
| Off-Grid Homes & Cabins | Provides reliable electricity for remote properties without mains grid access. |
| Mobile Installations | Suitable for caravans, motorhomes, yachts, and narrowboats, offering power on the go. |
| Backup Power Systems | Ensures essential appliances run during power cuts or unreliable grid supply. |
| Workshops & Sheds | Powers tools and lighting where mains connection is impractical or costly. |
Built-In Protection Functions
This Iconica hybrid inverter incorporates multiple safety features to protect your system and connected appliances. These include protection against battery overcharge, deep discharge, overheating, overload, short circuit, and reverse current. An auto-restart function is also included for convenience after certain fault conditions.
Common Questions
What is a hybrid inverter?
A hybrid inverter combines the functions of a solar inverter, a battery charger, and an AC inverter into one unit. It can manage power from solar panels, batteries, and the grid/generator to provide continuous AC power to your loads.
Can this inverter power sensitive electronics?
Yes, this Iconica inverter produces a pure sine wave output, which is identical to grid power. This makes it safe and suitable for powering all types of electronic devices, including sensitive equipment like laptops, medical devices, and power tools.
What battery types are compatible with this inverter?
This hybrid inverter is compatible with 24V flooded, sealed GEL/AGM lead-acid battery banks, offering pre-defined charging programs. It also features a user-defined battery type setting for custom configuration with other lead-acid battery types.
Is this inverter suitable for grid-tied systems?
No, the Iconica 3000W 24V Hybrid Inverter is designed for off-grid applications or as a backup power solution. It is not intended for grid-tied systems that feed power back into the national grid.
Installation Notes
- Installation should be performed by a qualified electrician or solar professional.
- Ensure adequate ventilation around the inverter to prevent overheating.
- Use appropriate cabling and fusing as specified in the user manual to match current ratings.
- Verify correct battery polarity before connecting to avoid damage.
- Mount the inverter in a dry, protected location, away from direct sunlight and moisture.
Before You Buy
- Confirm your total power requirements (continuous and surge) to ensure 3000W is sufficient.
- Check your battery bank voltage is 24V DC and compatible with lead-acid charging profiles.
- Verify your solar panel array's maximum open circuit voltage (Voc) and power (Wp) are within the inverter's limits.
- Consider future expansion needs, as this model does not support parallel operation.
- Review the full user manual for detailed installation and operation instructions.
Please verify all specifications and compatibility requirements with your system design before purchase. Specifications are subject to change by the manufacturer.
