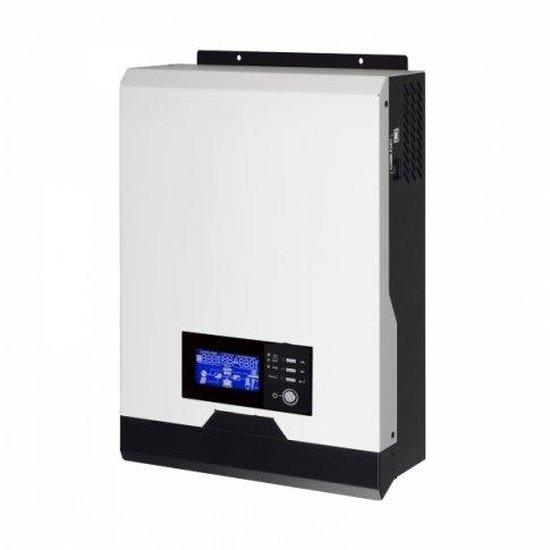

Iconica 2000W 24V Hybrid Pure Sine Wave Inverter
Integrated 40A MPPT Solar Controller & 20A Mains Charger | SKU: IC-BM2000-24
The Iconica 2000W 24V Hybrid Inverter, SKU IC-BM2000-24 by Photonic Universe, is a versatile all-in-one power solution designed for off-grid and backup applications. This unit intelligently combines a 2000W pure sine wave inverter, a 40A MPPT solar charge controller, and a 20A smart battery charger into a single, portable device. It can draw power from solar panels, mains electricity, a generator, or a battery, either individually or in combination, offering exceptional flexibility for various energy needs.
Equipped with an Uninterrupted Power Supply (UPS) function, this hybrid inverter ensures a seamless and reliable power supply, making it ideal for locations with unreliable or intermittent mains power. Its advanced communication features and highly customisable settings provide users with extensive control over their energy system. It is suitable for both stationary and mobile installations, including remote properties, holiday homes, narrowboats, and as a robust backup system during power cuts.
ALL-IN-ONE HYBRID DESIGN: Combines 2000W Pure Sine Wave Inverter, 40A MPPT Solar Controller, and 20A Mains Charger.
Key Features
| ▶ Pure Sine Wave Output — Safely powers sensitive electronics and appliances. |
| ▶ Integrated 40A MPPT Controller — Maximises solar energy harvest with up to 98% efficiency. |
| ▶ 20A Smart Mains Charger — Provides multi-stage, safe, and efficient battery charging from grid or generator. |
| ▶ Uninterrupted Power Supply (UPS) — Ensures continuous power during outages or unstable mains. |
| ▶ Customisable Settings — Personalise AC input range, battery type, charging currents, and more. |
| ▶ Flexible Power Source Priority — Set preferences for solar, battery, mains, or generator output. |
| ▶ Illuminated LCD Display — Real-time monitoring of vital system statistics. |
| ▶ PC Monitoring Software — View and export data logs via included PC connection kit. |
Technical Specifications
| Parameter | Value |
|---|---|
| Nominal Battery Voltage | 24V |
| Continuous Power Output | 2000W / 2000VA |
| Surge Power | 4000VA |
| Output Voltage | 230V AC |
| Output Frequency | 50Hz/60Hz |
| Output Waveform | Pure Sine Wave |
| Max Solar Input Power | 1000W |
| Max Open Circuit Solar Input Voltage | 102V |
| Max Solar Charging Current | 40A |
| MPPT Operating Voltage Range | 30V to 80V |
| Max Mains AC Charging Current | 20A |
| Max Combined Charging Current | 60A |
| Peak Efficiency | 93% |
| Operating Temperature | -10°C to 50°C |
| Dimensions (L x W x H) | 32 x 22.5 x 8.8 cm |
| Weight | 5.5 kg |
Charging & Output Modes
| Feature | Description |
|---|---|
| Output Source Priority | Allows users to prioritise AC load output from solar power, battery power, mains input, or a generator, adapting to various conditions. |
| Battery Charging Priority | Offers options to charge batteries using solar power only, a combination of solar and mains power, or from mains power only. |
| Customisable Settings | Extensive personalisation of parameters including AC input range, battery type, max charging current, voltage disconnect points, and power saving mode. |
Typical Applications
| Application | Description |
|---|---|
| Off-Grid Homes & Cabins | Provides reliable power for remote properties with limited or no access to mains electricity. |
| Mobile Installations | Ideal for narrowboats, yachts, caravans, and motorhomes requiring a stable power supply on the move. |
| Backup Power Systems | Acts as a dependable UPS during frequent power cuts or grid instability. |
| Reducing Mains Usage | Helps homeowners reduce reliance on grid electricity and save on energy bills. |
Built-In Protection Functions
The Iconica 2000W 24V Hybrid Inverter incorporates a comprehensive range of safety features for reliable operation. These include protection against overcharge, overheating, and reverse current. An intelligent cooling design with predictive fan logic ensures optimal operational temperature, with 1 or 2 fans operating at variable speeds. The auto-restart function automatically reconnects loads once safe conditions are detected after an overload or overheating event.
Common Questions
What types of batteries are compatible with this inverter?
This hybrid inverter is suitable for 24V flooded and sealed GEL/AGM lead-acid batteries, with pre-defined charging programs. It also supports user-defined battery types, allowing for customisable settings for other lead-acid battery chemistries.
Can this inverter power sensitive electronic equipment?
Yes, the Iconica 2000W 24V inverter produces a pure sine wave output. This clean and stable power is safe and highly compatible with a wide range of household appliances, including sensitive electronics like laptops, TVs, and medical equipment.
Does it offer remote monitoring capabilities?
The inverter comes with a PC connection cable and software for local monitoring. Additionally, it can send data to an online user portal via an optional Wi-Fi connection kit, mobile app Wi-Fi kit, or 3G connection kit (sold separately), enabling remote system monitoring and status updates.
What is the maximum solar input power it can handle?
The integrated 40A MPPT solar charge controller can manage a maximum solar input power of 1000W, with a maximum open circuit solar input voltage of 102V.
Installation Notes
- Review the detailed user manual thoroughly before installation.
- Ensure adequate ventilation around the unit to prevent overheating.
- Installation should ideally be performed by a qualified professional.
- Verify all wiring connections are secure and correctly polarised.
- Consider the inverter's fan noise if installing in quiet environments.
Before You Buy
- Confirm your battery bank is a 24V system.
- Calculate your total load requirements to ensure 2000W continuous power is sufficient.
- Check your solar panel array specifications (max 1000W, max 102V VOC) for compatibility.
- Measure the installation space to ensure the inverter's dimensions (32 x 22.5 x 8.8 cm) are suitable.
- Understand that optional Wi-Fi/3G kits are required for remote monitoring.
Please verify all specifications and compatibility requirements for your specific application before purchase. This product is covered by a 1-year manufacturer warranty.
