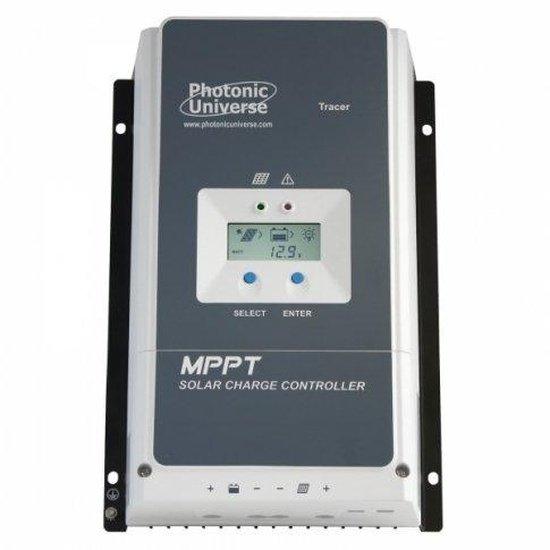

High Efficiency 60A MPPT Solar Charge Controller
Model: PTR6415AN | 12V/24V/36V/48V Systems | Max 150V PV Input
The Photonic Universe 60A MPPT Solar Charge Controller (model PTR6415AN) is engineered for optimal energy harvest from your solar panels, making it an ideal choice for various off-grid and hybrid solar power systems. Utilising advanced Maximum Power Point Tracking (MPPT) technology, this controller continuously tracks the optimal power voltage point of solar panels, adapting to changes in sunlight and temperature to ensure maximum efficiency.
Designed for versatility, it supports 12V, 24V, 36V, and 48V battery systems and can handle solar panel arrays with voltages up to 150V. This wide input voltage range allows for greater flexibility in solar panel configuration, including the use of higher voltage on-grid panels in off-grid setups.
POWER RATING: Supports up to 750W (12V), 1500W (24V), 2250W (36V), or 3000W (48V) solar input.
Key Features
| ▶ Advanced MPPT Technology — Ensures over 95% efficiency for maximum energy harvest. |
| ▶ Multi-Voltage Compatibility — Automatically recognises 12V, 24V, 36V, and 48V battery systems. |
| ▶ Wide PV Input Range — Accepts solar panel voltages up to 150V, ideal for diverse panel configurations. |
| ▶ Lithium Battery Support — Compatible with lithium batteries via PC software or mobile app configuration. |
| ▶ Integrated LCD Display — Provides real-time charging parameters and system status at a glance. |
| ▶ Comprehensive Protection — Features multiple electronic safeguards for system longevity and safety. |
| ▶ Parallel Connection Capability — Allows for system expansion by connecting multiple identical controllers. |
| ▶ Remote Monitoring Options — Supports remote meter, Wi-Fi module, and PC connection for advanced control. |
Technical Specifications
| Parameter | Value |
|---|---|
| Rated Charge Current | 60A |
| System Voltage | 12V/24V/36V/48V Auto |
| Max. PV Input Voltage | 150V |
| Max. PV Input Power (12V) | 750W |
| Max. PV Input Power (24V) | 1500W |
| Max. PV Input Power (36V) | 2250W |
| Max. PV Input Power (48V) | 3000W |
| Efficiency | >95% |
| Communication Port | RS485/RJ45 Interface |
| Grounding | Negative Common Ground |
| Current Limiting Function | 60A |
| Self-Consumption (12V) | 98mA |
| Self-Consumption (24V) | 60mA |
| Self-Consumption (36V) | 50mA |
| Self-Consumption (48V) | 46mA |
| Working Temperature | -25°C to +60°C |
| Dimensions (L x W x H) | 340 x 216 x 119 mm |
| Mounting Dimensions | 260 x 224 mm |
| Weight | 4.5kg |
Charging & Battery Modes
The Photonic Universe 60A MPPT controller offers flexible charging programs to suit various battery chemistries, ensuring optimal performance and extended battery life.
| Battery Type | Charging Program |
|---|---|
| Lead-Acid Batteries | Automatic 12V/24V/36V/48V selection with selectable programs for Sealed, Flooded, and Gel types. Features a 3-stage charging algorithm (Bulk, Constant, Float). |
| Lithium Batteries | Compatible when a specific lithium battery charging program is selected using PC software or a mobile app. |
| User-Defined | Supports custom settings for lead-acid battery models requiring specific parameters. |
The controller also features a socket for connecting a remote temperature sensor to measure battery temperature precisely and optimise the charging process.
Typical Applications
| Application | Description |
|---|---|
| Off-Grid Homes & Cabins | Efficiently charges battery banks for standalone power systems, providing reliable electricity where grid connection is unavailable. |
| Motorhomes, Caravans & Boats | Manages solar input to leisure batteries, ensuring consistent power for onboard appliances and extending battery lifespan. |
| Remote Monitoring Stations | Powers critical equipment in remote locations, such as weather stations, security cameras, or telecommunication relays. |
| Small Business & Workshop Power | Provides a robust solution for supplementary power or backup systems in small commercial settings. |
Built-In Protection Functions
This Photonic Universe MPPT charge controller incorporates a comprehensive suite of electronic protection features to safeguard your solar system. These include reverse current prevention at night (from battery to solar panel), automatic cut-off to prevent over-charging and deep discharge, solar panel over-voltage protection, and short-circuit protection. Additionally, it features an automatic over-temperature power reduction function (derating above 40°C) and self-diagnostic capability to highlight any system errors using advanced fault-targeting technology.
Common Questions
What is MPPT technology and why is it beneficial?
MPPT (Maximum Power Point Tracking) technology optimises the power output from your solar panels by continuously adjusting the operating point to extract the maximum available energy. This results in significantly higher efficiency compared to traditional PWM controllers, especially in varying weather conditions or when panel voltage is higher than battery voltage.
Can this controller be used with lithium batteries?
Yes, this controller is compatible with lithium batteries. To enable this, a specific lithium battery charging program must be selected using the provided PC software or a mobile application. Always ensure your battery's BMS (Battery Management System) is compatible with the controller's charging parameters.
How can I monitor the system remotely?
The controller offers multiple connectivity options for remote monitoring and parameter adjustment. You can connect it to a remote meter with an LCD screen, a Wi-Fi module for a free mobile app, or directly to a PC/laptop via a USB cable and free computer program. These methods provide access to detailed system data and settings.
Is it possible to expand the solar system in the future?
Yes, this controller features a current limiting function (60A) and parallel connection capability. This allows for the addition of more solar panels or identical controllers in the future to increase your system's charging capacity, provided the battery bank can accept the combined current.
Installation Notes
- Ensure adequate ventilation around the controller; a minimum of 150mm clearance above and below is recommended for proper airflow.
- Always connect the battery to the controller first before connecting solar panels to ensure correct system voltage recognition.
- Use appropriate wire sizes for solar panels and battery connections to minimise voltage drop and ensure safe operation. Refer to local regulations and the user manual for guidance.
- This controller features negative common grounding. Ensure proper grounding practices are followed according to your system design and local electrical codes.
Before You Buy
- Verify your total solar panel array power and voltage (Voc and Vmp) are within the controller's specified limits (up to 3000W / 150V).
- Confirm your battery bank voltage (12V, 24V, 36V, or 48V) matches the controller's auto-detection range.
- For lithium batteries, ensure you have the necessary PC software or mobile app for programming the charging profile.
- Consider any additional accessories needed for remote monitoring, such as a remote meter, Wi-Fi module, or USB cable.
- Review the detailed user manual for comprehensive wiring diagrams and operational instructions.
Always consult the manufacturer's specifications and user manual for precise installation, operation, and compatibility details. This product is covered by a 1-year manufacturer's warranty.
