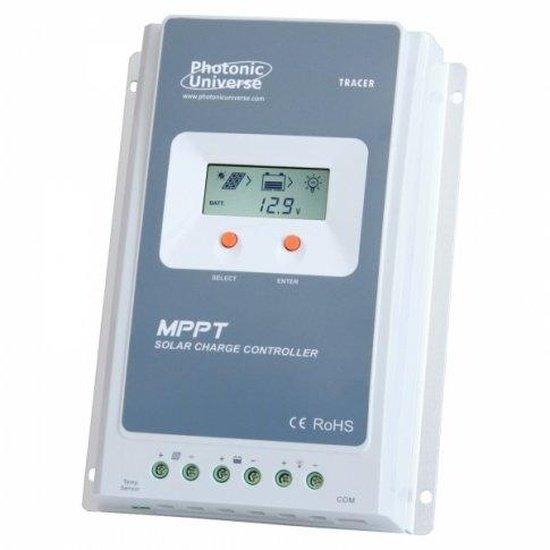

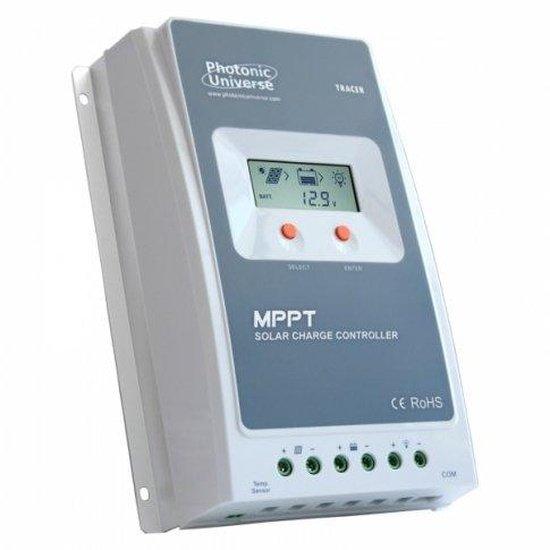

High efficiency 40A MPPT solar charge controller for solar panels up to 520W (12V) / 1040W (24V) up to 100V
High efficiency 40A MPPT solar charge controller for solar panels up to 520W (12V) / 1040W (24V) up to 100V
Couldn't load pickup availability
High Efficiency 40A MPPT Solar Charge Controller
Advanced MPPT Technology | 12V/24V Auto-Detect | Up to 1040W PV Input

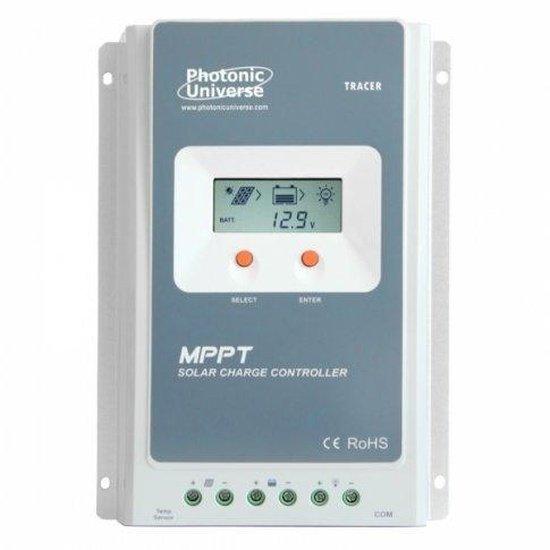

The Photonic Universe PTR4210AN is a high-efficiency 40A MPPT solar charge controller designed to optimise power harvest from your solar panels. Utilising advanced Maximum Power Point Tracking (MPPT) technology, this controller ensures your solar system operates at peak efficiency, significantly outperforming standard PWM controllers. It automatically detects 12V or 24V battery systems and can handle solar panel arrays up to 520W for 12V systems or 1040W for 24V systems, with a maximum open-circuit voltage of 100V.
Ideal for a wide range of off-grid and grid-tied solar applications, the PTR4210AN is particularly effective when solar panel voltage is considerably higher than the battery voltage, such as charging a 12V battery with 36V solar panels. Its comprehensive electronic protection features and advanced monitoring capabilities provide a robust and reliable solution for managing your solar power system.
MPPT EFFICIENCY: Achieves greater than 99.5% tracking efficiency and up to 98% conversion efficiency for optimal energy yield.
Key Features
| ▶ Advanced MPPT Technology — Maximises solar energy harvest with high tracking and conversion efficiency. |
| ▶ 40A Current Limiting — Allows for future expansion of your solar panel array. |
| ▶ 12V/24V Auto-Detection — Automatically recognises system voltage for lead-acid batteries. |
| ▶ Wide PV Input Range — Supports solar panels up to 100V open-circuit voltage. |
| ▶ Multi-Battery Compatibility — Supports Sealed, Gel, Flooded, and user-defined lead-acid batteries, plus programmable lithium battery settings. |
| ▶ Integrated LCD Display — Shows real-time charging parameters and system status. |
| ▶ Multiple Communication Options — Connects to remote meter, Wi-Fi module, or PC for advanced monitoring and programming. |
| ▶ Comprehensive Protection — Features full electronic safeguards for system longevity. |
Technical Specifications
| Parameter | Value |
|---|---|
| Nominal System Voltage | 12V / 24V Auto |
| Rated Charge Current | 40A |
| Max. PV Input Power (12V) | 520W |
| Max. PV Input Power (24V) | 1040W |
| Max. PV Open Circuit Voltage | 100V |
| MPPT Tracking Efficiency | >99.5% |
| Conversion Efficiency | Up to 98% |
| Self-Consumption | <12mA |
| Operating Temperature | -25°C to +50°C |
| Dimensions (L x W x H) | 25.2 x 18 x 6.3 cm |
| Weight | 1.65kg |
Charging & Battery Modes
The Photonic Universe PTR4210AN offers flexible charging for various battery types, ensuring optimal performance and longevity for your energy storage system.
| Battery Type | Charging Programme |
|---|---|
| Lead-Acid (Sealed, Gel, Flooded) | Pre-programmed 3-stage charging algorithm (Bulk, Boost, Float) with automatic 12V/24V detection. |
| Lithium Batteries | Compatible via PC software or mobile app for setting specific charging parameters. |
| User-Defined | Customisable charging parameters for specific battery requirements via PC software. |
The controller includes a temperature sensor for automatic compensation of charging parameters for lead-acid batteries. A remote temperature sensor socket is also available for more precise battery temperature measurement.
Typical Applications
| Application | Description |
|---|---|
| Off-Grid Solar Systems | Efficiently charges batteries in remote cabins, sheds, and standalone power setups. |
| Caravans & Motorhomes | Manages solar input to leisure batteries for reliable mobile power. |
| Marine Vessels | Provides stable charging for boat battery banks from solar panels. |
| Small Business & Telecoms | Supports backup power systems and remote monitoring stations. |
Built-In Protection Functions
The Photonic Universe PTR4210AN is equipped with a comprehensive suite of electronic protection features to safeguard your solar system components and ensure safe operation. These include: Reverse Current Prevention (at night from battery to solar panel) • Over-Charging Protection • Deep Discharge Protection • Solar Panel Overvoltage Protection • Overload Protection • Short Circuit Protection • Reverse Polarity Protection. The controller also features self-diagnostic capabilities to highlight system errors.
Common Questions
What is MPPT technology and why is it beneficial?
MPPT (Maximum Power Point Tracking) technology allows the controller to continuously find and track the optimal voltage and current point of your solar panels. This ensures maximum power extraction from the PV array, leading to significantly higher charging efficiency compared to traditional PWM controllers, especially in varying weather conditions or when panel voltage is higher than battery voltage.
Can this controller charge lithium batteries?
Yes, the Photonic Universe PTR4210AN is compatible with lithium batteries. To enable lithium battery charging, you will need to select the appropriate charging program using the PC software or mobile app. This allows for customisation of charging parameters specific to your lithium battery type.
What communication options are available for monitoring?
The controller offers multiple communication methods: it can connect to an optional MT50 remote meter, a Wi-Fi module for mobile app monitoring (Android/iOS), or directly to a PC/laptop via an RJ45 to USB cable for monitoring and programming with the free Solar Station Monitor software.
What is the maximum solar panel input voltage?
This 40A MPPT solar charge controller can accept a maximum solar panel open-circuit voltage (Voc) of 100V. This wide input voltage range provides flexibility in solar panel configuration.
Installation Notes
- Mount the controller indoors in a well-ventilated area to ensure adequate heat dissipation.
- Always connect the battery to the controller first before connecting solar panels.
- Ensure all power connections are tight to prevent excessive heating.
- Install appropriate external fuses/breakers as recommended by local electrical codes.
- The controller features negative common grounding.
Before You Buy
- Verify your total solar panel power and voltage (Voc) are within the controller's limits (520W/12V, 1040W/24V, 100V Voc).
- Confirm your battery type and ensure it is compatible or programmable with this controller.
- Consider any optional accessories like the remote meter or Wi-Fi module for enhanced monitoring.
- Review the user manual for detailed wiring diagrams and operational instructions.
- Ensure sufficient space for mounting and ventilation.
Please verify all specifications and compatibility requirements for your specific solar system before purchase. Product specifications are subject to change by the manufacturer. This product is typically supplied with a 1-year manufacturer's warranty.
