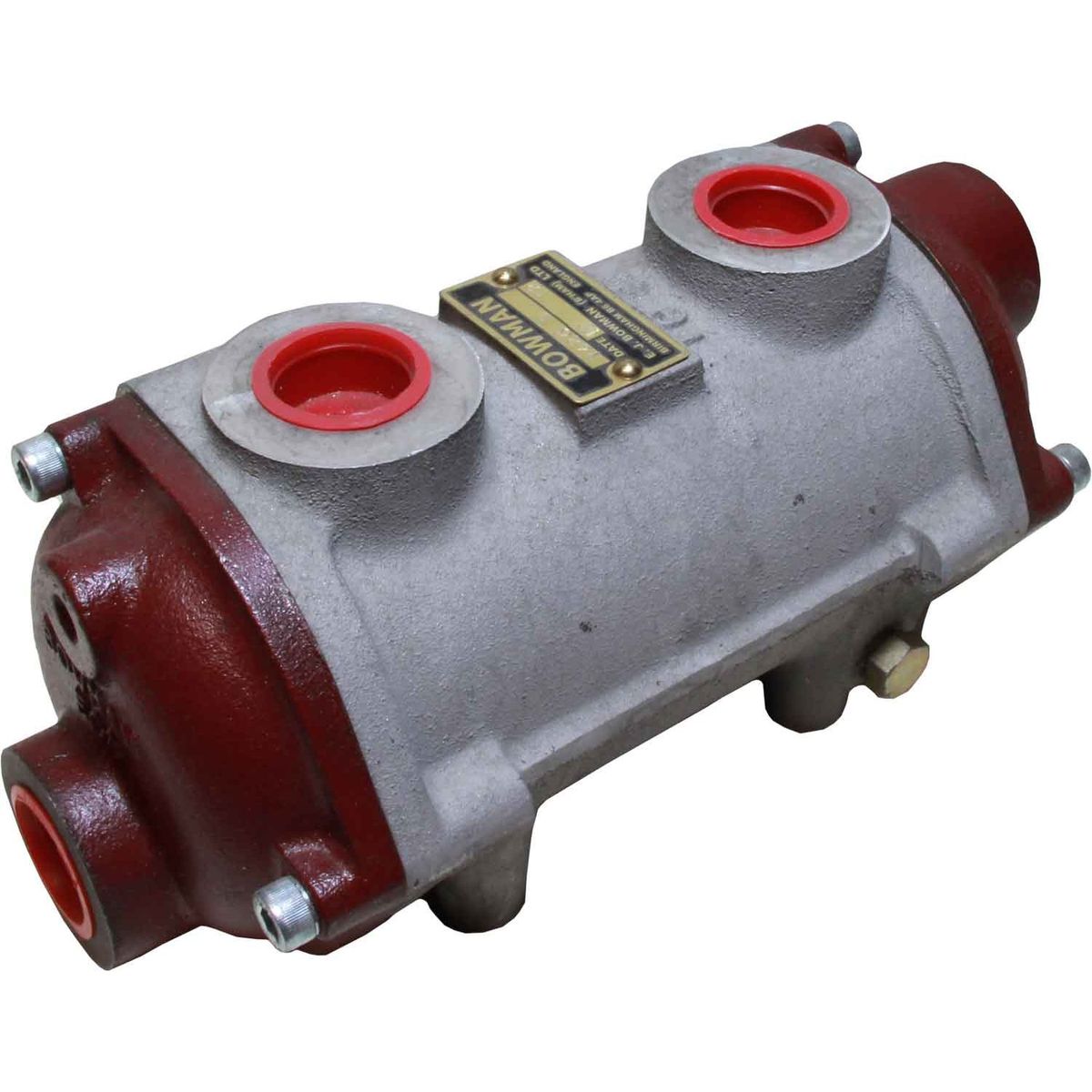

Bowman FC80 Hydraulic Oil Cooler (1" BSP Oil / 1" BSP Water) 203338

Bowman FC80 hydraulic oil cooler heat exchanger is also suitable to be used for heat transfer fluids, lubricating and quenching oils.

Typical Example of oil cooler performance with an oil outlet temperature of 50°C and water inlet temperature of 25°C:
- Hydraulic oil flow: 140 LPM
- Cooling water flow: 140 LPM
- Heat dissipated: 13 kW
- Oil Pressure Drop: 100 kPa
- Head Loss: 50 kPa
