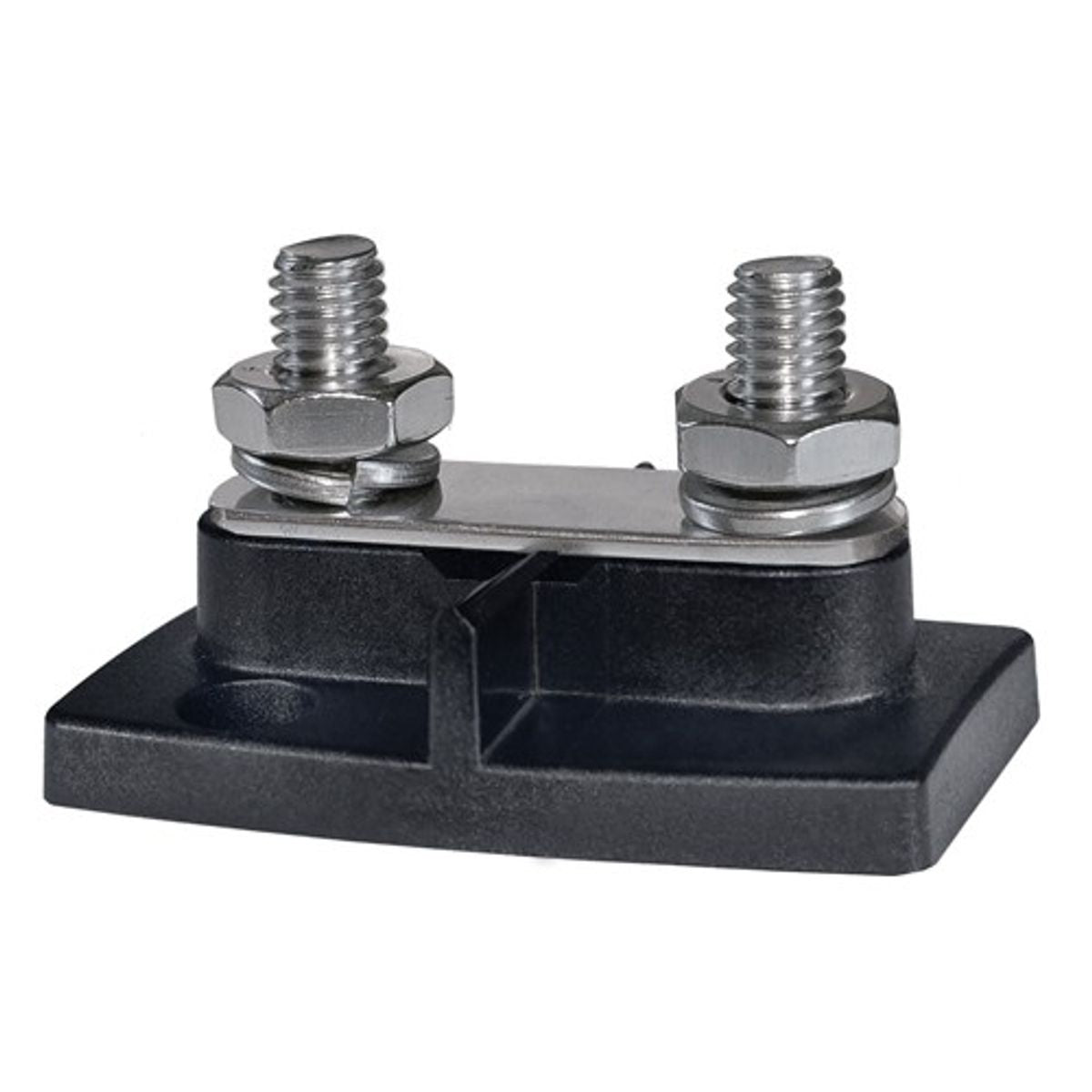

Blue Sea PowerBar Dual Busbar No Cover (2 x 3/8" Connections)

Blue Sea 2020 PowerBar is a common bus. The dual busbar provides compact high-ampere busing with 3/8" terminal studs.

Specifications:
Continuous Rating: Amperage rating is determined by wire amperage capacity connected to the PowerBar up to 200A
Max Voltage Operating: 48 Volts DC
Terminal Size: 3/8"-16 Stud
Mounting Holes: Accepts #10 (M5) Screws
Bus Material: Tin-Plated Copper (CDA 110/UNS11000)
Base Material: Glass Reinforced Thermoplastic (UL 94-V0 Rated)
Stud Torque: 100 in-lb (11.3 Nm)
Approvals: CE & UKCA
