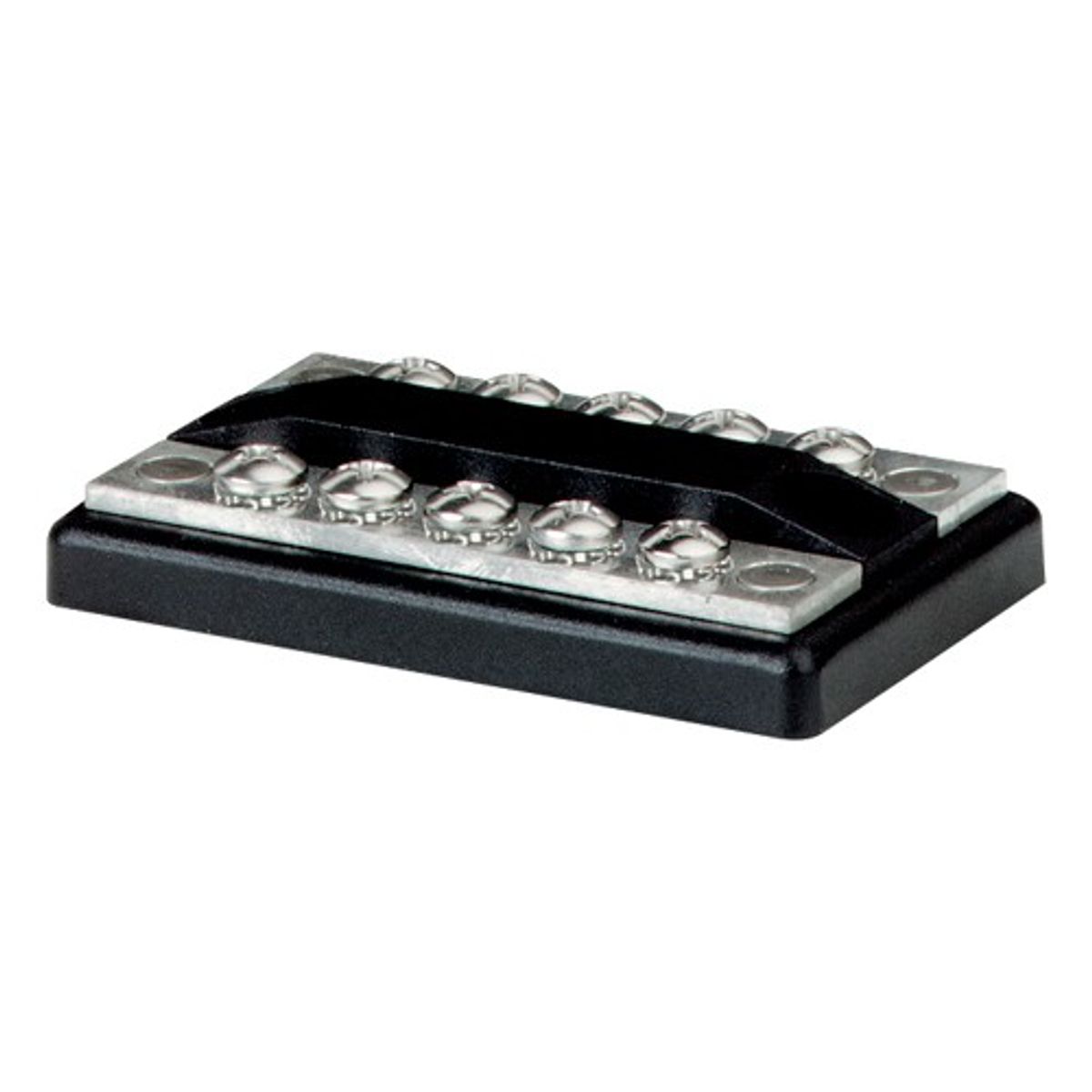

Blue Sea DualBus Positive & Negative Busbar (100A / 5 x #8-32 Screw)

Blue Sea 2701 DualBus 100 amp common busbar combines negative and positive buses on one block. This dual busbar features 5 circuits per bus (10 total).

Specifications:
Continuous Rating: 100 Amps AC & DC
Max Voltage Rating: 300V AC / 48V DC
Number of Screw Terminals: 5 per bus
Terminal Size: #8-32 Screw
Bus Material: Tin-Plated Copper
Base Material: Glass Reinforced Thermoplastic
Screw Terminal Torque: 15 in-lb (1.69 Nm)
Height: 5/8" (15.88mm)
Approvals: CE & UKCA

8-22709 - Insulating cover is available to purchase separately.
