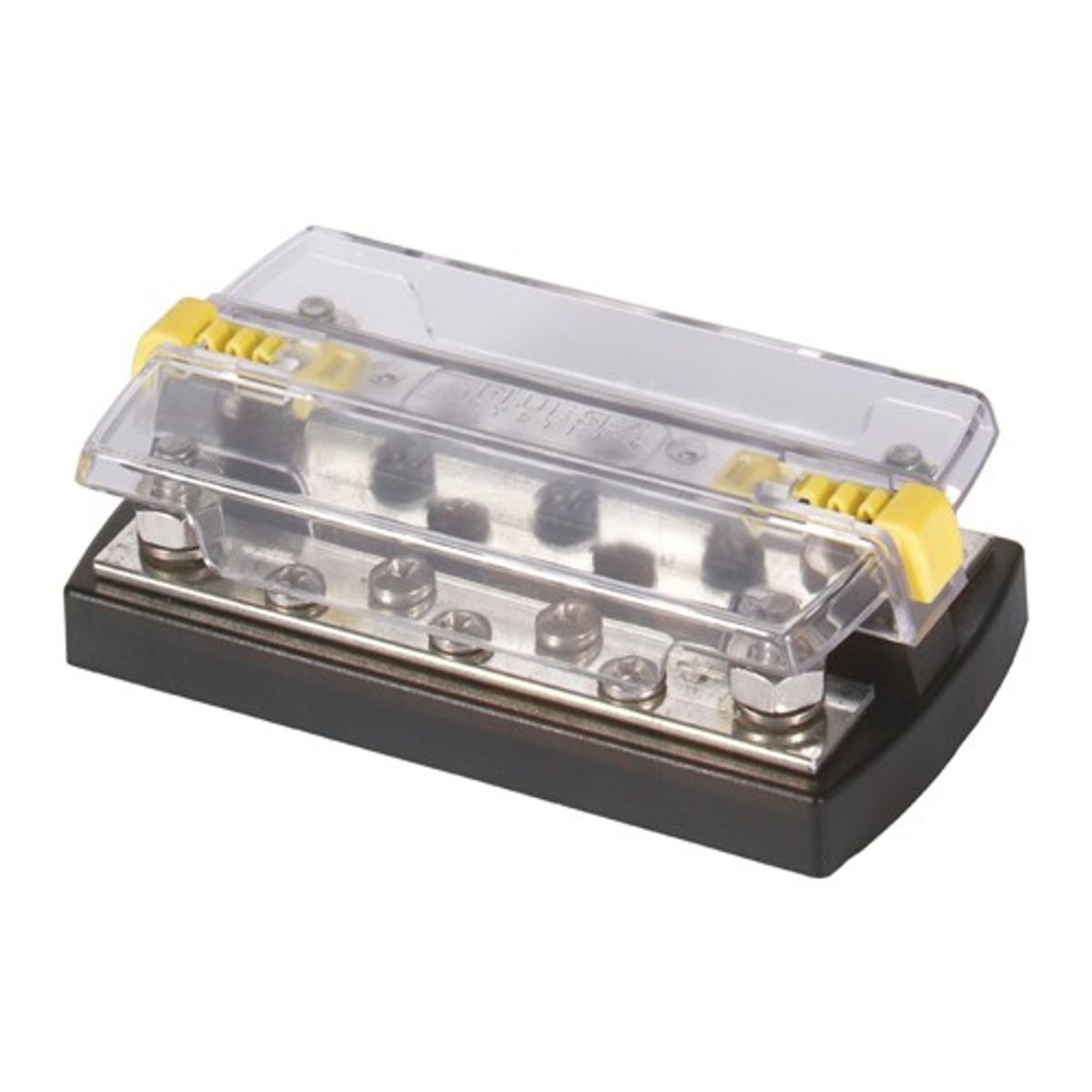

Blue Sea DualBus Plus Busbar (150A / 5x #10-32 & 2x 1/4" Connections)

Blue Sea 2722 DualBus Plus busbar combines negative and positive buses on one block. The dual busbar features a clear polycarbonate cover that snaps on to meet USCG and ABYC insulation requirements.

Specifications:
Cont. Rating: 130A AC / 150A DC
Max Voltage Rating: 300V AC / 48V DC
Number of Screw Terminals: 5 per bus
Number of Terminal Studs: 2 per bus
Terminal Size: #10-32 Screw and 1/4"-20 Stud
Bus Material: Tin-Plated Copper
Base Material: Reinforced Polycarbonate
Cover Material: Clear Polycarbonate
Mounting Screw: #10 (M5)
Screw Terminal Torque: 18 in-lb (2.03 Nm)
Stud Torque: 60 in-lb (6.78 Nm)
Approvals: CE & UKCA
