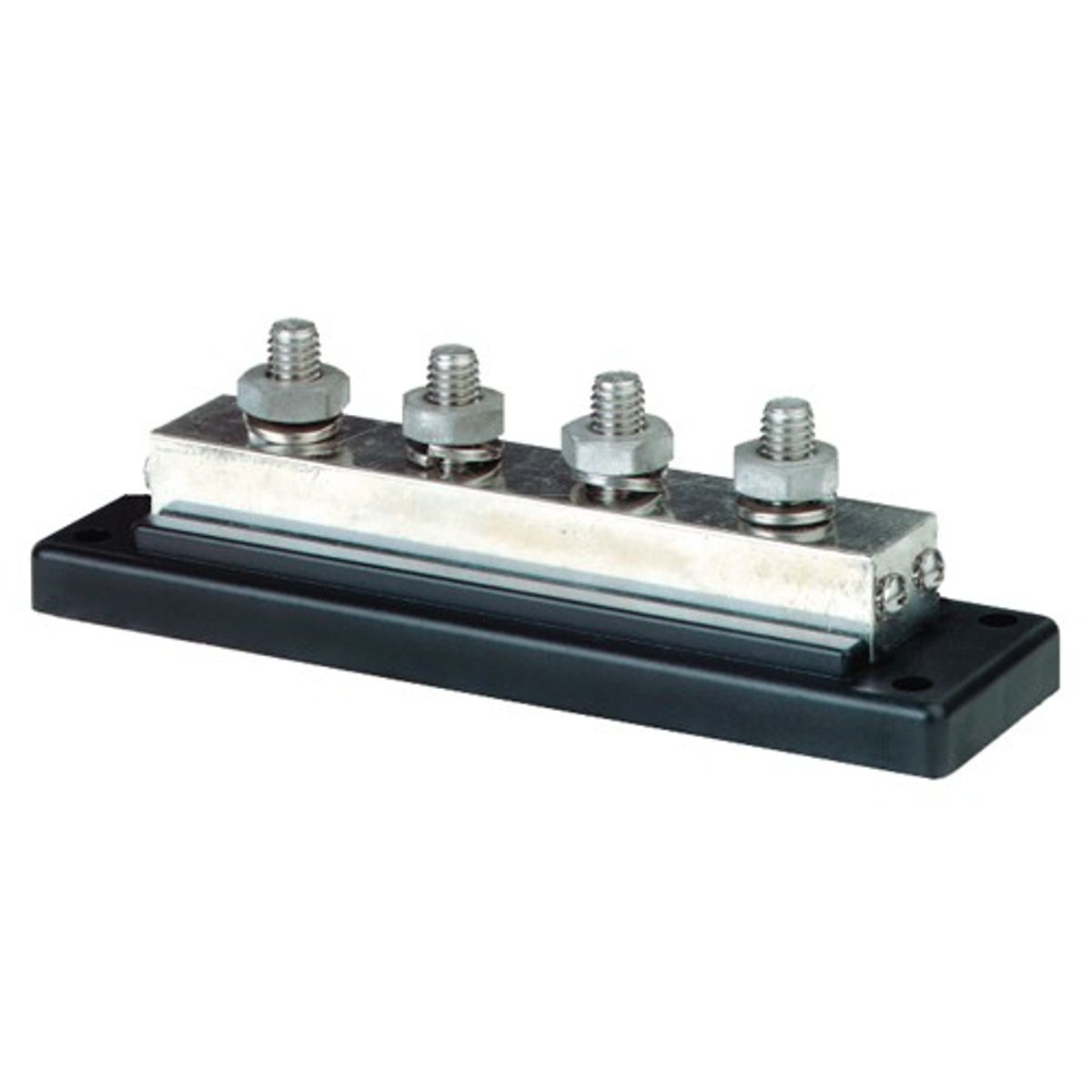

Blue Sea Black PowerBar Busbar (600A / 4 x 3/8" Connections)

Blue Sea 2104 PowerBar 600 Amp common busbar is Blue Sea's highest amperage busbar with four 3/8" terminal studs.

Specifications:
Cont. Rating: 545 Amps AC / 600 Amps DC
Max Voltage Rating: 300V AC / 48V DC
Number of Terminal Studs: 4
Terminal Size: 3/8"-16 Stud
Terminal Stud Torque: 140 in-lb (15.82 Nm)
Screw Terminal Torque: 15 in-lb (1.69 Nm)
Bus Material: Tin-Plated Copper (CDA 110/UNS11000)
Base Material: Glass Reinforced Polycarbonate (UL 94-V0 Rated)
Cover Material: ABS
Approvals: CE & UKCA

8-22708 Insulating Cover available to purchase separately.
