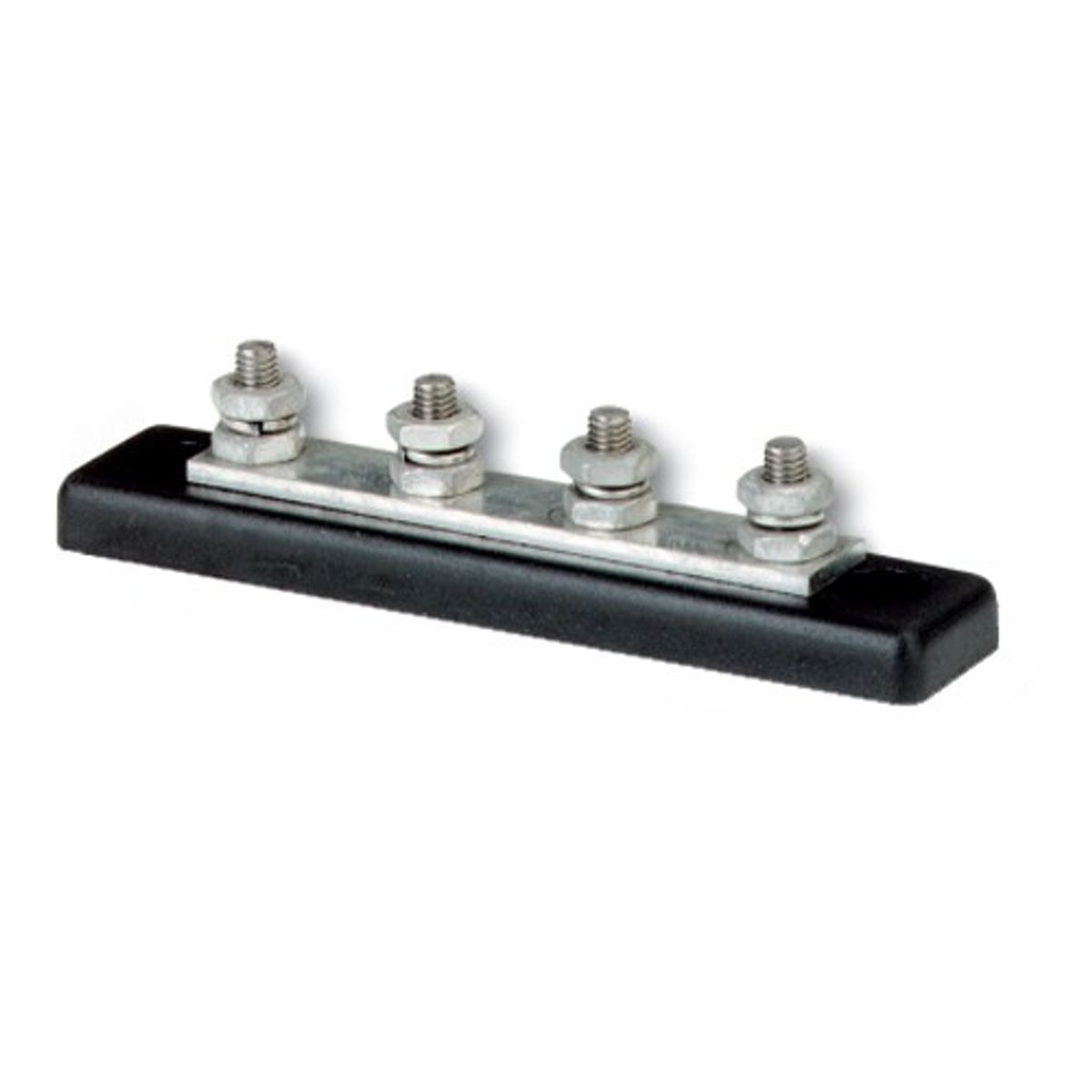

Blue Sea Black Mini Busbar (100A / 4 x 10-32 Studs)

Blue Sea 2305 common MiniBus busbar 100 amp 4-gang provides convenient busing for limited space applications.

Specifications:
Cont. Rating: 100 Amps AC & DC
Max Voltage Rating: 300V AC / 48V DC
Number of Terminal Studs: 4
Terminal Size: #10-32 Stud
Stud Torque: 18 in-lb (2.03 Nm)
Bus Material: Tin-Plated Copper (CDA 110/ UNS11000)
Base Material: Glass Reinforced Polycarbonate (UL 94-V0 Rated)
Approvals: CE & UKCA

8-22306 Grounding Busbar
8-22713 Insulating Cover Clear Polycarbonate
