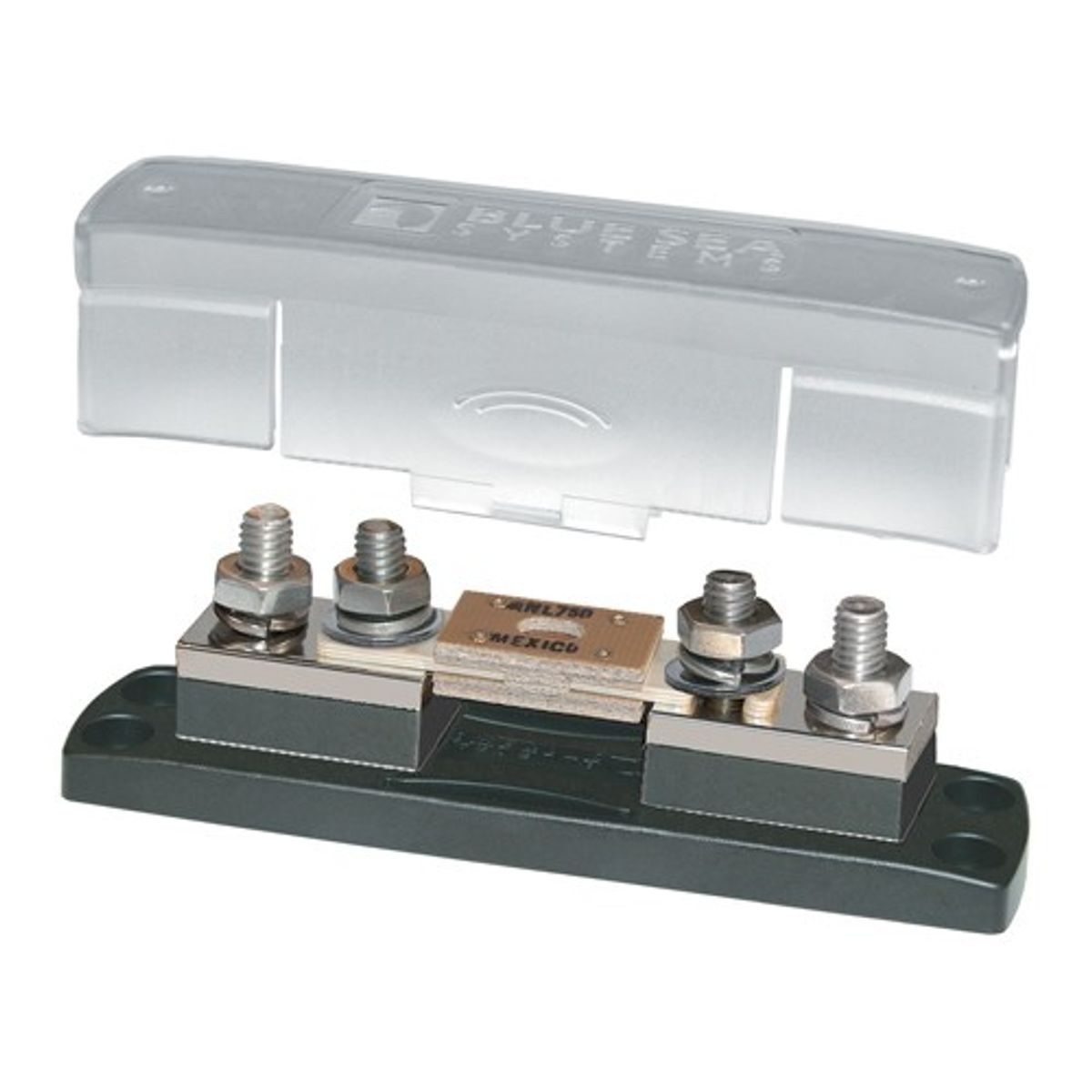

Blue Sea ANL Fuse Block with Insulating Cover (35 - 750 Amps)

Blue Sea 5503 ANL fuse block with insulating cover, suitable for use with 35A to 750A fuses.
Accepts 5/16" (M8) ring terminals
Insulating cover satisfies ABYC/USCG insulation requirements
Cover breakouts allow wire access in any direction
Insert moulded studs ensure secure fuse mounting
Stainless steel studs provide resistance to corrosion and high torque
UL 94-V0 base resists high heat
Swing out design allows fuse replacement without removing fasteners

Specifications:
Maximum Voltage: 32V DC
Stud Size: 5/16"
Base Material: Reinforced Polycarbonate
Fuse Mounting Blocks: Tin-Plated Copper
Maximum Cable Size: 4/0 AWG
Maximum Torque: 107 in-lb (12.09 Nm)
Stud Torque: 107 in-lb (12.09 Nm)
Terminal Stud Size: 5/16" - 18 (M8)
Weight: 1.06lb (0.48 kg)
