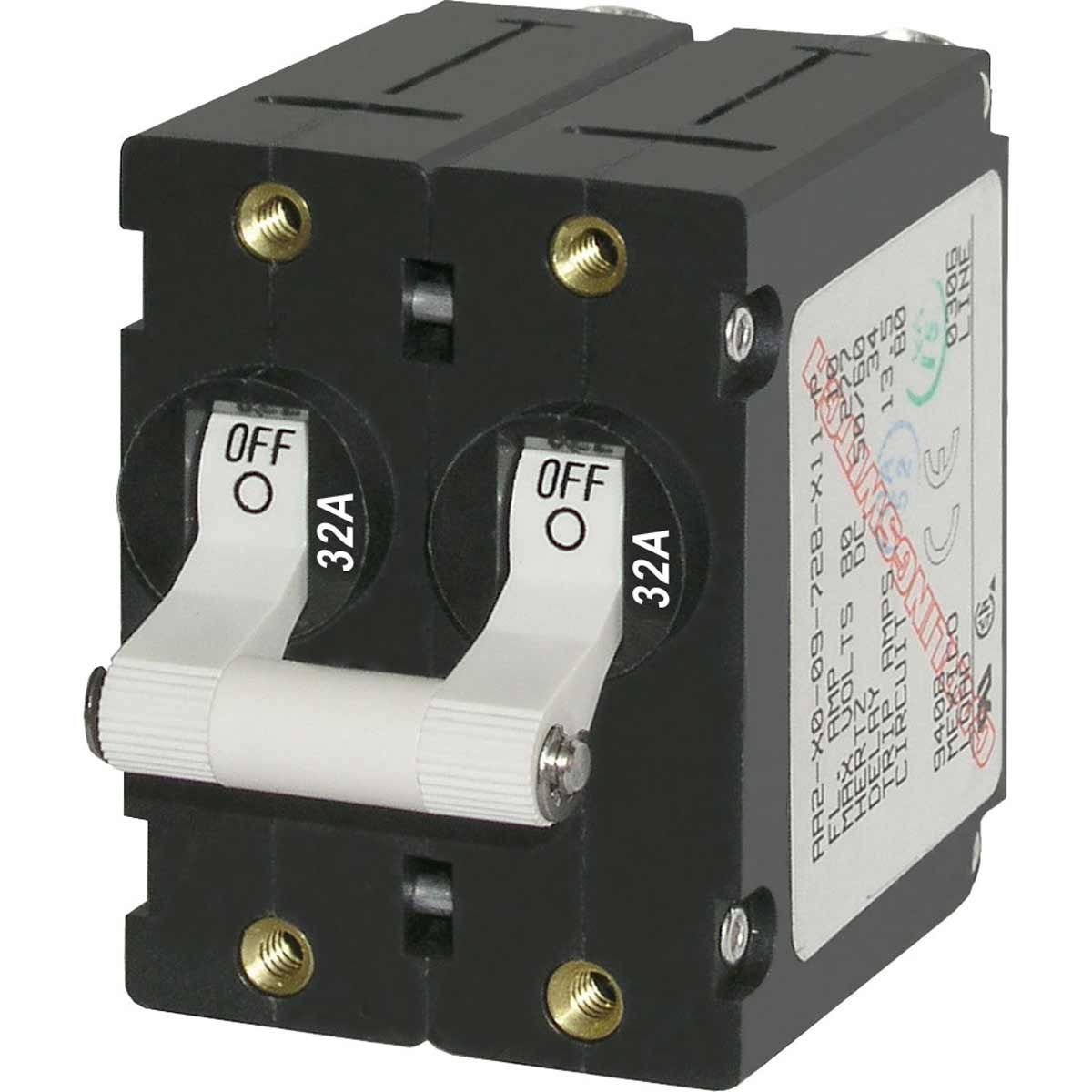

Blue Sea A-Series Toggle Circuit Breaker (32A / White / Double Pole)

Blue Sea 7295 A-Series white toggle circuit breaker is a double pole magnetic AC breaker rated 32 amps. This breaker is used as the AC main circuit breaker to switch both live and neutral legs.
With neutral circuit on one pole and live circuit on other pole, both poles will trip if either pole trips.

Specifications
• CE marked, TUV certified, CSA certified
• UL 1077 recognised
• Max amperage: 32 Amps
• Max voltage: 250 Volts AC
• Circuit breaker type: Magnetic Hydraulic - Trip Free
• Operating temp range: -40ºC to +85ºC
• Terminal screw: #10-32 SS - Recommended torque 14-15 in-lb*
• Rated switch cycles: 10,000 @ rated amperage & voltage
• Mounting screws: #6-32 SS - Recommended torque 6-8 in-lb
