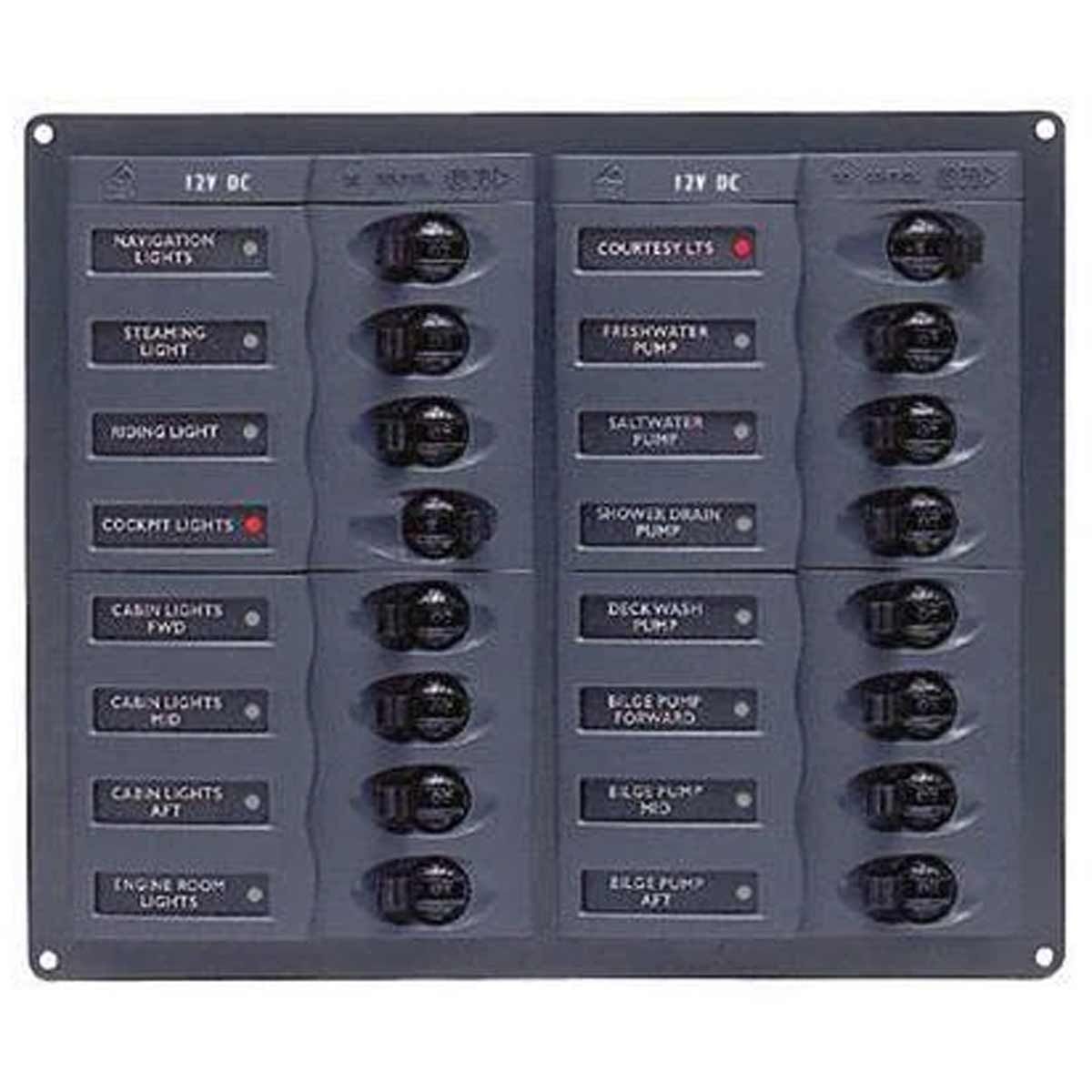

BEP 16-Way Circuit Breaker Panel Square (12V DC / No Meters)

BEP 904NM Circuit Breaker Panel with square 16-position layout, suitable for 12V DC systems.
Single pole circuit breakers: 4x 5A, 5x 10A, 5x 15A, 1x 20A and 1x 25A.
Maximum Amperage: 160A per bus
Height: 200mm (7.9")
Width: 239mm (9.75")
Depth: 65mm (2.5")
Neg Bus: 12-way

Red LED indicates systems on
12V DC
Marine grade powder coated aluminium
ABYC standard voltage indication
Green LED backlit labels
Stylish clip-on contour fascia
Label sets and busbar supplied with panels
Cut-out size - 10mm (3/8") inside all external edges
Depth for mounting 2.5" (64 mm) all panels
