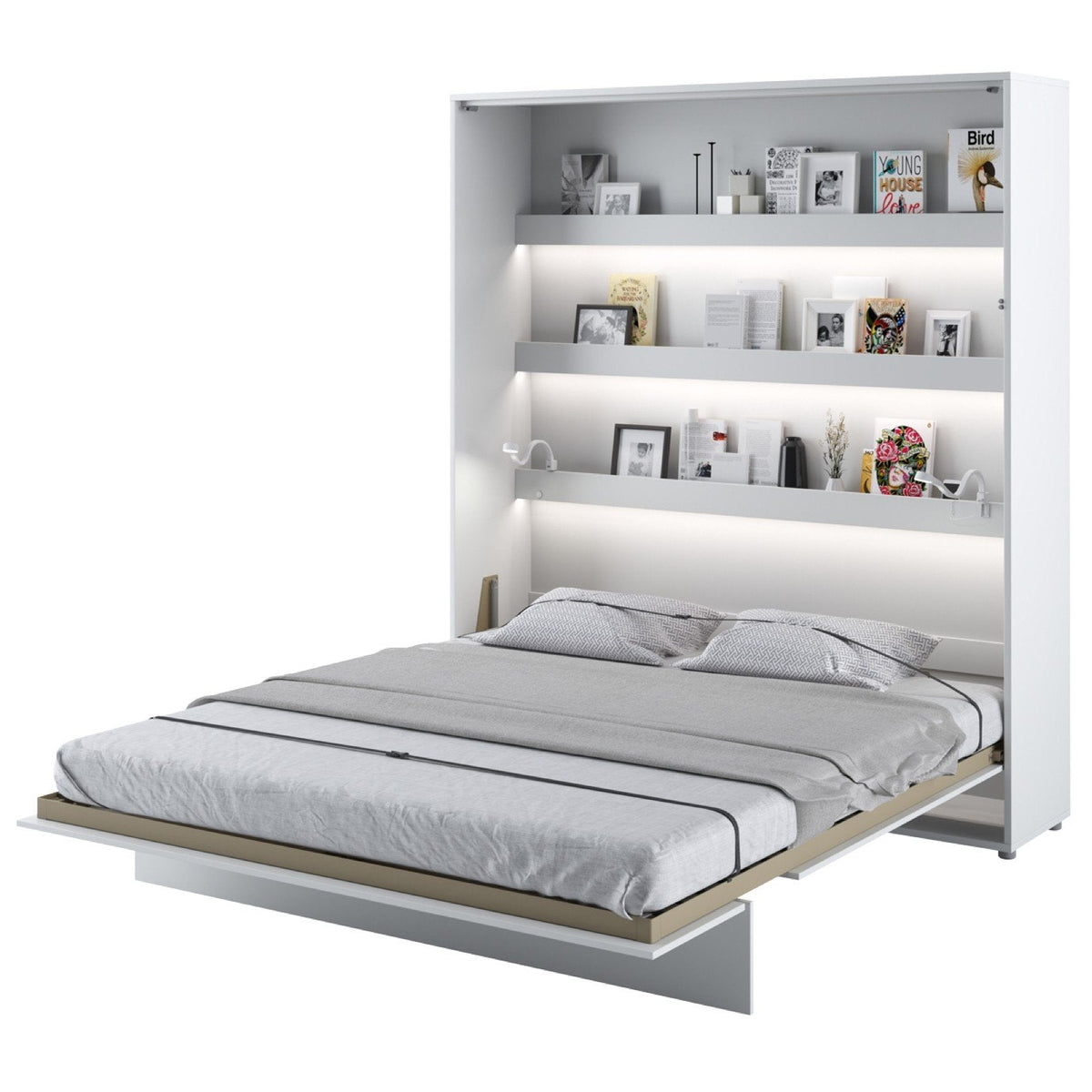

Turn the room back into usable daytime space with the BC-13. Its 180 × 200cm sleeping surface folds vertically into a 46cm-deep cabinet. External storage cabinets are optional, not included.

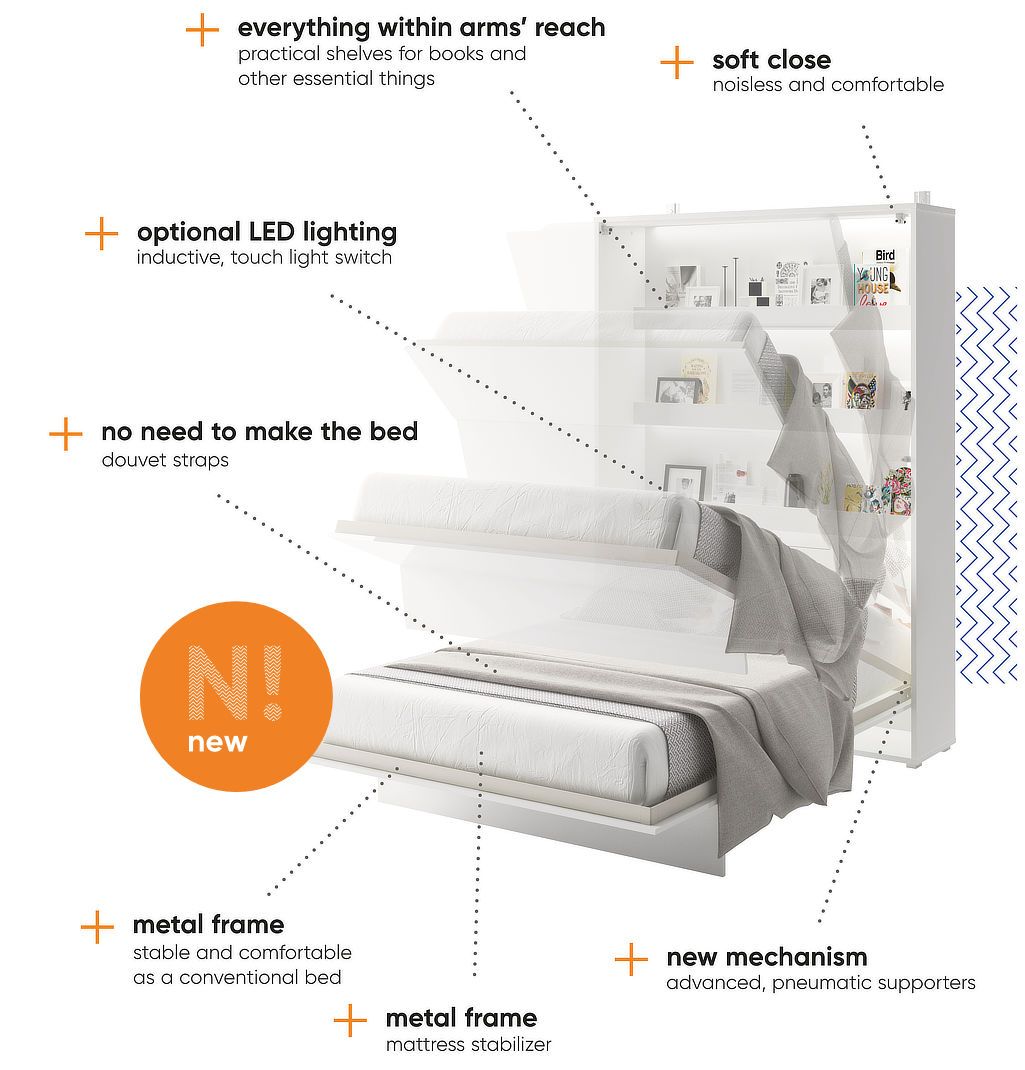

The details that make the difference
191cm cabinet width
180 × 200cm sleeping size
Pneumatic gas-lift assist
228cm open depth: measure from the wall and allow room to move around it.
External storage cabinets are optional, not included.
Built-in shelving keeps bedtime essentials within reach.
Dimensions and fit
Sleeping surface: 180 × 200cm
Bed cabinet closed: W191 × H218 × D46cm
Open depth: 228cm
Allow additional assembly, operating and walking clearance. Have a tight fit checked before ordering.
Included with this configuration
Wall bed cabinet and folding bed frame
Slatted mattress base
Duvet retaining straps
Internal shelves (maximum 5kg per shelf)
Mattress only included when selected. Wall-specific fixings, installation and unselected accessories are not included.
Mattress compatibility
Use a 180 × 200cm mattress, maximum 20cm thick. The manufacturer manual recommends a sprung/Bonnell mattress weighing 30–32kg. Thickness alone is not enough to confirm suitability.
Assembly and wall mounting
Assembly is required. Use a professional joiner or competent installer to assess the wall and fit suitable structural fixings. Never fix to plasterboard alone. The mattress and the mechanism must be balanced according to the supplied instructions. Do not operate an unsecured or incomplete bed.
