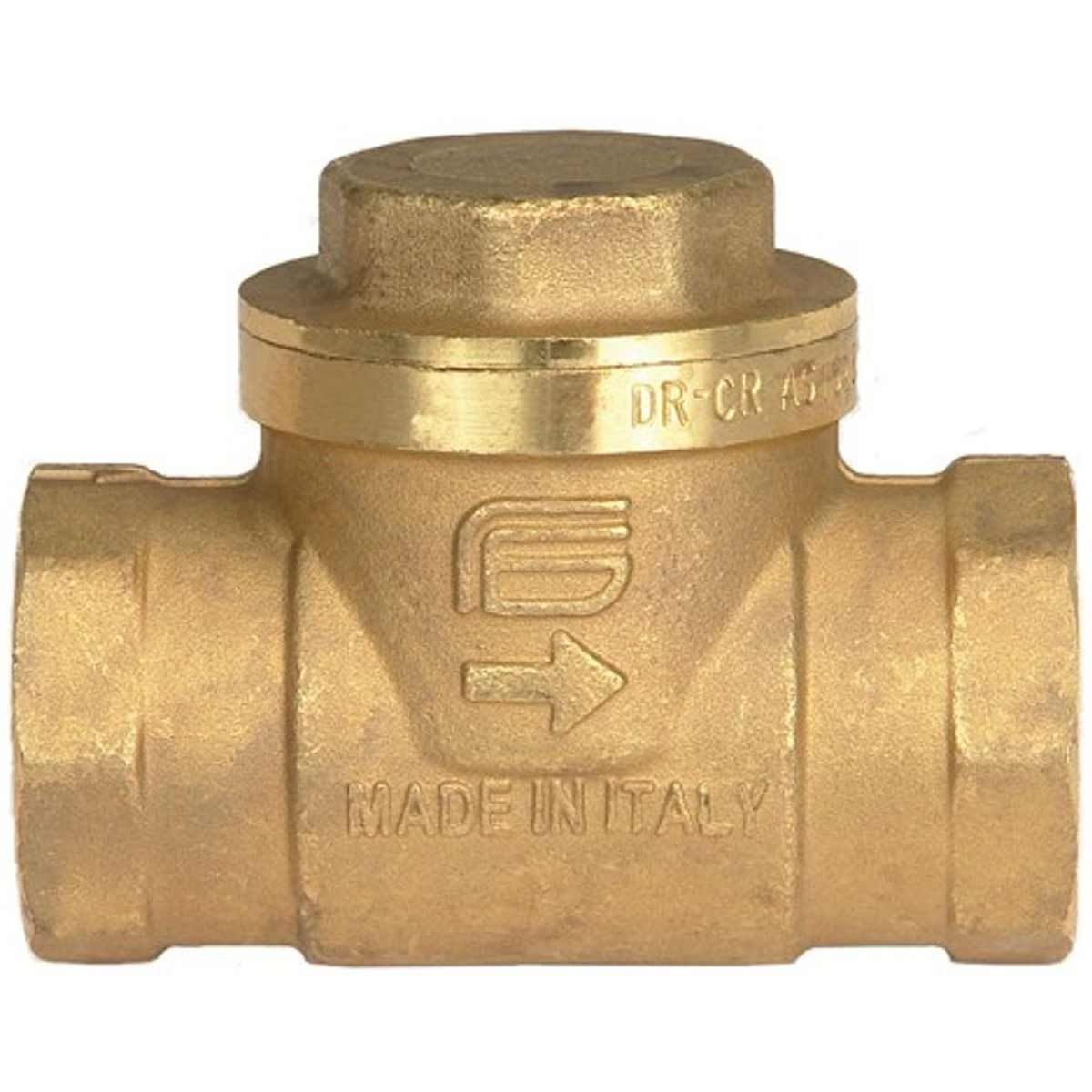

AG DZR Brass Inline Swing Check Valve (Female / 1-1/2" BSP) 1-17355

AG swing check valve with 1-1/2" BSP female ports, full bore high flow rate and a heavy duty DZR brass high corrosion resistance construction. The valve upper plug allows cleaning and maintenance and a flow direction arrow is indicated on valve body. Horizontal mounting position.
Specifications
Body & Cap: DZR Brass CW602N
Temperature Limits: -20°C to +120°C
Pressure Limits: 16BAR
Thread: 1-1/2" BSP Female thread to UNI ISO 7/1 (UNI EN 10226) DIN2999
Bore: 40mm
A: 105.5mm
B: 21.5mm
C: 53.5mm
CH: 55mm
