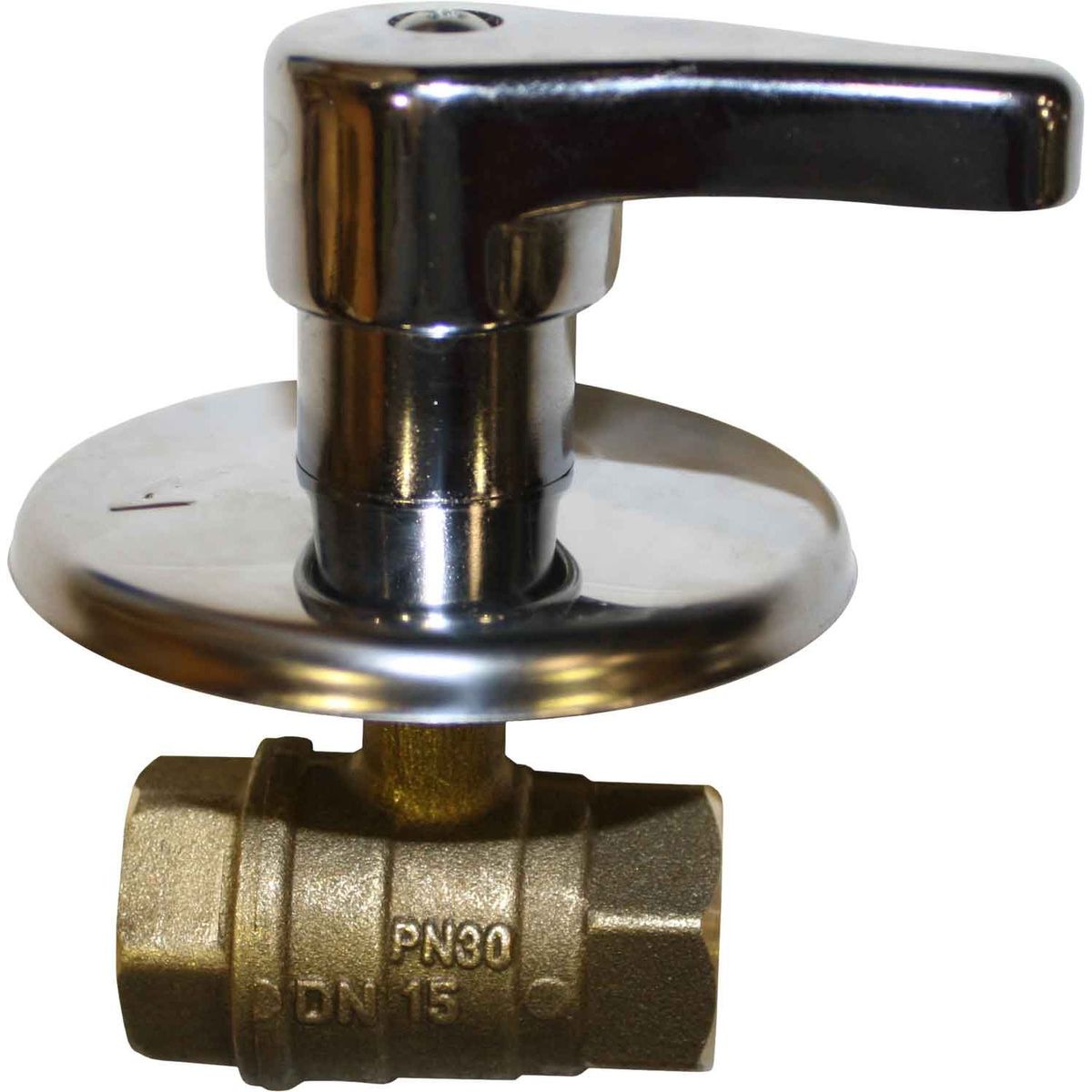

AG Bulkhead Mounted Ball Valve (1/2" BSP) 1-75342

This bulkhead valve has a long handle stem and a brass body. It is suitable for a maximum bulkhead thickness of 25mm, which allows the valve to be mounted behind a bulkhead. Ports are threaded 1/2" BSP female.

The valve is suitable for pneumatic & hydraulic installations and has a chromed brass lever and stainless steel back plate.

DN: 15
Valve Length (A): 58mm
Valve Diameter (B): 34mm
Overall Length (C): 100mm
Back Plate Diameter (D): 100mm
Inside Diameter (E): 15mm
Hex Length (F): 14mm
Kg/cm2 bar: 30
LBS - psi: 435
