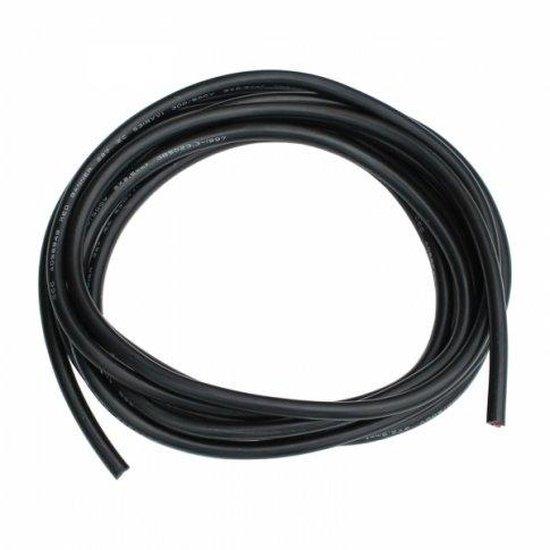

5m 2.5mm Double Core Extension Cable
Battery & Solar Ready | 2.5mm² Cross-Section | Up to 8A Current
The Photonic Universe 5m 2.5mm Double Core Extension Cable (SKU: BCAB525) provides a reliable and efficient solution for extending power connections in various low-voltage DC systems. This versatile battery cable is designed to ensure stable power delivery with minimal loss over its 5-meter length. It is an ideal choice for extending solar panel leads, connecting batteries to charge controllers, or for general wiring needs in vehicles, boats, and off-grid setups.
Engineered for performance, this double core cable is rated for currents up to 8 Amperes and is particularly well-suited for solar charging kits up to 100 Watts, ensuring your solar energy is effectively utilised.
KEY SPECIFICATION: 2.5mm² Double Core | 5 Metres Length | Up to 8A Current Capacity
Key Features
| ▶ Generous 5m Length — Provides extended reach for flexible system layouts. |
| ▶ 2.5mm² Double Core Design — Ensures robust and efficient power flow for low-voltage DC systems. |
| ▶ 8 Ampere Current Capacity — Safely handles currents up to 8A, preventing overload in compatible systems. |
| ▶ Minimal Power Loss — Engineered for low voltage drop, even over its 5-meter length, maximising energy transfer. |
| ▶ Solar Ready — Ideal for solar panels and charging kits up to 100 Watts (12V battery systems). |
| ▶ Multi-Purpose Utility — Versatile for solar, automotive, marine, and general low-voltage wiring applications. |
Technical Specifications
| Parameter | Value |
|---|---|
| Product Type | Battery Cable / Extension Cable |
| Brand | Photonic Universe |
| SKU / MPN | BCAB525 |
| Cable Length | 5 Metres (approx. 16.4 ft) |
| Core Type | Double Core (Twin) |
| Conductor Cross-Section | 2.5mm² (approx. 13 AWG) |
| Max Current Rating | 8 Amperes (8A) |
| Recommended Solar Use | Up to 100W Solar Panels (12V systems) |
Operating & Power Guidance
This 2.5mm² double core cable is specifically designed for low-voltage DC applications where efficient power transfer over a 5-meter distance is crucial. Its conductor cross-section is optimised to minimise voltage drop and power loss, making it highly effective for connecting solar panels, batteries, and charge controllers.
| Aspect | Detail |
|---|---|
| Voltage Drop | Engineered for negligible power loss, crucial for maintaining system efficiency, especially with DC power sources like solar panels and batteries. |
| Current Handling | Rated for a maximum continuous current of 8 Amperes. Always ensure connected devices and systems do not exceed this rating. |
| Solar System Integration | Perfectly matched for solar setups up to 100W (when used with a 12V battery system), ensuring effective energy utilisation. |
| Application Range | Suitable for a wide array of low-voltage DC applications, including automotive, marine, and various off-grid projects. |
Typical Applications
| Application | Description |
|---|---|
| Solar Panel Extension | Extend the reach of solar panel leads to a charge controller or battery bank. |
| Battery Connections | Connect batteries to solar charge controllers or other 12V/24V DC devices. |
| Automotive & RV Wiring | General low-voltage wiring for auxiliary systems in cars, caravans, motorhomes, and campervans. |
| Marine Applications | Suitable for various 12V/24V electrical connections on boats, yachts, and other marine vessels. |
Cable Construction & Performance Notes
This Photonic Universe 2.5mm² double core cable is designed for reliable performance in demanding environments. The robust construction ensures it can handle typical low-voltage DC applications while minimising power loss. Its specific gauge is crucial for maintaining voltage and efficiency, particularly when dealing with DC power from solar panels or batteries. Always ensure the cable's current rating of 8A is appropriate for your specific application to prevent overheating and ensure safe operation.
Common Questions
What does "double core" mean?
A double core cable contains two insulated conductors (cores) within a single outer sheath. This cable is typically used for positive and negative runs in DC circuits, simplifying wiring.
Can this cable be used for mains (AC) electricity?
No, this Photonic Universe 2.5mm² double core cable is specifically designed and rated for low-voltage DC applications up to 8 Amperes. It is not suitable for mains (AC) electrical installations, which typically require different cable types and higher current ratings.
Is the 8A rating sufficient for my solar panel?
This cable is ideal for solar panels and charging kits up to 100 Watts (when used with a 12V battery system). For higher wattage solar panels or longer cable runs, a thicker cable with a higher current rating may be required to minimise voltage drop and ensure efficiency. Always check the current output of your solar panel.
How do I connect this cable?
This is a bare-ended cable, meaning it does not come with pre-attached connectors. You will need to strip the ends and use appropriate terminals, connectors, or wiring methods suitable for your specific application, such as crimp terminals, screw terminals, or soldering, ensuring secure and insulated connections.
Installation Notes
- Ensure all connections are secure and properly insulated to prevent short circuits.
- Route cables away from sharp edges, heat sources, and moving parts to prevent damage.
- For outdoor or marine use, consider additional protection for cable ends and connections against moisture and UV exposure.
- Always adhere to local electrical codes and safety guidelines for low-voltage installations.
Before You Buy
- Verify the current requirements of your application do not exceed 8 Amperes.
- Confirm the 5-meter length is sufficient for your intended installation.
- Ensure the 2.5mm² cross-section is appropriate for your system's voltage and power needs.
- Consider if additional connectors or terminals are required for your specific setup.
Please verify all specifications and compatibility requirements for your specific application before purchase. All technical data is based on manufacturer specifications and verified product information.
