5A solar charge controller / regulator for 12V batteries and solar panels up to 60W
5A solar charge controller / regulator for 12V batteries and solar panels up to 60W
Couldn't load pickup availability

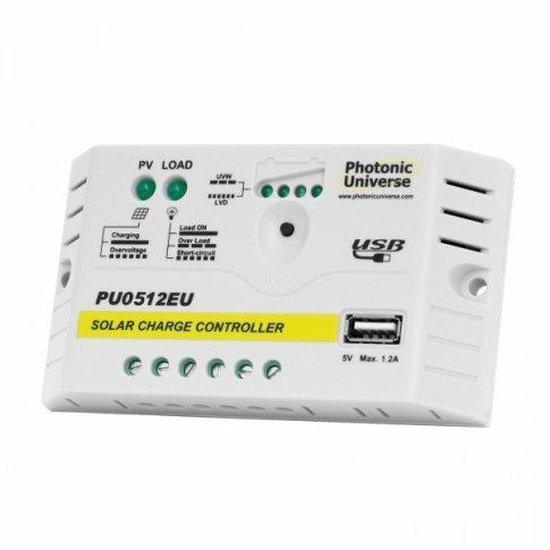

5A PWM Solar Charge Controller
Model PU0512EU | For 12V Batteries & Solar Panels up to 60W
The Photonic Universe 5A Solar Charge Controller (model PU0512EU) is an essential component for any 12V off-grid solar setup, designed to protect and extend the lifespan of your solar battery. This compact regulator efficiently manages the power flow from your solar panels, preventing common issues like overcharge and over-discharge to ensure a reliable and long-lasting power source.
Utilising advanced PWM (Pulse Width Modulation) charging technology, this controller optimises battery charging, helps recover lost capacity, and significantly enhances overall battery health. It's ideal for homeowners, off-grid users, and small businesses seeking peace of mind and optimised performance from their solar investment.
SYSTEM COMPATIBILITY: Designed for 12V battery systems and solar panels with a maximum power output of 60W.
Key Features
| ▶ Advanced Battery Protection — Guards against overcharge, over-discharge, and reverse current. |
| ▶ PWM Charging Technology — Optimises battery charge acceptance and extends battery lifespan. |
| ▶ Integrated USB Charging — Features a 5V 1.2A USB port for convenient device charging. |
| ▶ 12V Load Connection — Dedicated terminals for powering small 12V appliances directly. |
| ▶ Clear LED Indicators — Provides at-a-glance status for battery, solar panel, and load. |
| ▶ Simple Load Control — Easy on/off button for managing connected 12V loads. |
Technical Specifications
| Parameter | Value |
|---|---|
| Rated System Voltage | 12V DC |
| Max. Solar Panel Power | 60W |
| Max. Charging Current | 5A |
| Max. Load Current | 5A |
| USB Output | 5V, 1.2A |
| Battery Type Compatibility | Sealed, Gel, Flooded |
Charging & Battery Modes
This 5A PWM solar charge controller is engineered for optimal 12V battery management. It supports a range of common 12V battery types, allowing you to select the correct setting for your specific battery to ensure tailored charging and maximum efficiency.
| Feature | Description |
|---|---|
| PWM Charging | Pulse Width Modulation (PWM) technology intelligently charges your battery, enhancing charge acceptance and extending its overall service life. |
| Battery Type Selection | Compatible with Sealed, Gel, and Flooded 12V batteries, with an easy selection process to match charging parameters. |
| USB Output | A convenient 5V 1.2A USB port allows for direct charging of mobile phones, tablets, and other small electronic devices. |
Typical Applications
| Application | Description |
|---|---|
| Small Off-Grid Systems | Ideal for powering small cabins, sheds, or remote monitoring stations with a 12V battery and up to 60W solar panel. |
| Caravan & Motorhome Power | Manages charging for leisure batteries, providing power for lighting, small electronics, and USB devices on the go. |
| Garden & Outdoor Lighting | Perfect for maintaining battery health in solar-powered garden lights or small outdoor security systems. |
| DIY Solar Projects | A reliable choice for educational projects or small-scale custom solar power setups requiring 12V regulation. |
Built-In Protection Functions
The Photonic Universe 5A solar charge controller incorporates multiple safety features to safeguard your solar system components. These include protection against reverse current at night • battery overcharge • battery over-discharge • overvoltage • overload • and short circuits. These protections ensure stable operation and extend the life of both your battery and the controller itself.
Common Questions
What battery types are compatible with this controller?
This controller is designed to work seamlessly with 12V sealed, gel, and flooded lead-acid battery types. You can select your specific battery type for optimised charging.
What size solar panel can I connect?
The controller is suitable for solar panels up to 60W. For optimal performance, we recommend pairing it with solar panels that have a maximum power voltage (Vmp) between 17-20V.
Can I charge my phone using this controller?
Yes, the controller features a dedicated 5V USB port with a 1.2A output, allowing you to charge smartphones, tablets, and other compatible USB devices directly from your solar power system.
What are the benefits of PWM charging technology?
PWM (Pulse Width Modulation) charging helps to increase your battery's charge acceptance, recover lost capacity, and significantly extend its overall lifespan by carefully regulating the charging current and voltage.
Installation Notes
- Connect the battery to the controller first.
- Then connect the solar panel to the controller.
- Finally, connect any 12V DC loads to the controller.
- Ensure correct polarity for all connections to prevent damage.
- Mount the controller in a dry, well-ventilated area, away from direct sunlight.
- Refer to the included instruction manual for detailed wiring diagrams and setup procedures.
Before You Buy
- Verify your battery system is 12V.
- Confirm your solar panel's maximum power output is 60W or less.
- Check your solar panel's Vmp (Max Power Voltage) is within the recommended 17-20V range for optimal performance.
- Consider an MPPT controller if your solar panel voltage is significantly higher than 25V for maximum energy harvest.
- Ensure you have appropriate cabling and fuses for your system.
- This controller is for lead-acid batteries (sealed, gel, flooded) only.
Always verify product specifications and compatibility with your existing solar components before purchase. This product includes a 1-year warranty for peace of mind.
