540W Monocrystalline Solar kit with SmartSolar 150/35 MPPT, Mounts, Cables & MC4s
540W Monocrystalline Solar kit with SmartSolar 150/35 MPPT, Mounts, Cables & MC4s
Couldn't load pickup availability
540W Monocrystalline Solar Kit
Complete Off-Grid Power | Victron SmartSolar 150/35 MPPT | UK Applications

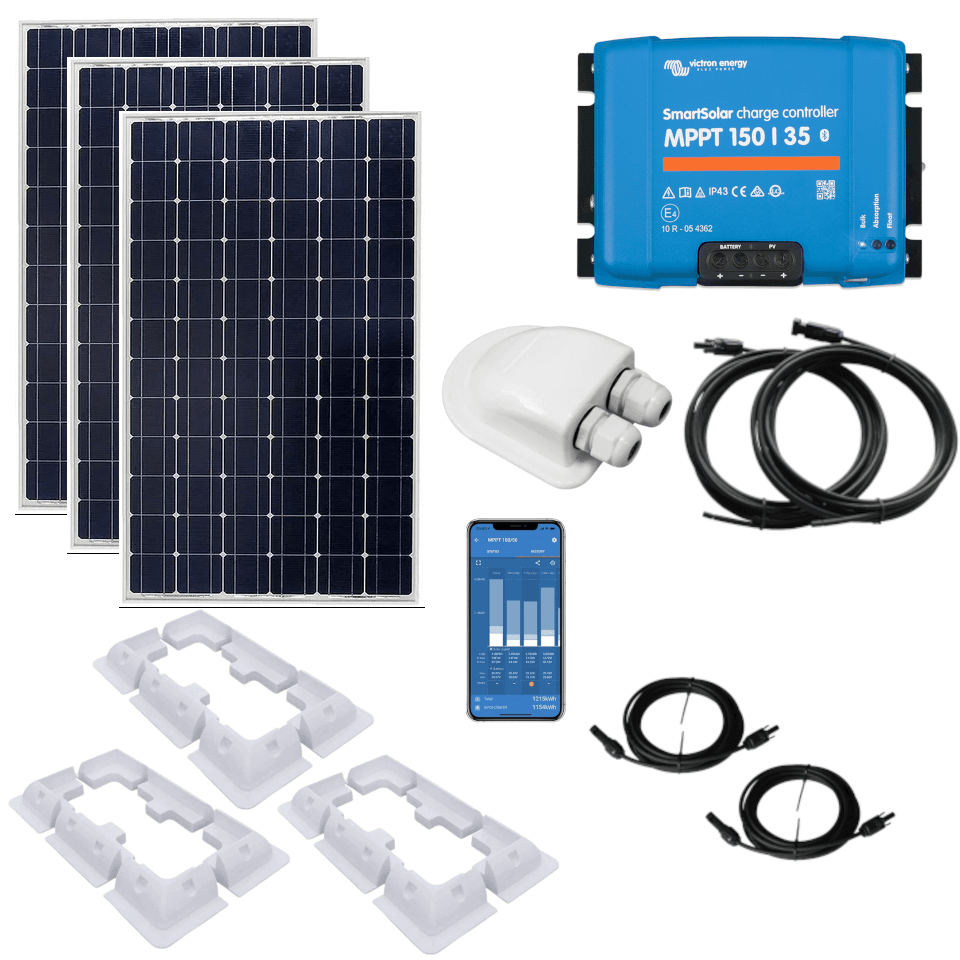

The 540W Monocrystalline Solar Kit from Solarika offers a robust and efficient solution for off-grid power requirements. This comprehensive package combines three high-performance 180W Photonic Universe monocrystalline solar panels with the advanced Victron SmartSolar MPPT 150/35 charge controller, ensuring optimal energy harvest and battery charging. Designed for reliability and ease of use, the kit includes all necessary mounting hardware, cables, and MC4 connectors for a complete setup.
Ideal for a range of UK applications, from campervans and motorhomes to boats and remote cabins, this kit provides a dependable source of clean energy. The Victron SmartSolar controller features Bluetooth connectivity for convenient monitoring and configuration via a smartphone or other device.
SYSTEM CAPACITY: Provides a total of 540W solar power for efficient 12V or 24V battery charging.
Key Features
| ▶ 540W Total Power — Achieved with three 180W high-efficiency monocrystalline solar panels. |
| ▶ Victron SmartSolar MPPT 150/35 — Advanced charge controller for maximum power point tracking. |
| ▶ Bluetooth Smart Built-in — Monitor and configure your system wirelessly via the VictronConnect app. |
| ▶ Exceptional Low-Light Performance — Ensures power generation even in challenging light conditions. |
| ▶ Bypass Diodes — Minimise power loss from partial shading on the panels. |
| ▶ Durable Construction — Panels feature a sturdy anodised aluminium frame and high-transmission tempered glass. |

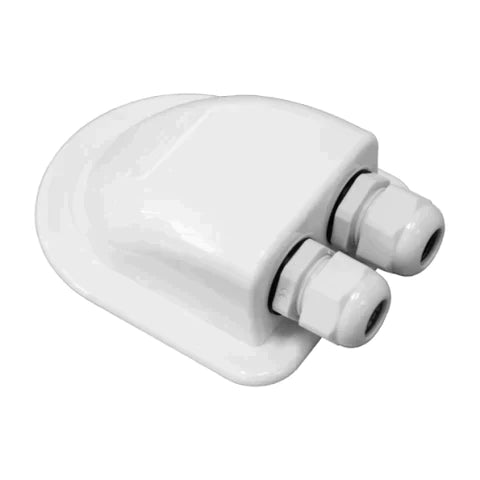

| ▶ Complete Kit — Includes mounting brackets, cable entry gland, 5m extension cables, and MC4 connectors. |
Technical Specifications
| Parameter | Value |
|---|---|
| Total Panel Power | 540W (3 x 180W) |
| Panel Type | Monocrystalline |
| Panel Dimensions (each) | 1475 x 760 x 35mm |
| Module Efficiency | 21.83% |

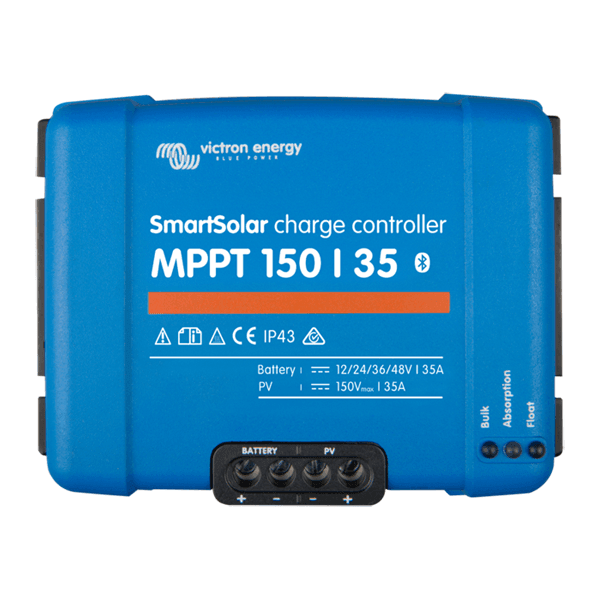

| Controller Model | Victron SmartSolar MPPT 150/35 |
| Controller MPN | SCC115035210 |
| Battery Voltage (Controller) | 12V / 24V AutoSelect |
| Max PV Open Circuit Voltage | 150V |
| Rated Charge Current | 35A |
| Controller Max Efficiency | 98% |
| Included Cables | 2x 5m PV Extension, Interconnects |
Victron SmartSolar MPPT 150/35 Features
| Feature | Benefit |
|---|---|
| Ultra-Fast MPPT | Maximises energy harvest, especially during cloudy conditions or changing light. |
| Bluetooth Smart | Wireless setup, monitoring, and updates via the VictronConnect app. |
| Load Output | Intelligent load management to prevent battery over-discharge. |
| BatteryLife Algorithm | Extends battery lifespan by intelligently managing charge cycles. |
| Programmable Charge Algorithm | Customise charging parameters for various battery types. |
Typical Applications
| Application | Description |
|---|---|
| Campervans & Motorhomes | Powering appliances, lighting, and charging devices on the go. |
| Boats & Yachts | Maintaining battery charge for marine electronics and onboard comforts. |
| Off-Grid Cabins & Sheds | Providing independent power for lighting, tools, and small appliances. |
| Remote Monitoring Stations | Reliable power for security cameras, sensors, and communication equipment. |
Built-In Protection Functions
The Victron SmartSolar MPPT 150/35 charge controller incorporates multiple safety features to protect your system: Battery Reverse Polarity Protection • PV Reverse Polarity Protection • Output Short Circuit Protection • Over Temperature Protection. The Photonic Universe solar panels include high-performance bypass diodes to minimise power drop from shading and are constructed with advanced EVA encapsulation and a triple-layer back sheet for stringent safety requirements.
Common Questions
What battery types are compatible with this kit?
The Victron SmartSolar MPPT 150/35 controller is compatible with 12V and 24V lead-acid (GEL, AGM, Flooded) and Lithium-ion batteries. It features a programmable charge algorithm to optimise charging for your specific battery type.
Can I expand this solar kit in the future?
While the Victron SmartSolar 150/35 MPPT controller has a maximum PV open circuit voltage of 150V and a rated charge current of 35A, adding more panels would require careful calculation to ensure you do not exceed these limits. For significant expansion, a larger MPPT controller may be necessary.
Is professional installation required for this kit?
This kit is designed for DIY installation by those with appropriate technical understanding. However, for safety and optimal performance, especially with larger or more complex systems, professional installation by a qualified electrician or solar installer is always recommended.
How does the MPPT controller improve solar panel efficiency?
An MPPT (Maximum Power Point Tracking) controller continuously adjusts its input to draw the maximum possible power from the solar panels, regardless of temperature or shading. This can result in a significantly higher energy yield compared to simpler PWM controllers, especially in variable conditions.
Installation Notes
- Ensure panels are mounted securely to a stable surface, considering wind load and accessibility.
- Connect panels in series as per the kit's design to achieve the optimal voltage for the MPPT controller.
- Always connect the battery to the charge controller first, then the solar panels. Disconnect in reverse order.
- Use appropriate cable glands and sealants to maintain weatherproofing for outdoor installations.
- Refer to the Victron SmartSolar 150/35 manual for detailed wiring diagrams and safety instructions.
Before You Buy
- Verify your battery bank voltage (12V or 24V) matches the controller's auto-select capability.
- Measure available mounting space to ensure the three 1475x760x35mm panels will fit.
- Calculate your daily power consumption to confirm 540W is sufficient for your needs.
- Consider any local regulations or planning permissions required for solar installations.
- Ensure you have the necessary tools and safety equipment for installation.
Please verify all specifications and compatibility requirements with your specific system before purchase. Always consult with a qualified professional for installation advice.
