480W Monocrystalline Solar kit with SmartSolar 150/35 MPPT, Mounts, Cables & MC4s
480W Monocrystalline Solar kit with SmartSolar 150/35 MPPT, Mounts, Cables & MC4s
Couldn't load pickup availability
480W Monocrystalline Solar Kit
High-Efficiency Panels | SmartSolar 150/35 MPPT Controller | Complete Off-Grid Solution
The 480W Monocrystalline Solar Kit from Solarika provides a robust and efficient power solution for various off-grid applications. This comprehensive kit features three high-performance 160W monocrystalline solar panels, delivering a combined 480W of reliable solar energy. At its core is the advanced Victron SmartSolar 150/35 MPPT charge controller, ensuring optimal power harvesting and efficient battery charging.
Designed for ease of installation and maximum durability, the kit includes all necessary mounting brackets, cables, and MC4 connectors. It is an ideal choice for those seeking a dependable solar power system for leisure vehicles, remote cabins, and other independent power needs across the UK.

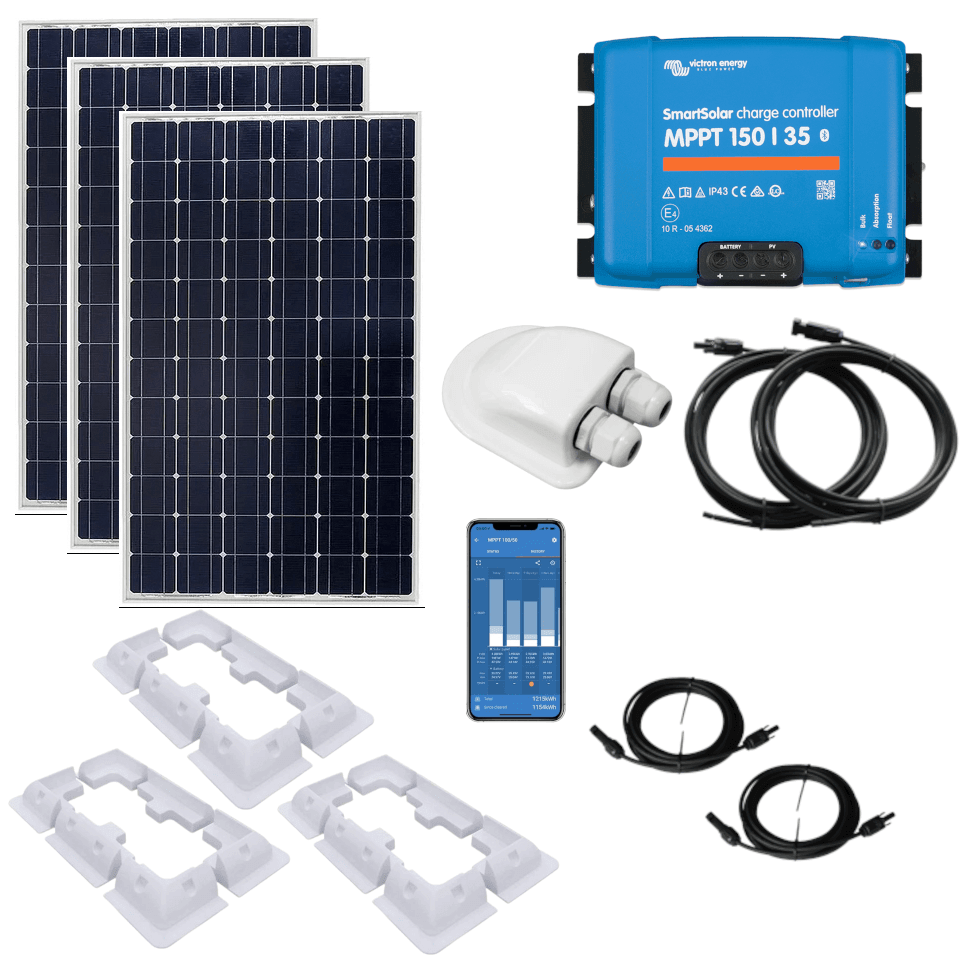

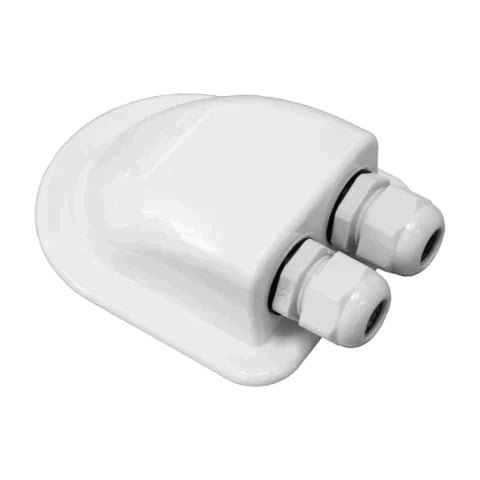

KIT INCLUDES: 3 x 160W Monocrystalline Panels, Victron SmartSolar 150/35 MPPT Controller, Mounting Brackets, Cable Entry Gland, PV Extension Cables, and MC4 Connectors.
Key Features
| ▶ High-Efficiency Monocrystalline Panels — Each 160W panel boasts 21.83% module efficiency for superior power generation. |
| ▶ Victron SmartSolar 150/35 MPPT — Maximises energy harvest with ultra-fast Maximum Power Point Tracking. |
| ▶ Built-in Bluetooth Smart — Monitor and configure your system wirelessly via the VictronConnect app. |
| ▶ Optimised for Partial Shading — Advanced MPPT algorithm ensures maximum yield even in challenging conditions. |
| ▶ Robust & Durable Construction — Panels feature a sturdy anodised aluminium frame and high-transmission tempered glass. |
| ▶ Complete & Ready-to-Install — Includes all necessary mounts, cables, and connectors for a straightforward setup. |
Technical Specifications
| Parameter | Value |
|---|---|
| Total Solar Power | 480W (3 x 160W panels) |
| Panel Type | Monocrystalline |
| Panel Module Efficiency | 21.83% |
| Panel Dimensions (each) | 1480 x 760 x 35 mm |

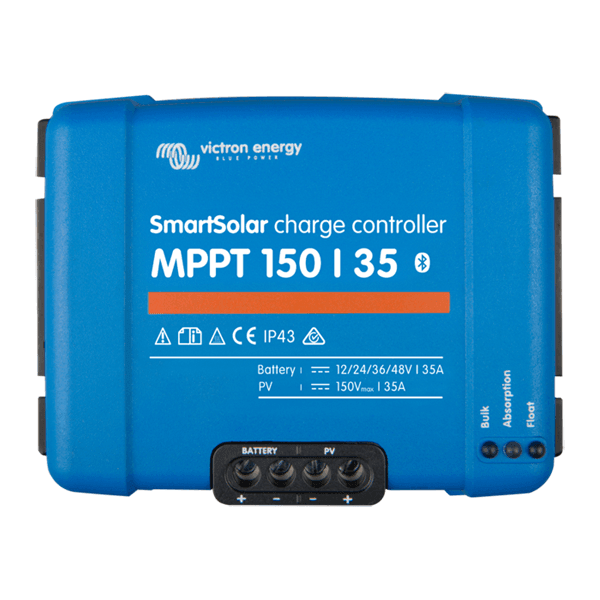

| Charge Controller Model | Victron SmartSolar 150/35 (SCC115035210) |
| Battery Voltage (Auto Select) | 12V / 24V / 48V DC (36V manual) |
| Max. Charge Current | 35A |
| Max. PV Open Circuit Voltage | 150V |
| Controller Peak Efficiency | >98% |
| Nominal 12V PV Power Support | Up to 500W |
Charging & Output Modes
| Feature | Description |
|---|---|
| Adaptive 3-Stage Charging | Ensures optimal battery health and extended lifespan with Bulk, Absorption, and Float stages. |
| Flexible Charge Algorithm | Fully programmable, with eight pre-programmed algorithms to suit various battery types. |
| BatteryLife Algorithm | Intelligently manages load disconnect levels to prevent over-discharge and ensure regular full recharges. |
| Remote Monitoring | Monitor and configure via Bluetooth using the VictronConnect app on your smartphone or tablet. |
Typical Applications
| Application | Description |
|---|---|
| Campervans & Motorhomes | Provides reliable power for appliances, lighting, and charging devices on the go. |
| Boats & Yachts | Ideal for marine applications, ensuring consistent power for navigation, communication, and comfort. |
| Off-Grid Cabins & Sheds | Powers lighting, small tools, and essential electronics in remote locations. |
| Remote Power Systems | Suitable for various independent power needs where grid connection is unavailable. |
Built-In Protection Functions
The Victron SmartSolar 150/35 MPPT controller incorporates extensive electronic protection features, including over-temperature protection with power derating, PV short circuit protection, and PV reverse polarity protection. The solar panels are designed with high-performance bypass diodes to minimise power loss from shading and feature a robust construction to withstand various environmental conditions, ensuring long-term reliability and safety for your solar power system.
Common Questions
What does MPPT mean and why is it important?
MPPT stands for Maximum Power Point Tracking. It's a technology that allows the charge controller to find the optimal voltage and current at which solar panels produce maximum power, especially beneficial during changing light conditions or partial shading. This results in up to 30% more energy harvest compared to older PWM controllers.
Can I expand this 480W solar kit in the future?
The Victron SmartSolar 150/35 MPPT controller can handle up to 500W of PV power for a 12V battery system, or 1000W for a 24V system. If you plan to expand beyond these limits, you may need an additional charge controller or a larger capacity model. Always consult the controller's specifications for maximum PV input voltage and current.
What battery types are compatible with this charge controller?
The Victron SmartSolar 150/35 MPPT controller is compatible with 12V, 24V, and 48V battery banks, with automatic voltage selection. It can also be manually configured for 36V systems. It supports various battery chemistries through its flexible and programmable charge algorithm.
Is this kit suitable for UK weather conditions?
Yes, the monocrystalline solar panels offer exceptional low-light performance and high sensitivity across the solar spectrum, making them effective even on cloudy days. The robust construction and waterproof design ensure durability in various UK weather conditions. The MPPT controller also excels in variable light.
Installation Notes
- Consider professional installation for optimal performance and safety.
- Ensure the mounting surface is strong enough to support the panels and brackets.
- Follow the wiring diagrams carefully, paying close attention to polarity and series connections.
- Mount the charge controller in a well-ventilated area, away from direct sunlight or excessive heat.
- Ensure all cable connections are secure and weatherproof, especially MC4 connectors.
Before You Buy
- Verify your battery bank's voltage (12V, 24V, or 48V) to ensure compatibility with the controller.
- Measure the available space for the three 1480x760x35mm panels to confirm fitment.
- Assess your daily power consumption to ensure 480W is sufficient for your needs.
- Consider the type of mounting brackets required for your specific installation surface (e.g., flat roof, curved roof).
- Familiarise yourself with basic solar wiring principles or consult an installer.
Please verify all specifications and compatibility requirements before purchase. Product details are based on manufacturer information and typical performance data. Actual performance may vary based on environmental conditions and installation.
