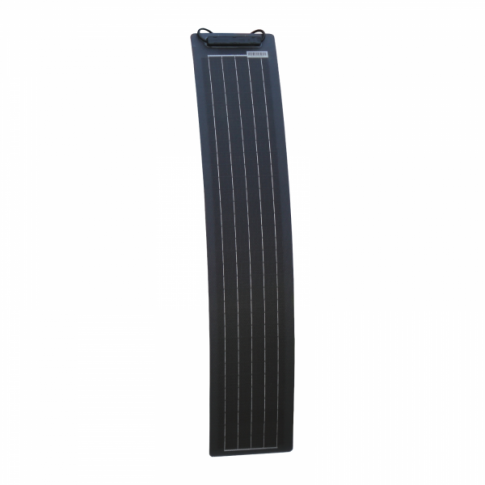

30W black ultra-narrow semi-flexible fibreglass solar panel with durable ETFE coating
30W black ultra-narrow semi-flexible fibreglass solar panel with durable ETFE coating
Couldn't load pickup availability
30W Ultra-Narrow Semi-Flexible Solar Panel
Fibreglass & ETFE Coated | Marine & Off-Grid Ready
Discover reliable, clean power for your adventures with the Photonic Universe 30W Ultra-Narrow Semi-Flexible Solar Panel. Engineered for supreme durability and designed to fit perfectly where space is limited, this discreet black panel provides effortless electricity for motorhomes, boats, and various off-grid applications. Its robust fibreglass construction and advanced ETFE coating ensure long-lasting performance, keeping you charged and ready wherever you are.
This versatile 30W solar panel is ideal for permanent outdoor use, offering free electricity for charging 12V batteries or directly powering compatible applications. Its unique ultra-narrow shape and high flexibility make it perfect for curved roofs and tight spaces, blending seamlessly with dark surfaces for an aesthetically pleasing installation.
IMPORTANT NOTE: This solar panel requires a solar charge controller for safe and efficient 12V battery charging.
Key Features
| ▶ Robust Fibreglass Construction — Ensures exceptional durability and a sturdy panel. |
| ▶ Ultra-Narrow Design (200mm) — Ideal for limited spaces or roofs with obstructions. |
| ▶ Advanced ETFE Coating — Reduces light reflection and enhances performance in low light. |
| ▶ Highly Flexible — Perfect for curved surfaces, allowing easy bonding or screw/bolt fixing. |
| ▶ Discreet All-Black Look — Blends seamlessly with dark roofs and vehicle surfaces. |
| ▶ Incredibly Light & Thin — Weighs 0.63kg and is 2mm thick, excellent for all vehicle types. |
| ▶ High Saltwater Resistance — Ensures suitability for marine and boat applications. |
| ▶ Sealed Waterproof Design — Guarantees reliable use in all weather conditions. |
| ▶ New Generation 5-Busbar Cells — More efficient, extracting greater power from a smaller area. |
| ▶ MC4 Connectors & Cables — Fitted with 1m cables (2.5mm²) and waterproof MC4 connectors for easy setup. |
Technical Specifications
| Parameter | Value |
|---|---|
| Peak Power (Pmax): | 30W |
| Maximum Power Voltage (Vmp): | 18.2V |
| Maximum Power Current (Imp): | 1.65A |
| Open Circuit Voltage (Voc): | 21.3V |
| Short Circuit Current (Isc): | 1.73A |

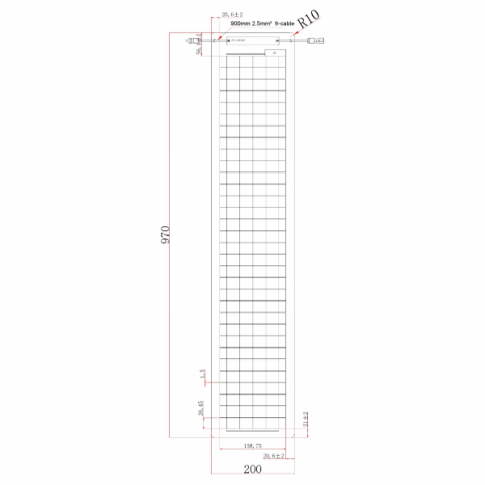

| Dimensions (L x W x T): | 970 x 200 x 2 mm |
| Weight: | 0.63 kg |
Operating & Power Guidance
This 30W semi-flexible solar panel is designed to provide efficient power for 12V systems. Its peak power voltage (Vmp) of 18.2V is suitable for charging 12V batteries when paired with an appropriate solar charge controller. The panel's 5-busbar solar cells are engineered for higher efficiency, allowing more power generation from a compact surface area, which is particularly beneficial in space-constrained applications.
The durable ETFE coating not only protects the panel but also features a lightly textured, anti-reflective surface. This design maximises light absorption from various angles, ensuring consistent performance even in challenging conditions such as low light, cloudy days, or when sunlight is at an angle (e.g., morning, evening, or winter months).
Connectivity is made simple with two 1-meter lengths of 2.5mm² solar cable, fitted with waterproof MC4 connectors. These allow for easy integration into existing solar setups, linking multiple panels, or connecting to extension cables for flexible system design.
Typical Applications
| Application | Description |
|---|---|
| Motorhomes & Caravans | Provides auxiliary power for charging leisure batteries and running onboard appliances. |
| Boats & Marine Vessels | Ideal for charging 12V marine batteries due to its saltwater resistance and flexible design for curved decks. |
| Off-Grid Systems | Suitable for small cabins, sheds, or remote monitoring equipment where grid power is unavailable. |
| Solar Lighting & Backup | Powers outdoor lighting systems or provides backup power for critical small loads. |
| Direct Power Supply | Can directly power applications not sensitive to voltage/current changes, such as electric motors or pumps. |
Durability & Weather Resistance
The Photonic Universe 30W semi-flexible solar panel is built for resilience. Its robust fibreglass plastic reinforcement provides a sturdy and highly durable structure. The advanced ETFE (Ethylene Tetrafluoroethylene) coating significantly extends the panel's service life compared to standard flexible panels, making it extremely hard-wearing and less prone to cracking, delamination, or corrosion over time. • With high saltwater resistance and a sealed waterproof design, this panel is engineered to perform reliably in all weather conditions and harsh marine environments.
Common Questions
Is a charge controller required for this solar panel?
Yes, for charging 12V batteries, a solar charge controller is essential. It regulates the voltage and current from the panel to prevent overcharging and protect your battery, ensuring optimal performance and longevity.
What are the advantages of the ETFE coating?
The ETFE coating offers superior durability, making the panel highly resistant to cracking, delamination, and corrosion. Its anti-reflective, textured surface also improves light absorption, leading to better performance in low light and cloudy conditions.
Can this panel be used on curved surfaces?
Absolutely. The panel's highly flexible design is specifically engineered for easy bonding to curved roofs and irregular surfaces, making it ideal for vehicles, boats, and other applications where rigid panels are unsuitable.
What makes this panel suitable for marine environments?
Its robust fibreglass construction, durable ETFE coating, high saltwater resistance, and sealed waterproof design ensure reliable and long-lasting performance even in harsh marine conditions.
Installation Notes
- Ensure the mounting surface is clean, dry, and free from debris before installation.
- For permanent installations, consider using a suitable adhesive for bonding or screws/bolts for mechanical fixing.
- Always connect the solar panel to a compatible solar charge controller before connecting to a battery.
- Position the panel to maximise sun exposure throughout the day, avoiding shaded areas for optimal output.
- Use appropriate waterproof cable entry glands when routing cables into vehicles or buildings to maintain seals.
Before You Buy
- Verify your system's voltage requirements; this panel is designed for 12V battery charging systems.
- Measure your available space to confirm the 970 x 200 x 2 mm dimensions are suitable for your application.
- Ensure you have a compatible solar charge controller for safe and efficient battery charging.
- Consider your average daily power needs to confirm 30W is sufficient for your intended use.
- Consult with a qualified installer if you are unsure about system design or installation procedures.
Always verify product specifications and compatibility with your existing system before purchase. Professional installation is recommended for optimal performance and safety. This product includes a 3-year workmanship warranty covering material and production defects.
