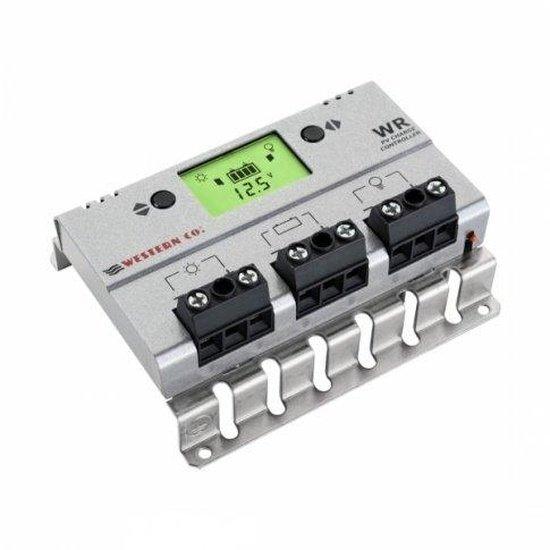

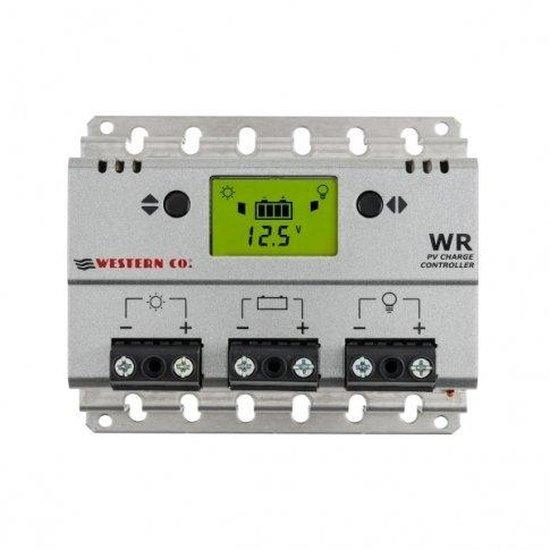

30A 12V/24V solar charge controller with LCD display for motorhomes, boats, lighting or off-grid solar systems

Power your motorhome, boat, or off-grid system with confidence. This 30A 12V/24V Solar Charge Controller is your key to efficient and reliable solar energy. Designed and crafted in Italy, it delivers top-tier performance and extends your battery's life. Enjoy steady power and peace of mind, no matter where your journey leads.

At its core, this controller uses advanced PWM (Pulse Width Modulation) technology. This smart system greatly improves how your battery takes a charge. It also works hard to extend your battery's overall lifespan. Plus, it can even help recover some lost battery capacity. This means more reliable power for longer periods.

Your safety and system health are paramount. This solar charge controller includes complete electronic protection. It guards your battery and entire solar setup from common electrical issues. You are fully protected against:

• Current back-flow
• Overcharge and over-discharge
• Overvoltage and overload
• Short circuits and reverse polarity

Monitoring your system is incredibly easy with the bright LCD display. It shows all vital information instantly. You'll see:

• Real-time power, voltage, and current for both your solar panels and battery
• An energy counter to track your consumption
• System temperature
• Load work status

This versatile controller works with various battery types. It has convenient pre-set programs for sealed AGM/gel and flooded lead-acid batteries. You can also easily adjust the low voltage battery protection. This ensures perfect care for your specific battery type.

Beyond just charging, this unit excels at load management. Its innovative load working modes are fully programmable. This lets you customize its function for many different uses. For example, set precise on/off timers for lights, fans, or pumps. It's perfect for automating your off-grid setup.

Connect your solar panels without worry! This controller supports a total solar panel power of up to 480W for 12V battery systems. For 24V battery systems, it handles an impressive 960W. The maximum input voltage is 55V. For best results, use solar panels with an operating voltage of 17V-20V (for 12V batteries) or 34V-40V (for 24V batteries).

Technical Specifications at a Glance:

• Fully automated operation with automatic 12V/24V system voltage selection
• Rated charging and load current: 30 Amps
• Enhanced monitoring and control over charging and load work
• Maximum solar panel input voltage: 55V
• Three pairs of robust terminals (input, battery, load) capable of handling wires up to 10mm²
• Built-in temperature sensor for optimal performance
• Comprehensive electronic protection functions for peace of mind
• Minimal self-consumption: just 8mA
• Wide operating temperature range: -10°C to +60°C
• Compact size: 15 x 12 x 5 cm
• Lightweight: only 500 grams
• Multiple mounting holes for easy installation

This high-quality product is 100% designed and made in Italy, ensuring adherence to the highest quality standards. It is also backed by a generous 5-year manufacturer warranty, providing long-term reliability.

Installation is straightforward. The controller includes a detailed instruction manual. This guide clearly explains all wiring and operational procedures, making setup simple. You'll find more information in the provided 'Documents' tab.

Choose a solar charge controller built for durability and performance. Its Italian engineering, extensive safety features, and smart battery management make it a top choice. The flexible load programming adds even more value. This 30A controller is the ideal solution for reliable, efficient, and worry-free power. Perfect for your motorhome, boat, or off-grid solar system. Secure your energy needs today, no matter where life takes you.
