100W 12V/24V folding solar panel without a solar charge controller
100W 12V/24V folding solar panel without a solar charge controller
Couldn't load pickup availability
100W Folding Solar Panel
Versatile 12V/24V Charging | Controller-Ready Design | SKU: SWD-FNC-100M

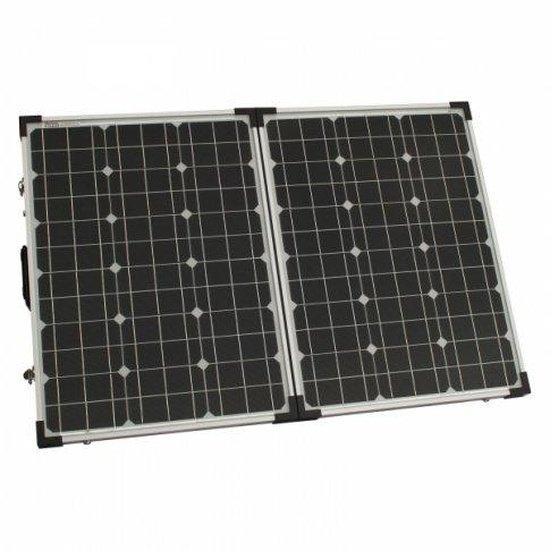

The Photonic Universe 100W Folding Solar Panel offers a flexible and portable solution for charging 12V or 24V battery systems in various off-grid applications. This high-efficiency monocrystalline solar panel is designed for ease of use, featuring a foldable structure that makes it ideal for mobile power needs, such as in caravans, motorhomes, boats, and remote setups.
Supplied without a solar charge controller, this panel provides the freedom to select a controller that best suits your specific battery type and system requirements. It comes complete with an adjustable aluminium stand, a 5-metre solar cable, and a protective storage case, ensuring you have everything needed for quick deployment and secure transport.
IMPORTANT NOTE: A solar charge controller is NOT included and is required for safe and efficient battery charging.
Key Features
| ▶ Portable Folding Design — Easy to transport and set up for mobile power needs. |
| ▶ 100W Monocrystalline Cells — High-efficiency power generation from quality solar cells. |
| ▶ 12V/24V System Compatibility — Flexible charging for various battery voltage requirements. |
| ▶ Controller-Ready — Allows custom selection of a solar charge controller for optimal system integration. |
| ▶ Durable & Waterproof — Constructed for outdoor use in all weather conditions. |
| ▶ Complete Accessories — Includes adjustable stand, 5m cable, and foam-lined protective case. |
| ▶ Expandable System — Can be connected with other similar folding panels for increased output. |
Technical Specifications
| Parameter | Value |
|---|---|
| Peak Power (Pmax) | 100W |
| Max Power Voltage (Vmp) | 17.5V DC |
| Max Power Current (Imp) | 5.70A |
| Open Circuit Voltage (Voc) | 21.6V DC |
| Short Circuit Current (Isc) | 6.2A |
| Power Allowance | +/- 3% |
| Cell Type | Monocrystalline |
| Cable Length | 5m (bare ends) |
| Dimensions (Folded) | 51 x 69 x 6 cm |
| Weight | 12kg |
Operating & Power Guidance
This 100W folding solar panel is designed to generate DC power from sunlight, which then needs to be regulated by a suitable solar charge controller before being fed into a battery. The panel's 17.5V maximum power voltage (Vmp) makes it compatible with both 12V and 24V battery systems when paired with an appropriate controller. For 24V battery banks, re-wiring the panel or using a buck-boost or MPPT charge controller is typically required.
The adjustable stand allows for optimal angling towards the sun, maximising energy harvest throughout the day. Its robust, waterproof construction ensures reliable performance in various outdoor environments, making it a dependable power source for portable and semi-permanent setups.
Typical Applications
| Application | Description |
|---|---|
| Caravans & Motorhomes | Provides supplementary power for leisure batteries, ideal for extended trips. |
| Boats & Marine | Charges 12V/24V service batteries on yachts, narrowboats, and other vessels. |
| Off-Grid Cabins & Sheds | Powers lighting, small appliances, and charging systems in remote locations. |
| Camping & Outdoor | Portable power for camping fridges, lights, and device charging during outdoor adventures. |
Durable Construction & Design Notes

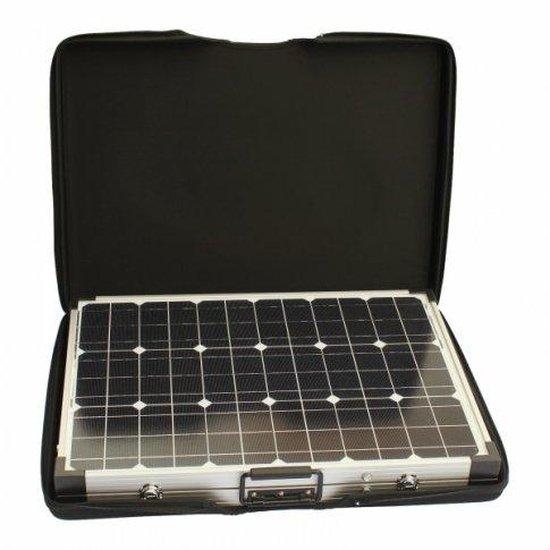

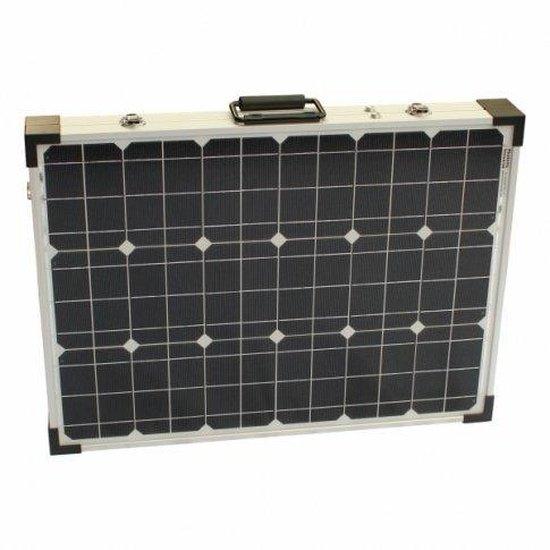

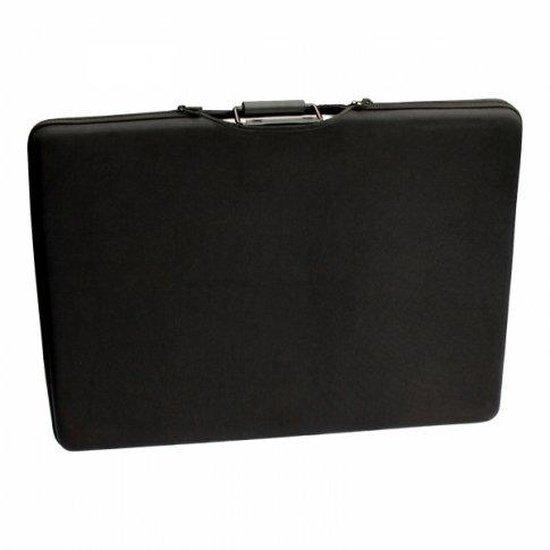

The Photonic Universe 100W folding solar panel features high-quality monocrystalline solar cells and is designed to be fully waterproof, making it suitable for use in all weather conditions. The robust aluminium frame includes a carrying handle and secure latches for easy transport and storage. Plastic corner protectors further reduce the risk of damage during handling. The included protective storage case is foam-lined, offering enhanced protection for the panel and frame.
Common Questions
Does this panel include a solar charge controller?
No, this 100W folding solar panel is supplied without a solar charge controller. This allows you to choose a controller that best fits your specific battery type and system requirements.
What type of batteries can this panel charge?
When paired with a suitable solar charge controller, this panel can charge 12V or 24V lead-acid batteries, including sealed, gel, and flooded types.
Can I connect multiple 100W folding panels together?
Yes, this folding panel can be easily connected to one or more similar folding panels to increase the overall energy yield. You would then connect the combined array through a larger, compatible solar charge controller.
Is the panel suitable for all weather conditions?
Yes, the Photonic Universe 100W folding solar panel is described as completely waterproof and suitable for use in all weather conditions.
Installation Notes
- Ensure a suitable solar charge controller is purchased separately and correctly wired between the panel and your battery.
- Position the panel in direct sunlight, adjusting the integrated stand for optimal angle to maximise power output.
- The 5m solar cable comes with bare ends, requiring appropriate connectors (e.g., Anderson Powerpole or SB50) for connection to your charge controller.
- For 24V battery systems, confirm your chosen charge controller is compatible or re-wire the panel as necessary.
- Always follow the safety guidelines provided with your chosen solar charge controller and battery system.
Before You Buy
- Charge Controller: This panel requires a separate solar charge controller. Ensure you select one compatible with 100W panels and your battery voltage (12V or 24V).
- Battery Type: Verify the compatibility of your battery type (e.g., lead-acid, gel, AGM, lithium) with your chosen solar charge controller.
- System Voltage: Confirm your system voltage (12V or 24V) and ensure all components, including the controller, are compatible.
- Power Needs: Assess your daily power consumption to ensure 100W is sufficient or if additional panels are required.
- Cable Connections: Be prepared to terminate the bare-ended solar cable with appropriate connectors for your system.
Always verify product specifications and compatibility with your existing solar system components before purchase. This product is covered by a 1-year workmanship warranty, and the solar cells are guaranteed by the manufacturer to produce at least 90% of nominal power after 10 years and 80% after 25 years.
