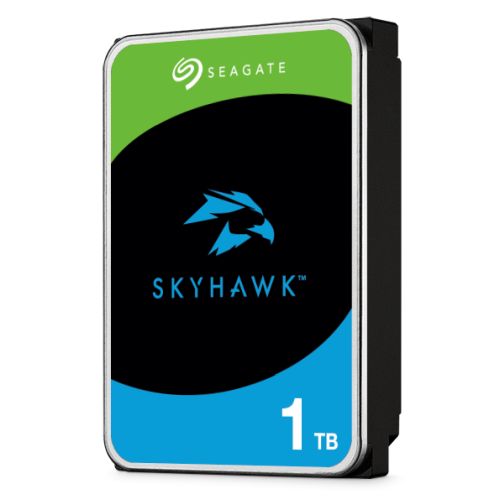

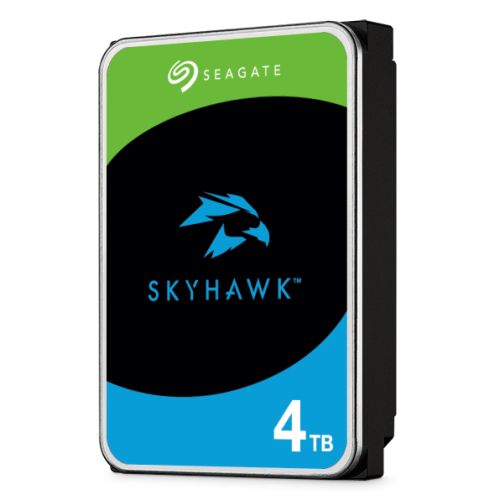

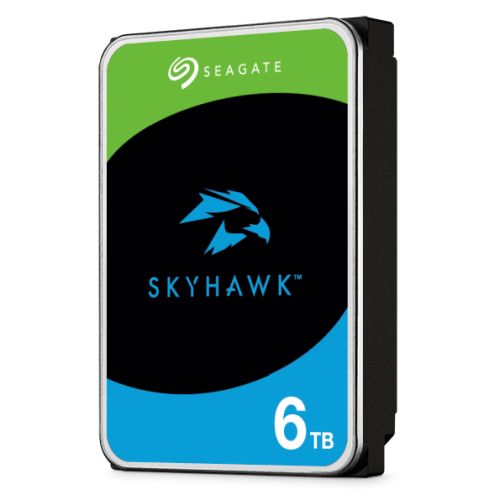

Seagate 3.5" SkyHawk Surveillance Hard Drive 8 Drive Bays Supported up to 8TB
Couldn't load pickup availability
- Built faster for video DVR and NVR security camera systems, SkyHawk delivers video-optimized storage.
- Support workloads of up to 180TB/year—that's 64 simultaneously streaming HD cameras with little to zero dropped frames.
- Quieter—with built-in RV sensors to allow drives to maintain performance in multi-bay systems, offering the flexibility to scale systems when more storage is needed.
- Efficient power consumption reduces heat emissions and improves reliability—plus, drives can easily be monitored with SkyHawk Health Management.
- Enjoy long-term peace of mind with 1M hours MTBF, an included three-year limited warranty, and three-year in-house Rescue Data Recovery Services.
Product Description
ImagePerfect™ firmware is designed to ensure seamless video footage capture in 24×7
surveillance workloads1 that record video from 64 HD cameras.
SkyHawk Health Management actively helps protect your surveillance storage by
focusing on prevention, intervention, and recovery options.2 Included is RAID
RapidRebuild™, which provides 3× faster volume rebuilds over traditional RAID rebuilds.
Unparalleled data protection with included 3-year Rescue Data Recovery Services plan,
helping protect important video data with Seagate's in-house data recovery services.
RV sensors built in allow drives to maintain performance in multi-bay systems, giving
customers the flexibility to scale their systems when more storage is needed.
ATA streaming support enables recordings from up to 64 HD cameras for smooth,
uninterrupted footage.
1 M hours MTBF, 3-year limited warranty represents an improved total cost of
ownership (TCO) with reduced maintenance costs.
Lower power consumption means a reduction in heat emissions, which improves
reliability in surveillance solutions. Tarnish-resistant components help protect drive from
environmental elements, increasing field reliability.
Specifications
|
|
8TB |
6TB |
4TB |
3TB |
2TB |
|
Standard Model Numbers with SRS |
ST8000VX010 |
ST6000VX009 |
ST4000VX016 |
ST3000VX015 |
ST2000VX017 |
|
SkyHawk™ Health Management Included |
Yes |
Yes |
Yes |
Yes |
Yes |
|
Interface |
SATA 6 Gb/s |
SATA 6 Gb/s |
SATA 6 Gb/s |
SATA 6 Gb/s |
SATA 6 Gb/s |
|
Recording Technology |
CMR |
CMR |
CMR |
CMR |
CMR |
|
Drive Design |
Air |
Air |
Air |
Air |
Air |
|
Features and Performance |
|
|
|
||
|
Drive Bays Supported |
Up to 16 |
Up to 16 |
Up to 16 |
Up to 8 |
Up to 8 |
|
Cameras Supported |
Up to 64 |
Up to 64 |
Up to 64 |
Up to 64 |
Up to 64 |
|
RV Sensors |
Yes |
Yes |
Yes |
- |
- |
|
Max Sustained Transfer Rate OD (MB/s) |
180MB/s |
180MB/s |
180MB/s |
180MB/s |
180MB/s |
|
Cache (MB) |
256MB |
256MB |
256MB |
256MB |
256MB |
|
Reliability/Data Integrity |
|
|
|
||
|
Tarnish Resistant |
Yes |
Yes |
Yes |
Yes |
Yes |
|
Load/Unload Cycles |
600,000 |
600,000 |
600,000 |
600,000 |
600,000 |
|
Non-recoverable Read Errors Rate, Max |
1 per 10E14 |
1 per 10E14 |
1 per 10E14 |
1 per 10E14 |
1 per 10E14 |
|
Power-On Hours per year |
8,760 |
8,760 |
8,760 |
8,760 |
8,760 |
|
Workload Rate Limit (WRL)1 |
180 |
180 |
180 |
180 |
180 |
|
Mean Time Between Failures (MTBF) (hours) |
1000000 hr |
1000000 hr |
1000000 hr |
1000000 hr |
1000000 hr |
|
Warranty, Limited (years)2 |
3 |
3 |
3 |
3 |
3 |
|
Rescue Data Recovery Services (years)3 |
3 |
3 |
3 |
3 |
3 |
|
Power Management |
|
|
|
||
|
Startup Current, Typical (12V, A) |
1.8 A |
1.8 A |
1.8 A |
1.8 A |
1.8 A |
|
Average Operating Power (W) |
5.3 W |
5.3 W |
3.7 W |
3.7 W |
3.7 W |
|
Idling Average (W) |
3.4 W |
3.4 W |
2.5 W |
2.5 W |
2.5 W |
|
Standby Mode/Sleep Mode, Typical (W) |
0.25 W |
0.25 W |
0.25 W |
0.25 W |
0.25 W |
|
Voltage Tolerance (5 V) |
±5% |
±5% |
±5% |
±5% |
±5% |
|
Voltage Tolerance (12 V) |
±10% |
±10% |
±10% |
±10% |
±10% |
